Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The rear wheel speed sensors and rings are integral with the hub and bearing assemblies.

If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT -- REAR FRONT W or WHEEL BEARING/HUB REPLACEMENT -- REAR DISC AN .

  1. Raise and support the vehicle on a suitable hoist. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the rear tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the rear wheel speed sensor electrical connector located next to the rear strut.

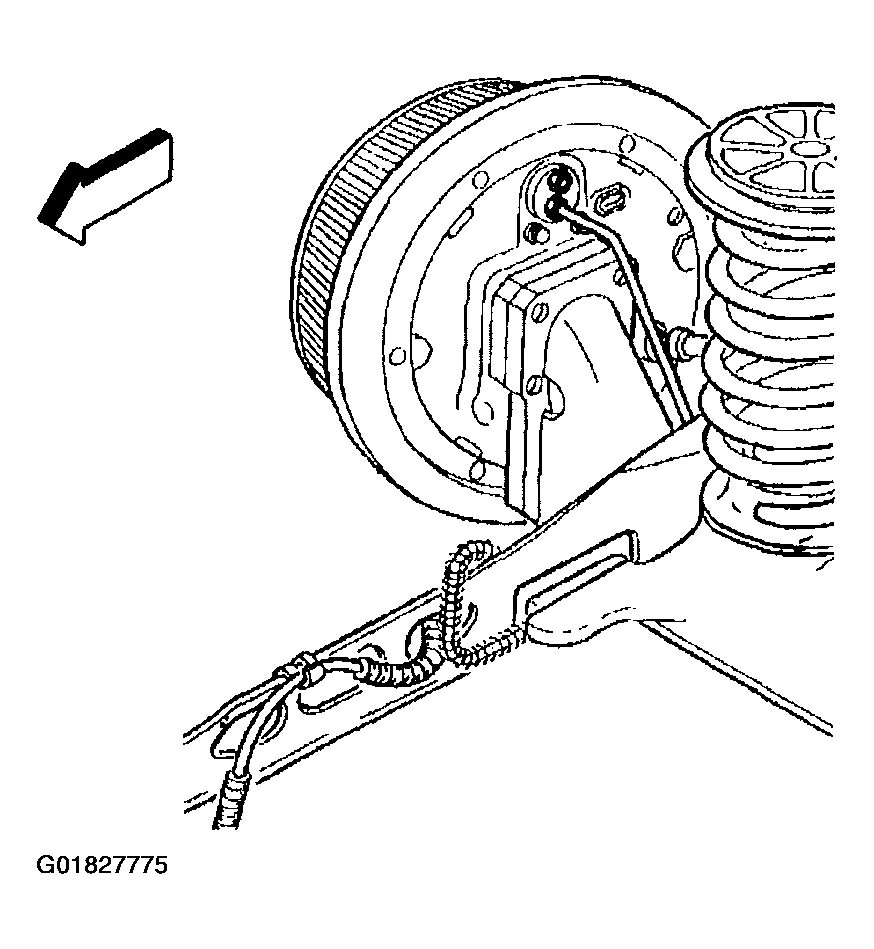

    Fig 1: Removing Rear Wheel Speed Sensor Electrical Connector
    G01827775Courtesy of GENERAL MOTORS CORP.
  4. Remove the hub and bearing assembly (1). Refer to WHEEL BEARING/HUB REPLACEMENT -- REAR FRONT W or WHEEL BEARING/HUB REPLACEMENT -- REAR DISC AN .

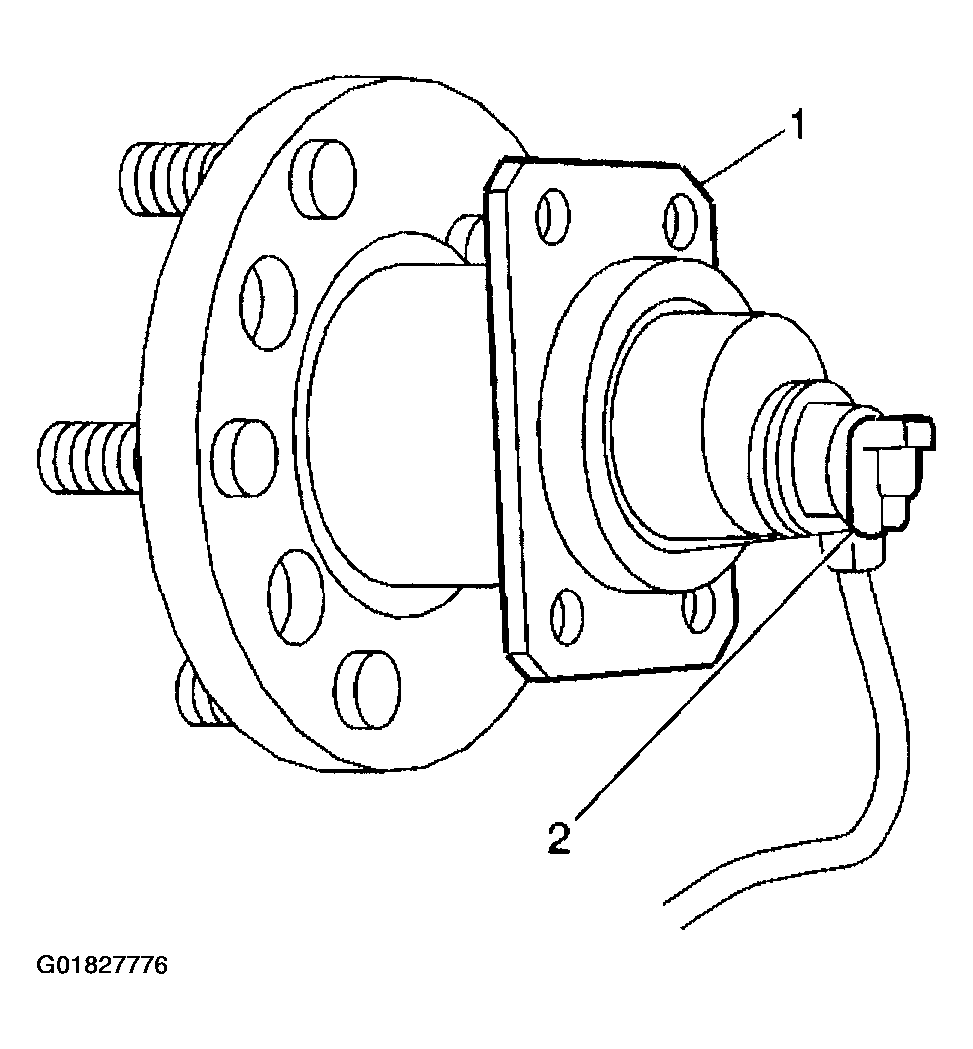

    Fig 2: Removing Hub & Bearing Assembly (Rear)
    G01827776Courtesy of GENERAL MOTORS CORP.
