Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Use the scan tool to check the normal state of the Traction Off indicator control.
  2. 3. Ensures that the instrument cluster can operate the Traction Off indicator.

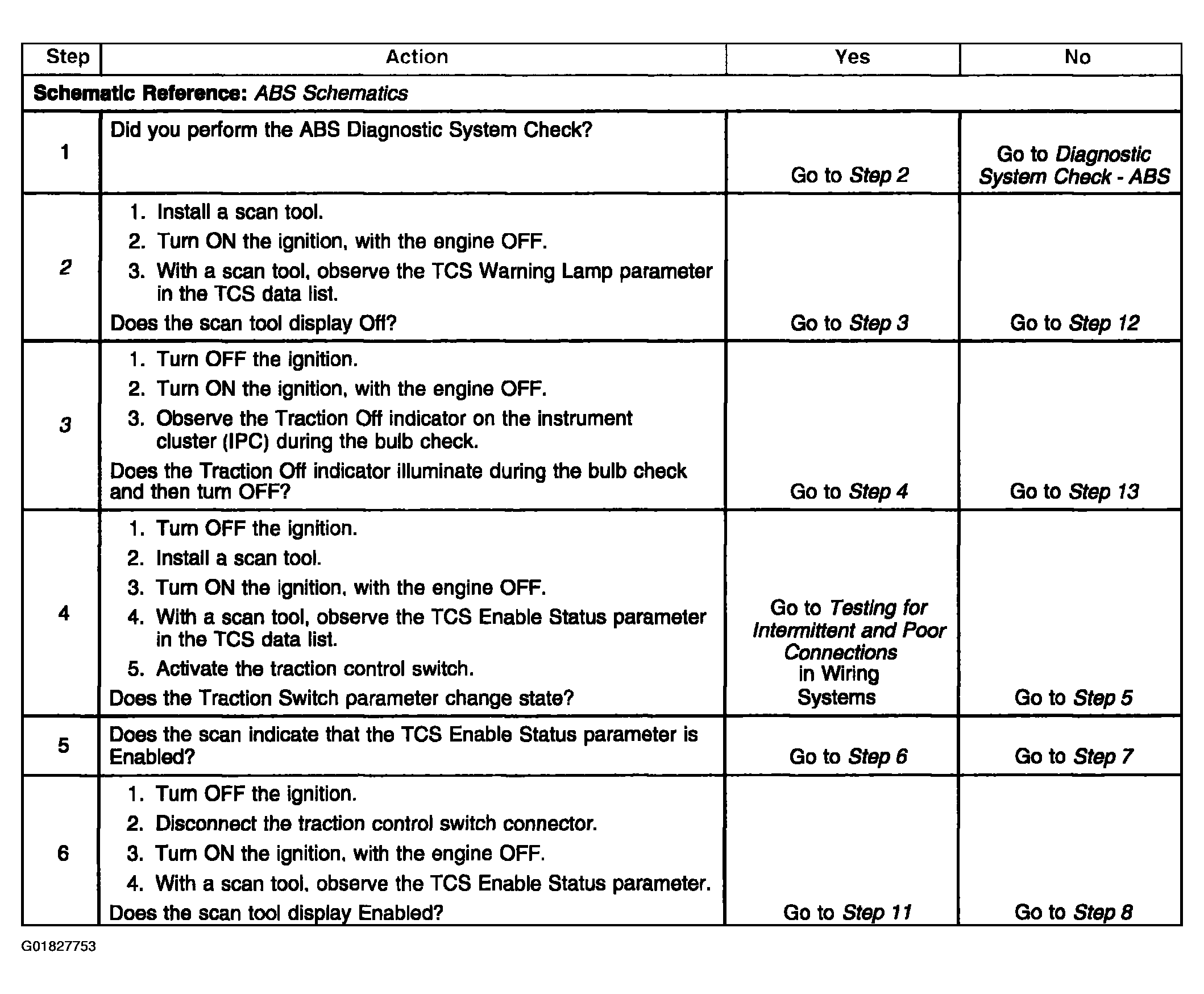

    Fig 1: Traction Off Indicator Inoperative (1 Of 2)
    G01827753Courtesy of GENERAL MOTORS CORP.

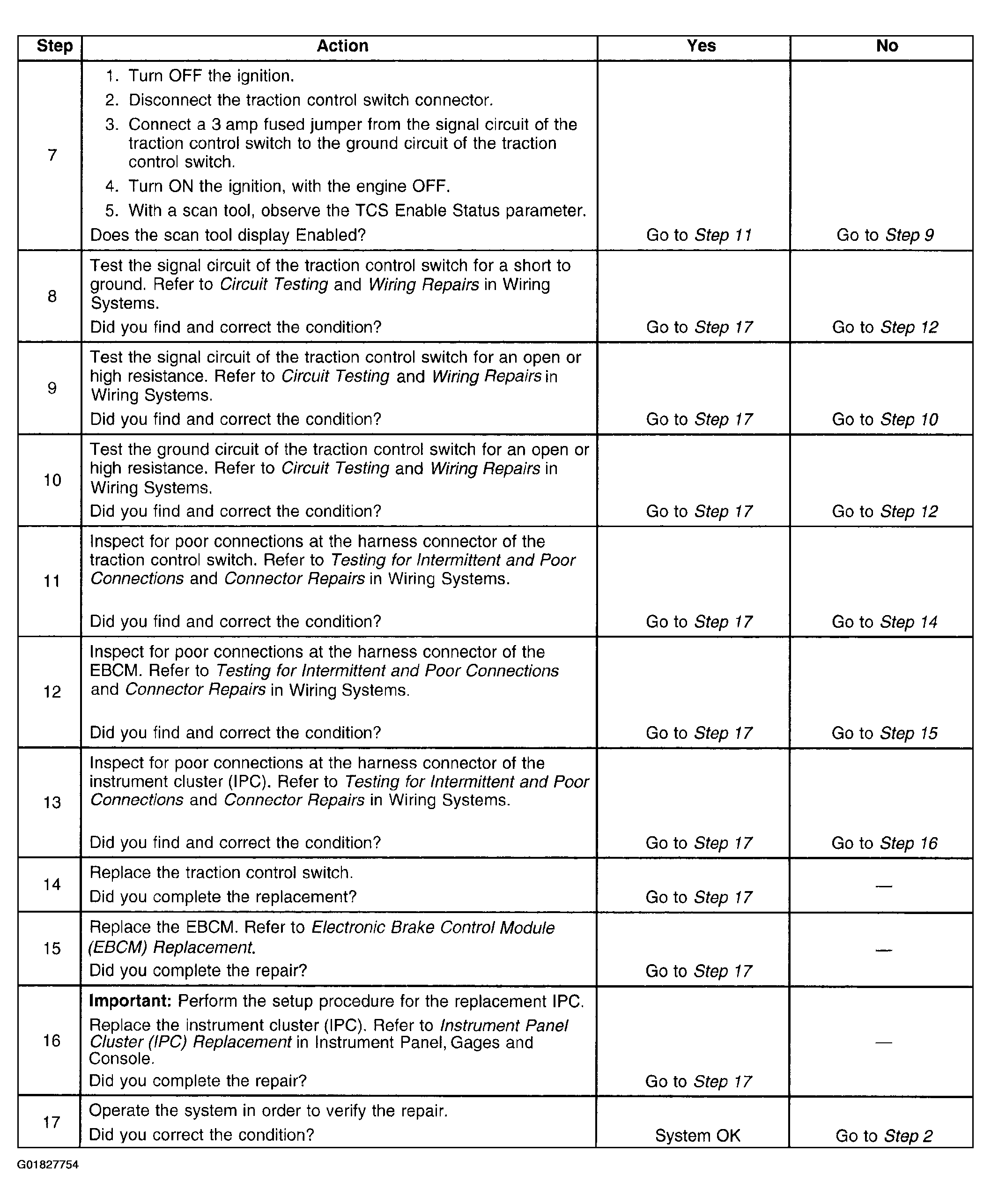

    Fig 2: Traction Off Indicator Inoperative (2 Of 2)
    G01827754Courtesy of GENERAL MOTORS CORP.
