Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

3. This DTC detects an open stop lamp switch signal circuit from the stop lamp side of the splice pack to the EBCM.
4. The EBCM sources 5 volts on the stop lamp switch signal circuit. This small voltage has a ground path through the stop lamp bulbs. This DTC sets if the path to ground is open.

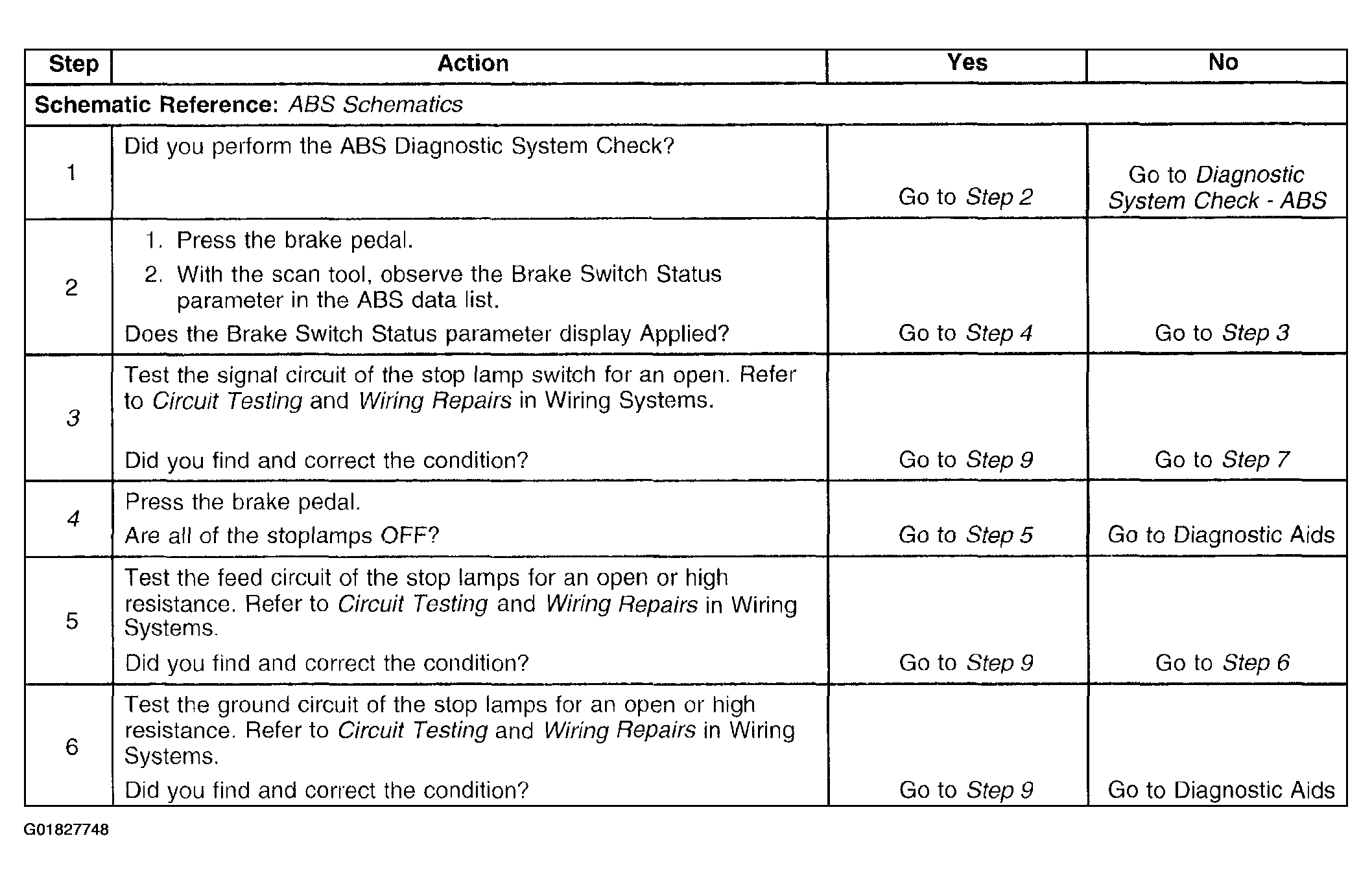

Fig 1: DTC C1295 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

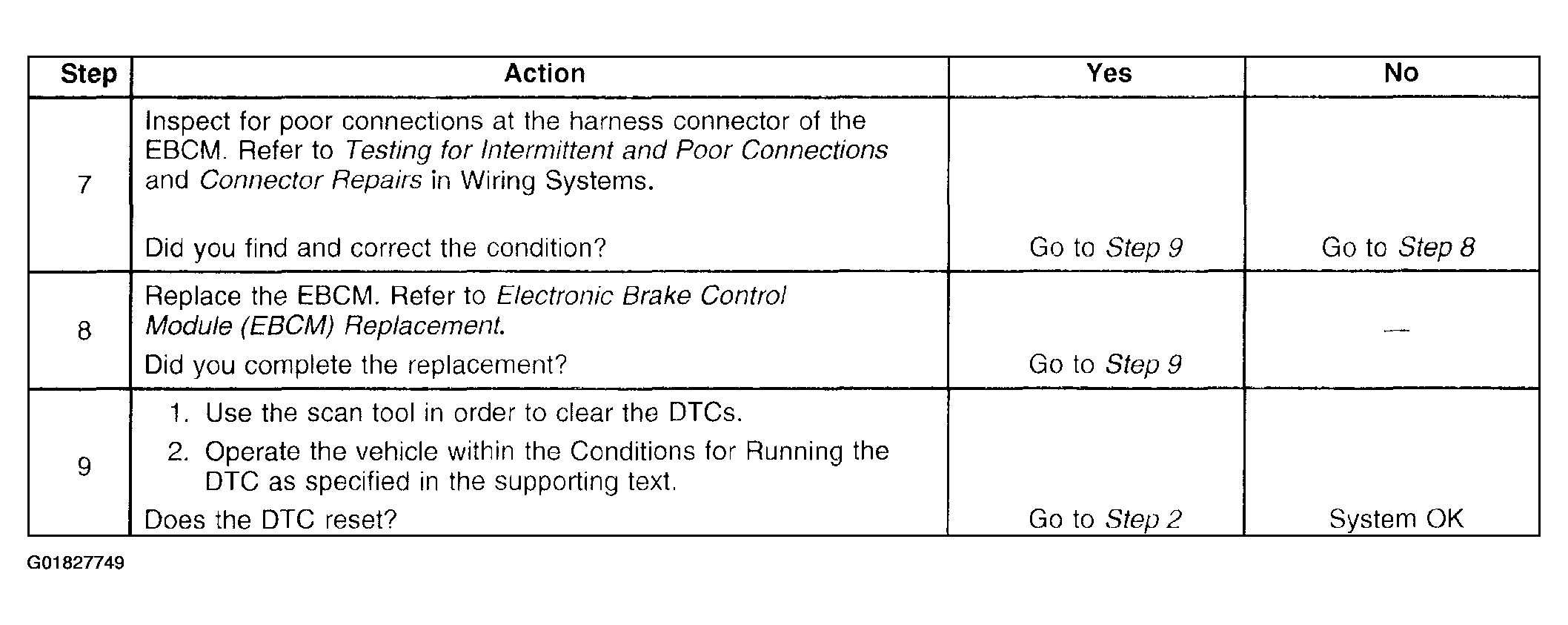

Fig 2: DTC C1295 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
