Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3. Tests the pump motor circuits of the BPMV for a short to the housing of the BPMV.

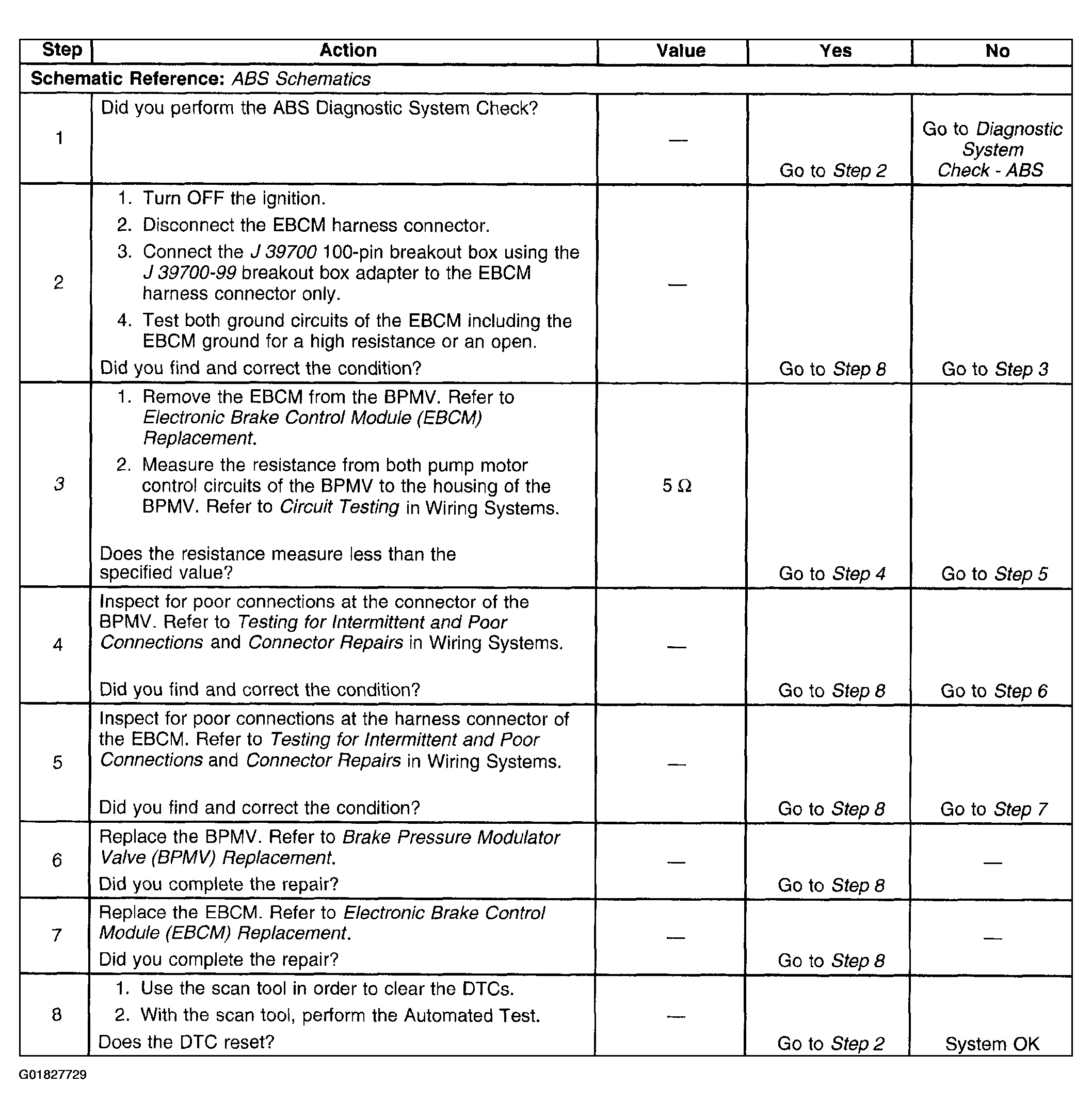

    Fig 1: DTC C1217
    G01827729Courtesy of GENERAL MOTORS CORP.
