Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. Use the scan tool to check the normal state of the ABS indicator control circuit.
  2. 4. Ensures that the instrument panel cluster (IPC) can operate the ABS indicator.

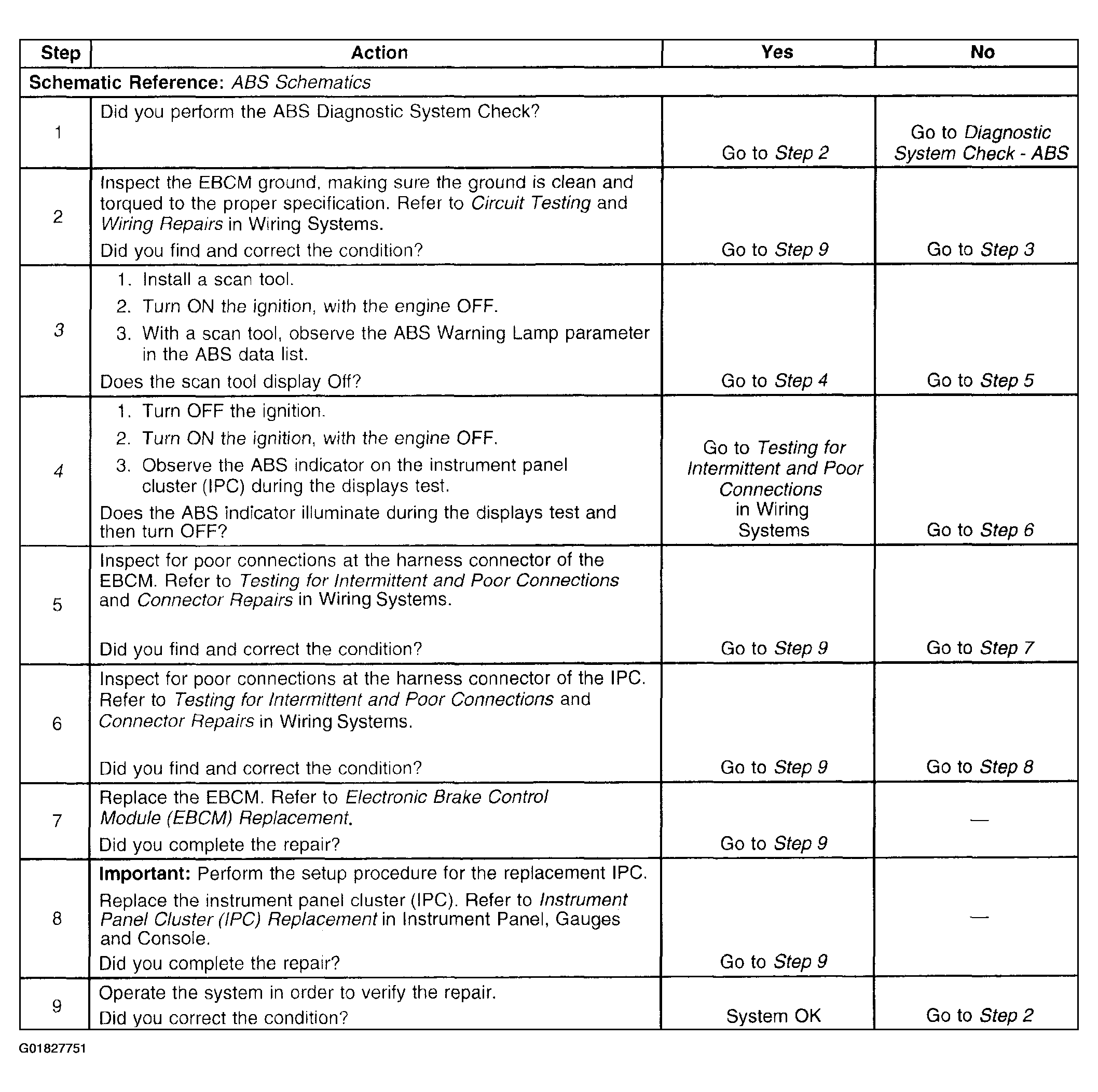

    Fig 1: ABS Indicator Inoperative
    G01827751Courtesy of GENERAL MOTORS CORP.
