Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the carpet retainers. Refer to CARPET RETAINER REPLACEMENT - FRONT in Interior Trim.
  3. Remove the front door weatherstrip by pulling it off the pinch-weld flange.

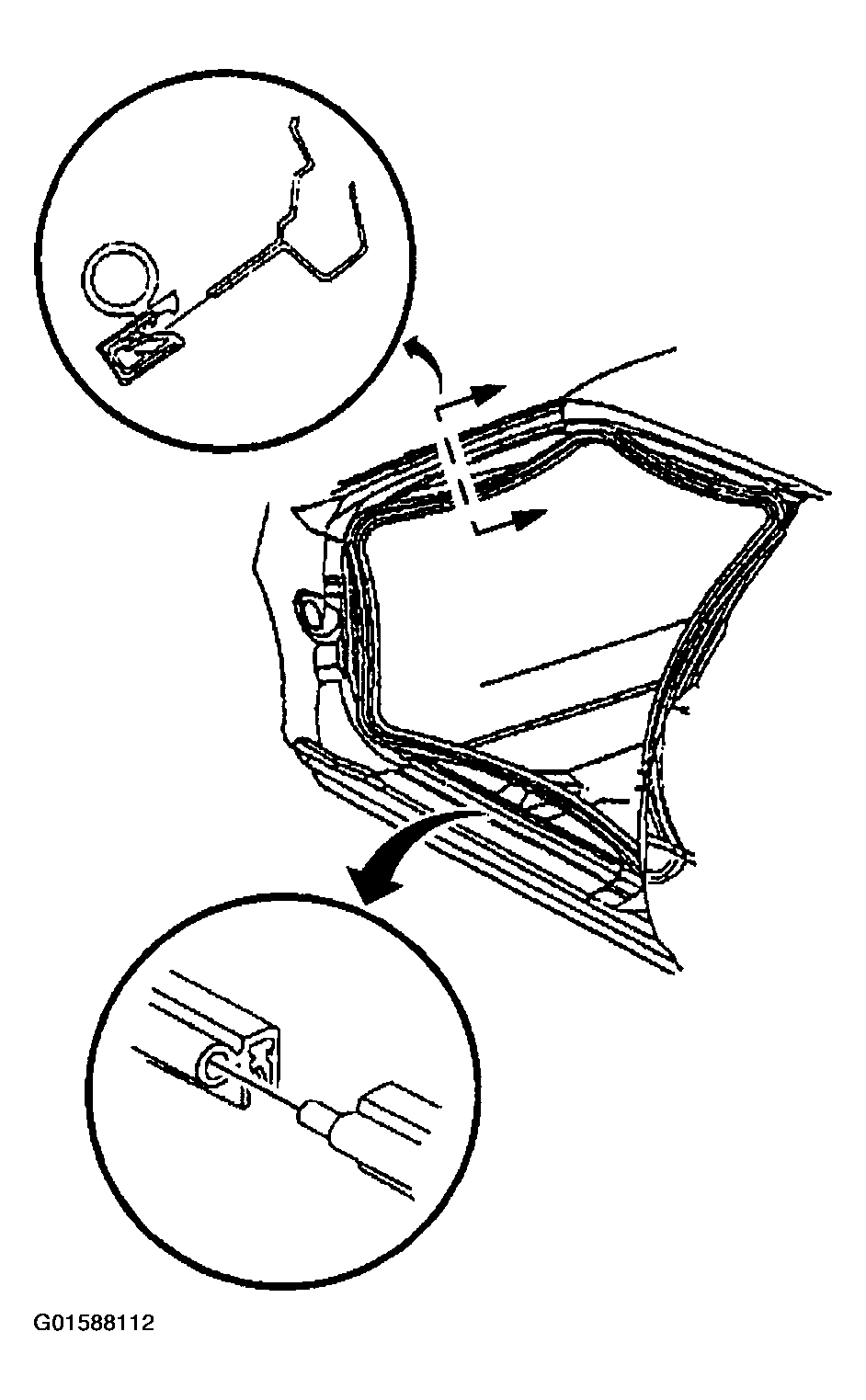

    4. Fig 1: Removing Front Door Opening Weatherstrip
    G01588112Courtesy of GENERAL MOTORS CORP.
