Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper (Oldsmobile)  or Fascia Replacement - Rear Bumper (Pontiac) .
  2. Use the J 38778  Door Trim Pad and Garnish Clip Remover in order to remove the push-in retainers from the front energy absorber.
  3. Remove the energy absorber from the rear impact bar.
  4. Remove the impact bar bolts from the frame rail.
  5. Remove the rear impact bar from the frame rail.

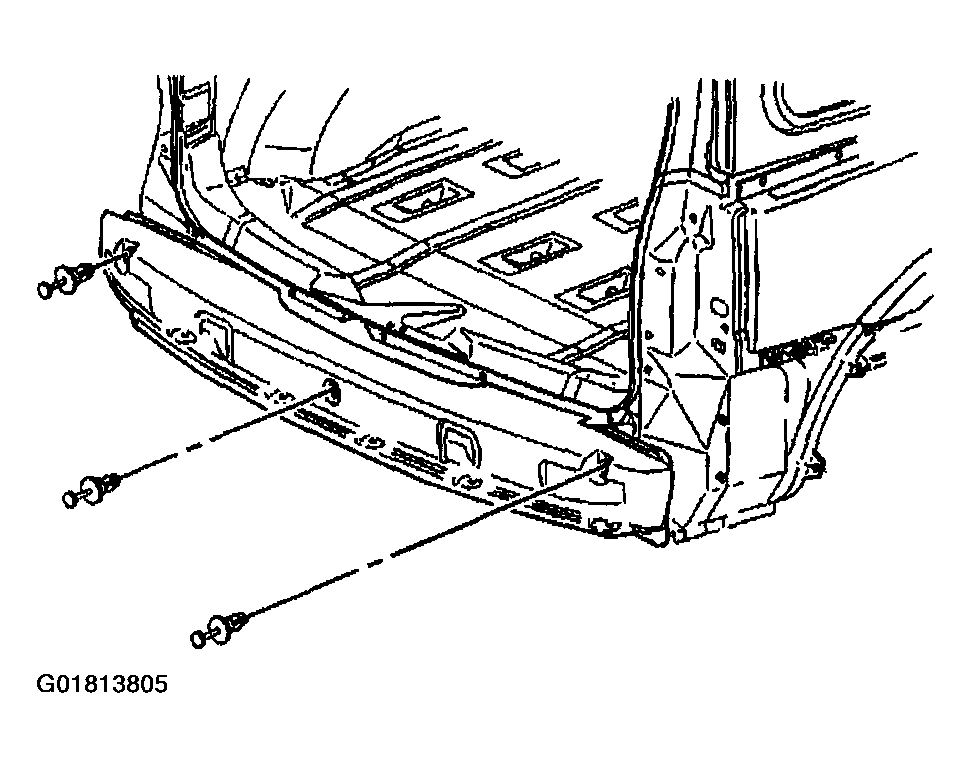

    Fig 1: Removing Impact Bar Bolts & Frame Rail
    G01813805Courtesy of GENERAL MOTORS CORP.
