Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

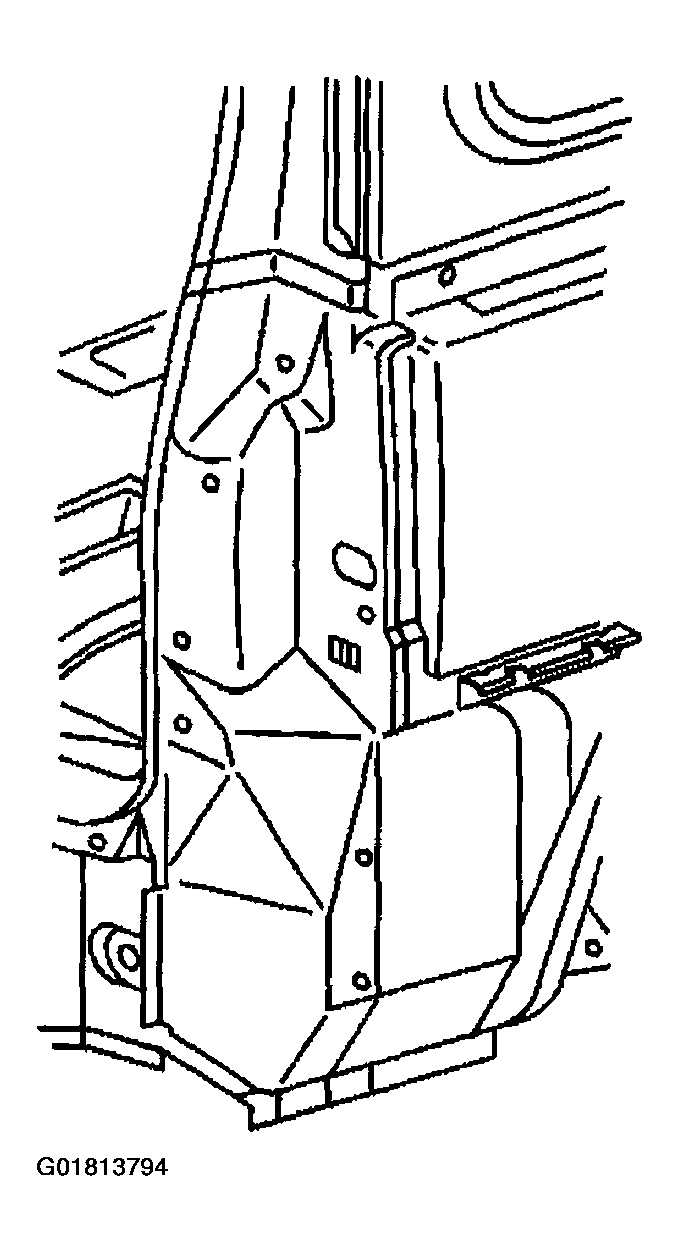

Fig 1: Rear Bumper Fascia & Outer Support (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Align the rear bumper fascia to the rear bumper fascia outer support.
Align the rear bumper fascia outer retainer to the body.

Fig 2: Rear Bumper Fascia Outer Retainer (Pontiac)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the palnut to the rear bumper fascia outer retainer.
Tighten

Tighten the palnut to 2 N.m (18 lb in).
Install the push-in retainers to the upper and lower rear bumper fascia.

Fig 3: Push-In Retainers Upper/Lower Rear Bumper Fascia (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Install the screws at the right and left wheel well to the rear bumper fascia.
Tighten

Tighten the rear bumper fascia wheel well screws to 3 N.m (26 lb in).
Install the rear bumper fascia reflectors. Refer to Fascia Reflector Replacement - Rear Bumper .

Fig 4: Installing Rear Bumper Fascia Reflectors (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Close the lift gate.
