Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the lift gate.
  2. Remove the rear bumper fascia splash shield. Refer to Splash Shield Replacement - Rear Bumper Fascia .
  3. Use the J 38778  in order to remove the push-in retainers from the upper and lower rear bumper fascia.
  4. Remove the screws at the right and left wheel well from the rear bumper fascia.
  5. Remove the paint from the rear bumper fascia outer retainer.
  6. Remove the rear bumper fascia from the vehicle.

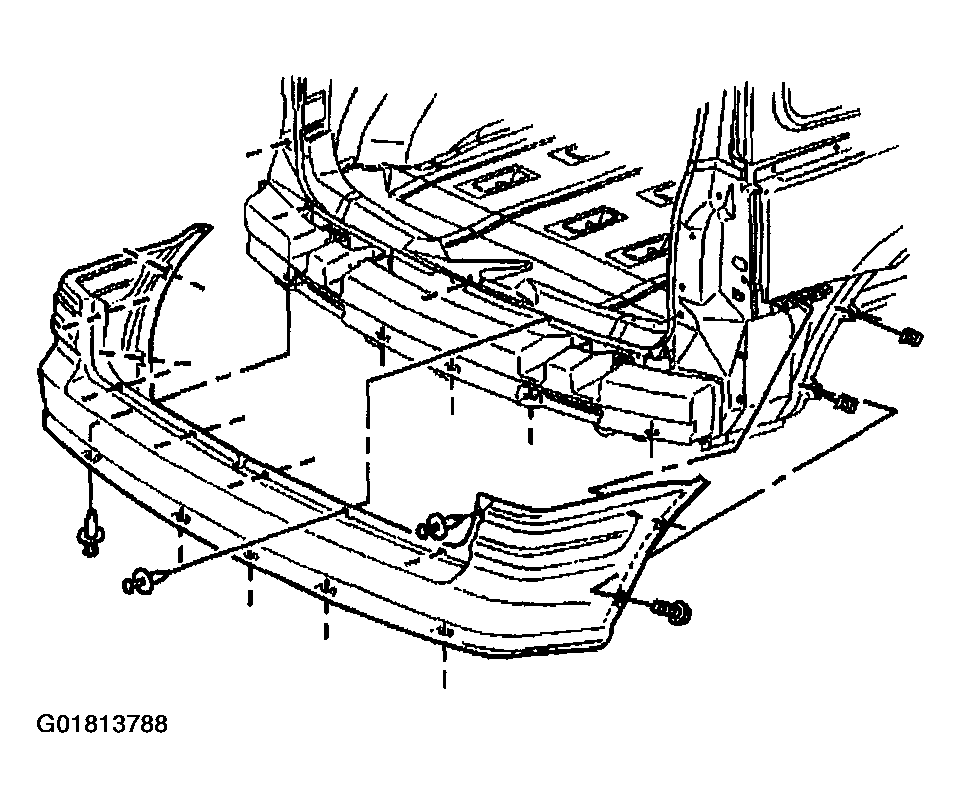

    Fig 1: Removing Screws At Right/Left Wheel Well & Rear Bumper Fascia (Oldsmobile)
    G01813788Courtesy of GENERAL MOTORS CORP.
