Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear bumper fascia to the rear bumper fascia outer support.

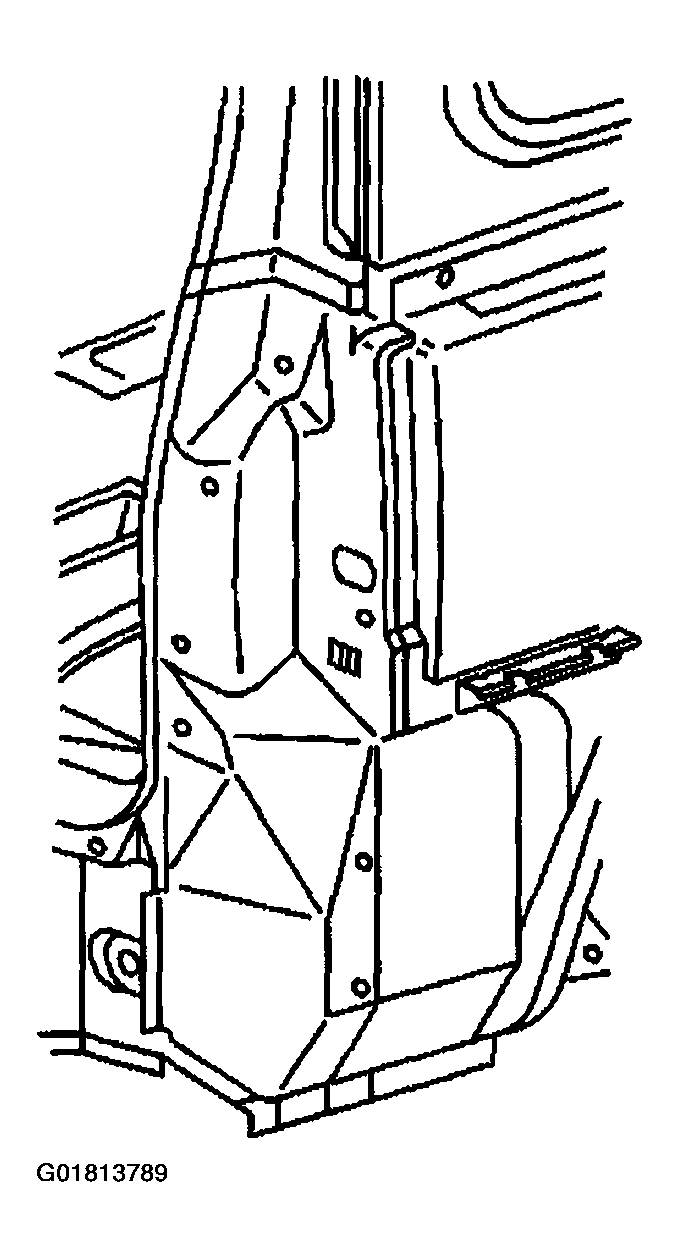

    Fig 1: Rear Bumper Fascia & Outer Support (Oldsmobile)
    G01813789Courtesy of GENERAL MOTORS CORP.
  2. Align the rear bumper fascia outer retainer to the body.
    Fig 2: Rear Bumper Fascia Outer Retainer (Oldsmobile)
    G01813790Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the palnut to the rear bumper fascia outer retainer.

    Tighten

    Tighten the palnut to 2 N.m (18 lb in).

  4. Install the screws at the right and left wheel well to the rear bumper fascia.

    Tighten

    Tighten the screws to 3 N.m (26 lb in).

  5. Install the push-in retainers to the upper and lower rear bumper fascia.
  6. Install the rear bumper fascia splash shield. Refer to Splash Shield Replacement - Rear Bumper Fascia .
  7. Close the lift gate.

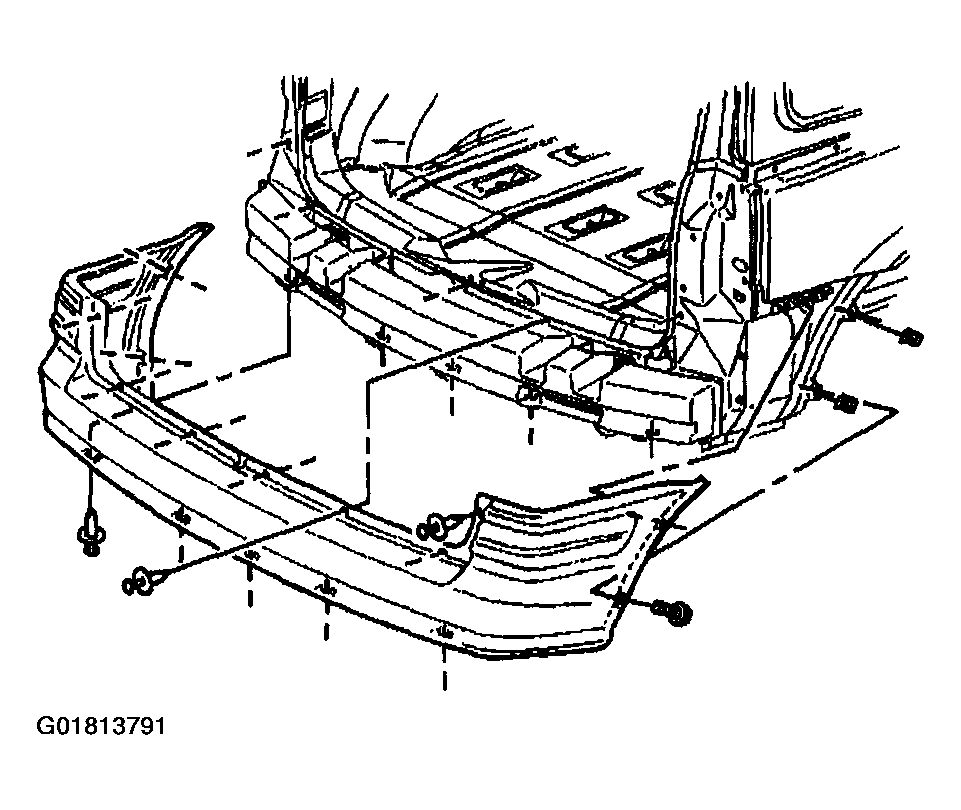

    Fig 3: Installing Screws At Right/Left Wheel Well & Rear Bumper Fascia (Oldsmobile)
    G01813791Courtesy of GENERAL MOTORS CORP.
