Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the front bumper to the front impact bar and to the body.
  2. Install the push-in retainers to the upper and lower front bumper fascia.
  3. Install the front park/turn signal/sidemarker lamp. Refer to PARK/TURN SIGNAL/SIDE MARKER LAMP REPLACEMENT .
  4. Install the right and left front fender liner. Refer to FENDER LINER REPLACEMENT .
  5. Install both of the front tire and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  6. Lower the vehicle.

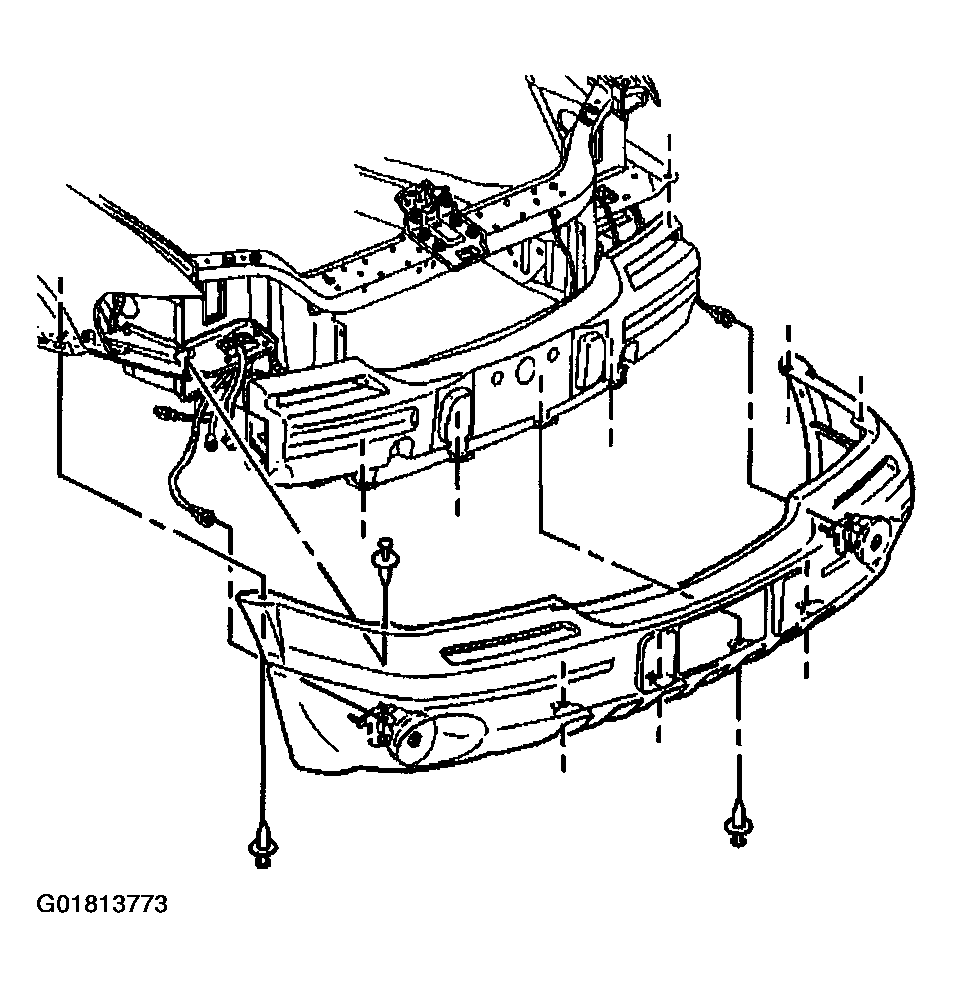

    Fig 1: Installing Push-In Retainers From Upper & Lower Front Bumper Fascia (Pontiac)
    G01813773Courtesy of GENERAL MOTORS CORP.
