Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper (Oldsmobile)  or Fascia Replacement - Rear Bumper (Pontiac) .
  2. Remove the rear object sensor wiring harness from the rear energy absorber, if equipped.
  3. Remove the rear energy absorber from the rear bumper fascia by pushing in on the locking tabs at the center of the rear bumper fascia and pulling out.

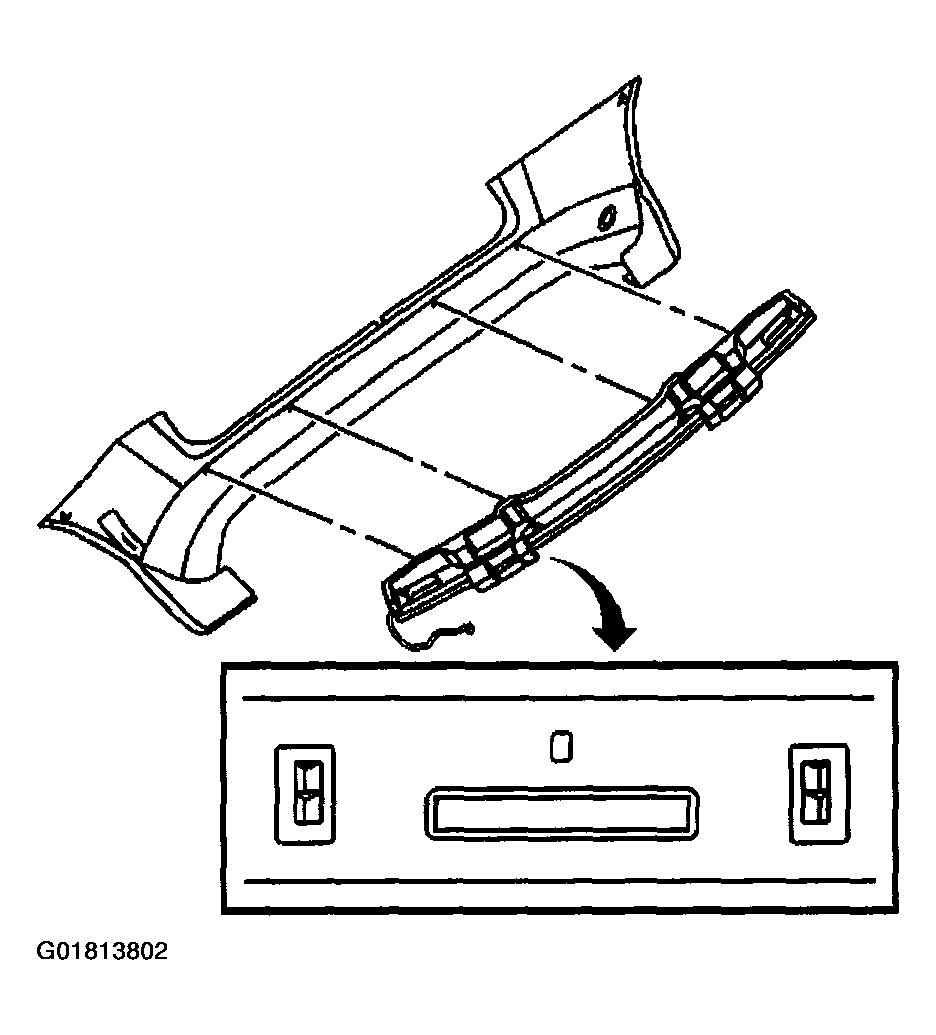

    Fig 1: Removing Rear Energy Absorber, Rear Bumper Fascia & Screws
    G01813802Courtesy of GENERAL MOTORS CORP.
