Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

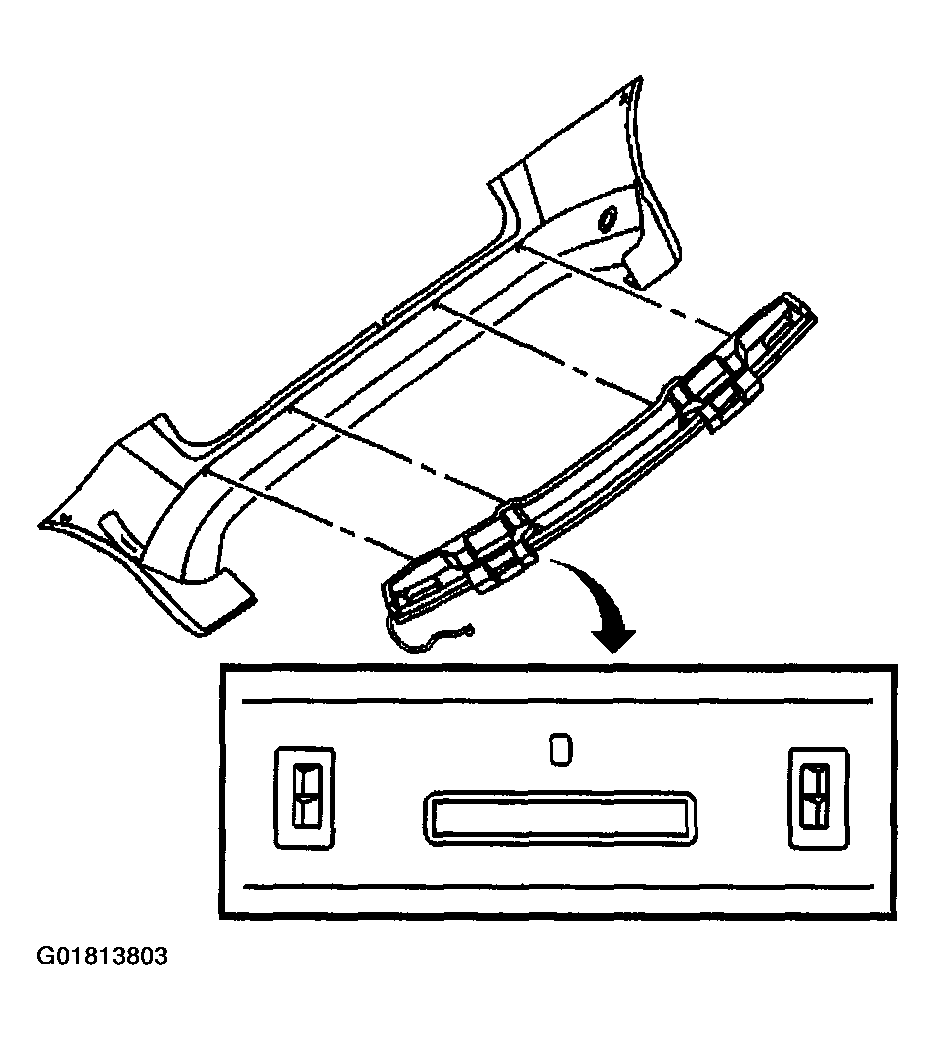

Fig 1: Installing Rear Energy Absorber, Rear Bumper Fascia & Screws
G01813803Courtesy of GENERAL MOTORS CORP.
  1. Align the rear energy absorber to the rear bumper fascia and push in to lock into place.
  2. Install the rear object sensor wiring harness to the rear energy absorber, if equipped.
  3. Install the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper (Oldsmobile)  or Fascia Replacement - Rear Bumper (Pontiac) .
