Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door molding. Refer to Molding Replacement - Door Body Side .
  2. Use a J 25070  to heat the upper edge of the molding retainer. Use a circular motion 152 mm (6 in) from the retainer for 30 seconds.
    NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
  3. Use a plastic flat-bladed tool to remove the retainer from the outer door panel.

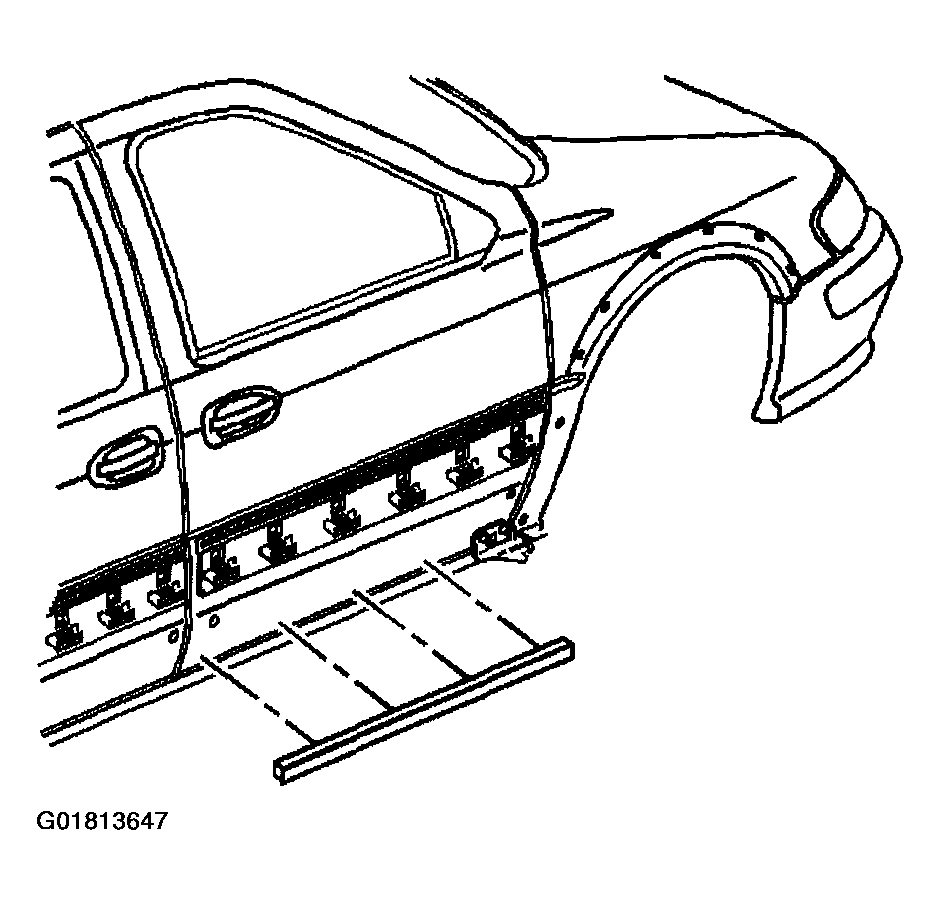

    Fig 1: Removing Side Door Molding
    G01813647Courtesy of GENERAL MOTORS CORP.
