Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the molding retainer is approximately room temperature 22°C (72°F).
  2. Use isopropyl alcohol to clean the area of the outer door panel where the molding retainer will be installed.

    Important:  Do NOT touch the adhesive backing.

  3. Remove the protective liner from the back of the retainer.
  4. Align the retainer to the rear bottom corner and the lower edge of the outer door panel.
  5. Press the retainer to the outer door panel until fully seated.
  6. Install the side door molding. Refer to Molding Replacement - Door Body Side .

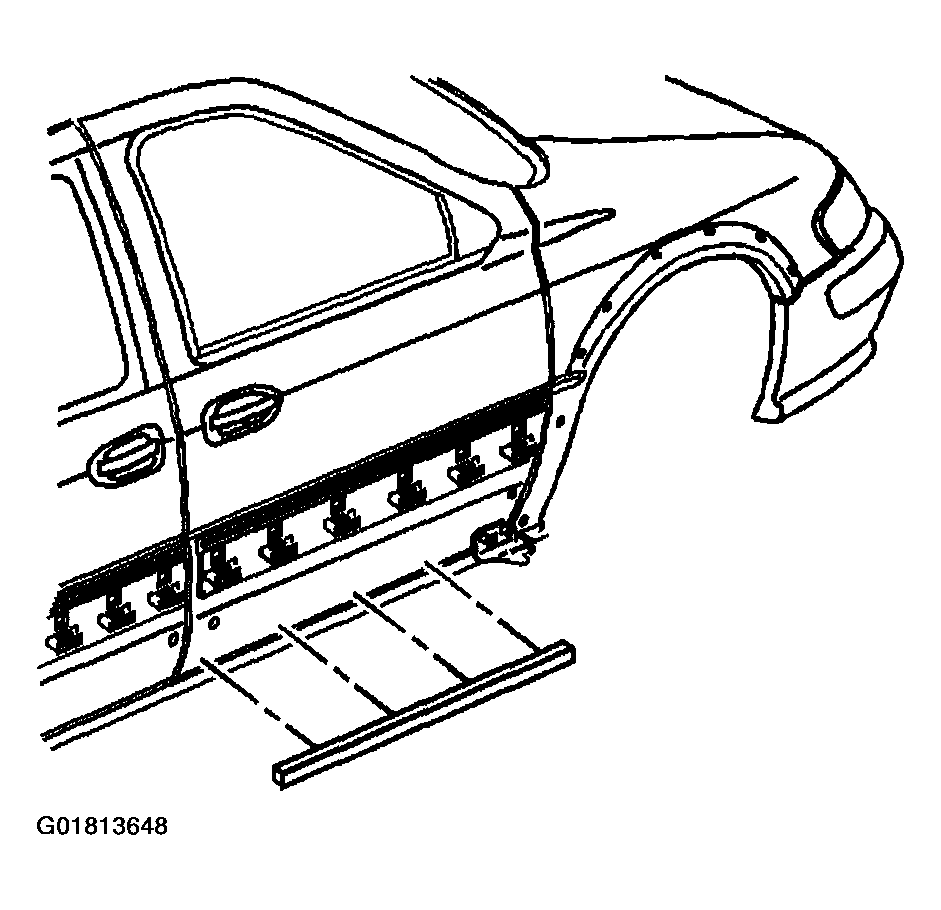

    Fig 1: Installing Side Door Molding
    G01813648Courtesy of GENERAL MOTORS CORP.
