Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Open the side doors.
Partially remove the weatherstrip from the roof drip rail, by pulling it from the flange.

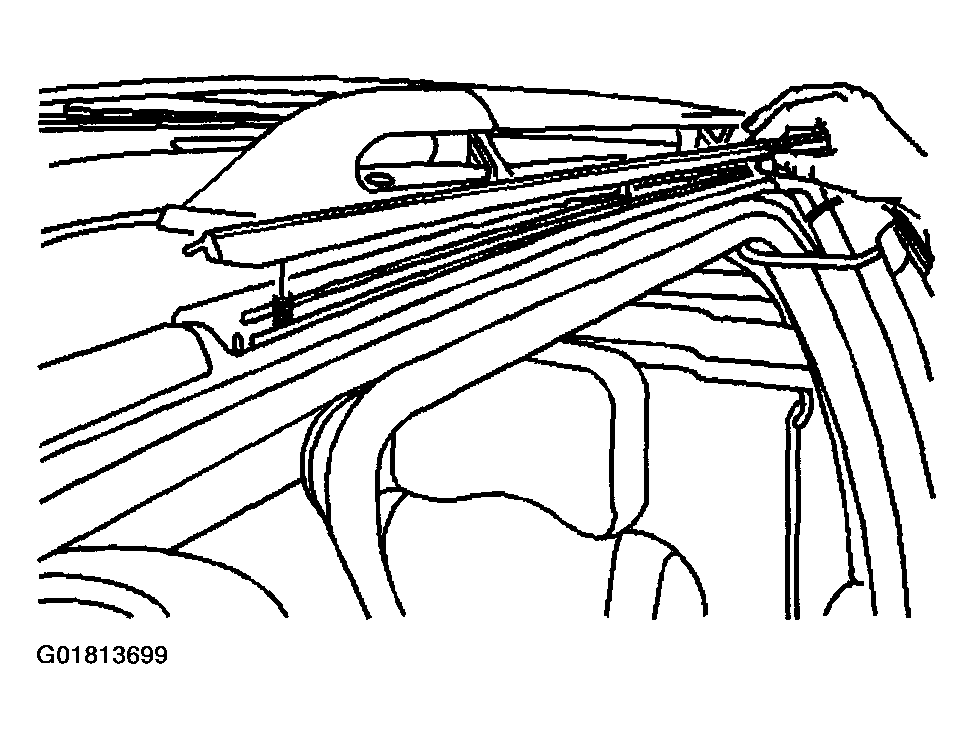

Fig 1: Removing Weatherstrip From Roof Drip Rail
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
Remove the weld joint molding from the roof studs using a flat-bladed tool.

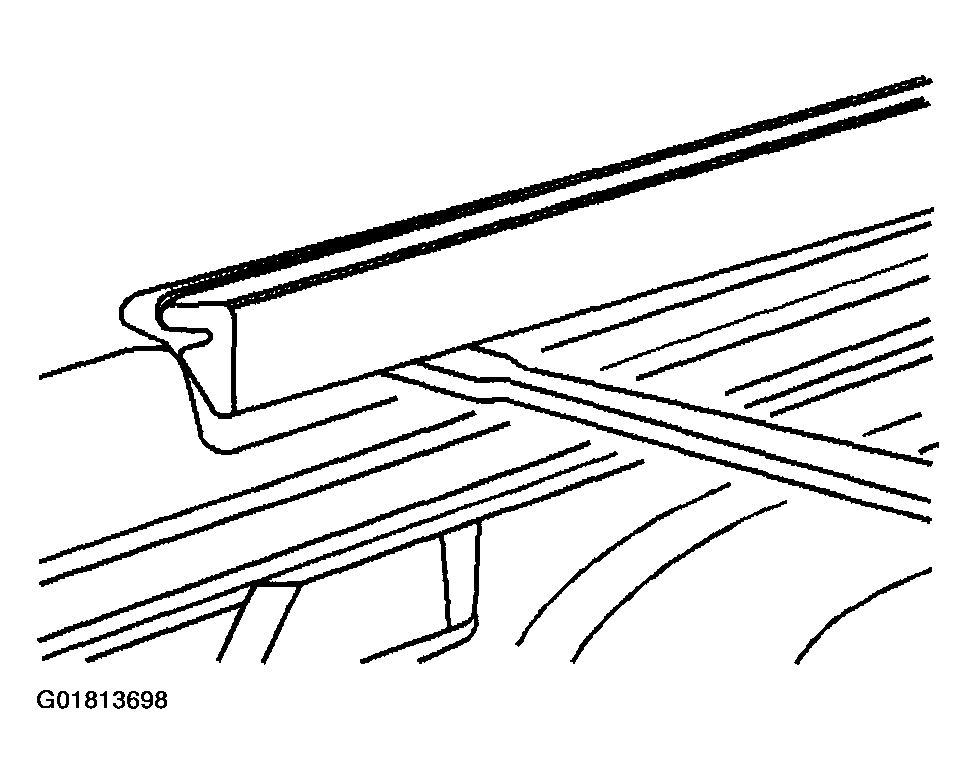

Fig 2: Removing Weld Joint Molding From Roof Studs Using A Flat-Bladed Tool
Courtesy of GENERAL MOTORS CORP.
Remove the weld joint molding from the roof.

Fig 3: Removing Weld Joint Molding From Roof
Courtesy of GENERAL MOTORS CORP.
Remove the insulators from the weld joint molding, if necessary.

Fig 4: Removing Insulators From Weld Joint Molding
Courtesy of GENERAL MOTORS CORP.
Remove the weld joint molding retainers from the weld joint molding using a flat-bladed tool, if necessary.

Fig 5: Removing Weld Joint Molding Retainers From Weld Joint Molding Using A Flat-Bladed Tool

Courtesy of GENERAL MOTORS CORP.
