Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the weld joint molding retainers to the weld joint molding, pressing until fully seated.

Fig 1: Installing Weld Joint Molding Retainers To Weld Joint Molding Using A Flat-Bladed Tool
Courtesy of GENERAL MOTORS CORP.
Install the insulators to the weld joint molding, if removed.

Fig 2: Installing Insulators From Weld Joint Molding
Courtesy of GENERAL MOTORS CORP.
Position the weld joint molding to the roof.

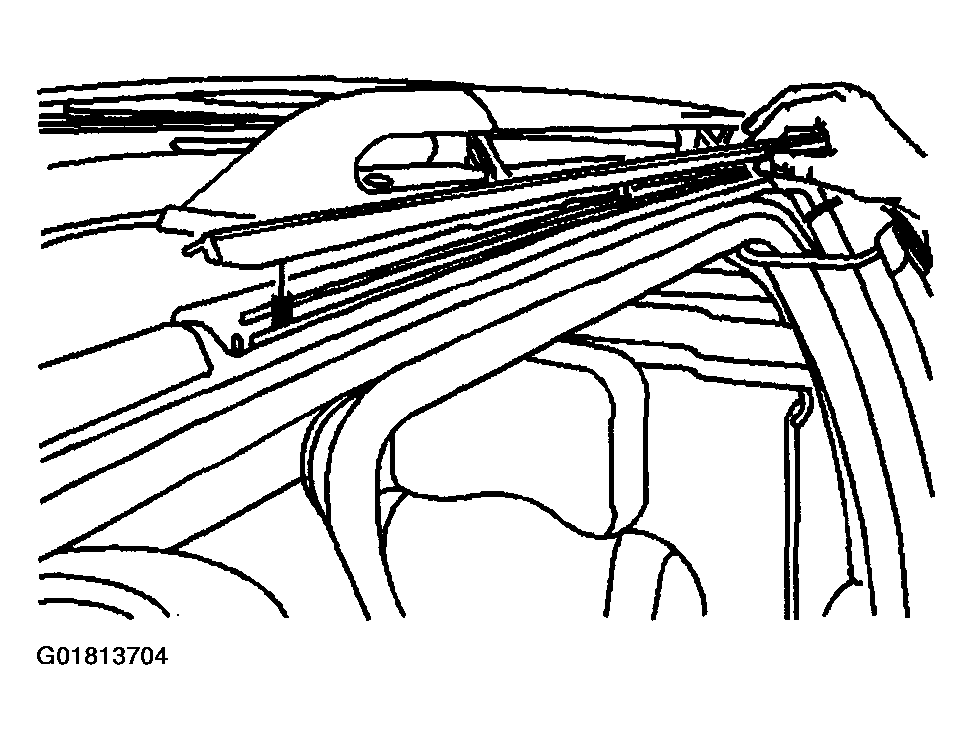

Fig 3: Installing Weld Joint Molding To Roof
Courtesy of GENERAL MOTORS CORP.
Press the weld joint molding onto the roof studs, until fully seated.

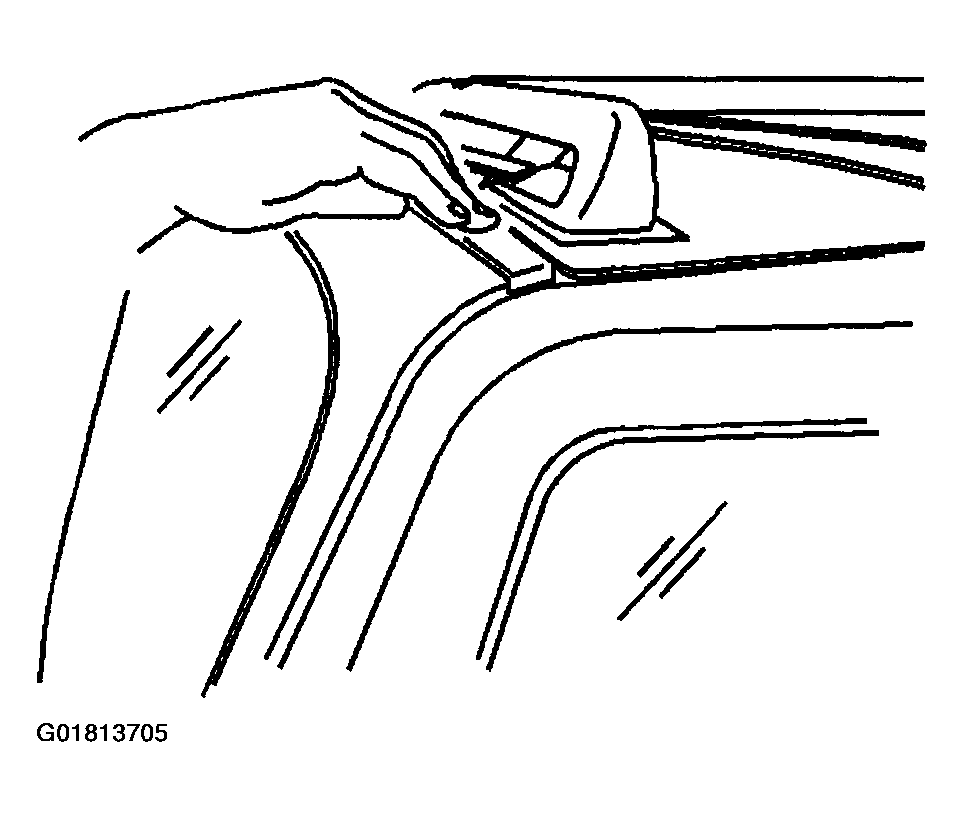

Fig 4: Installing Weld Joint Molding To Roof Studs Using A Flat-Bladed Tool
Courtesy of GENERAL MOTORS CORP.
Install the weatherstrip to the roof drip rail.
Press the weatherstrip onto the flange until fully seated.
Close the side doors.

Fig 5: Installing Weatherstrip To Roof Drip Rail
Courtesy of GENERAL MOTORS CORP.
