Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Align the rear rocker molding retainer to the stud on the rocker panel.

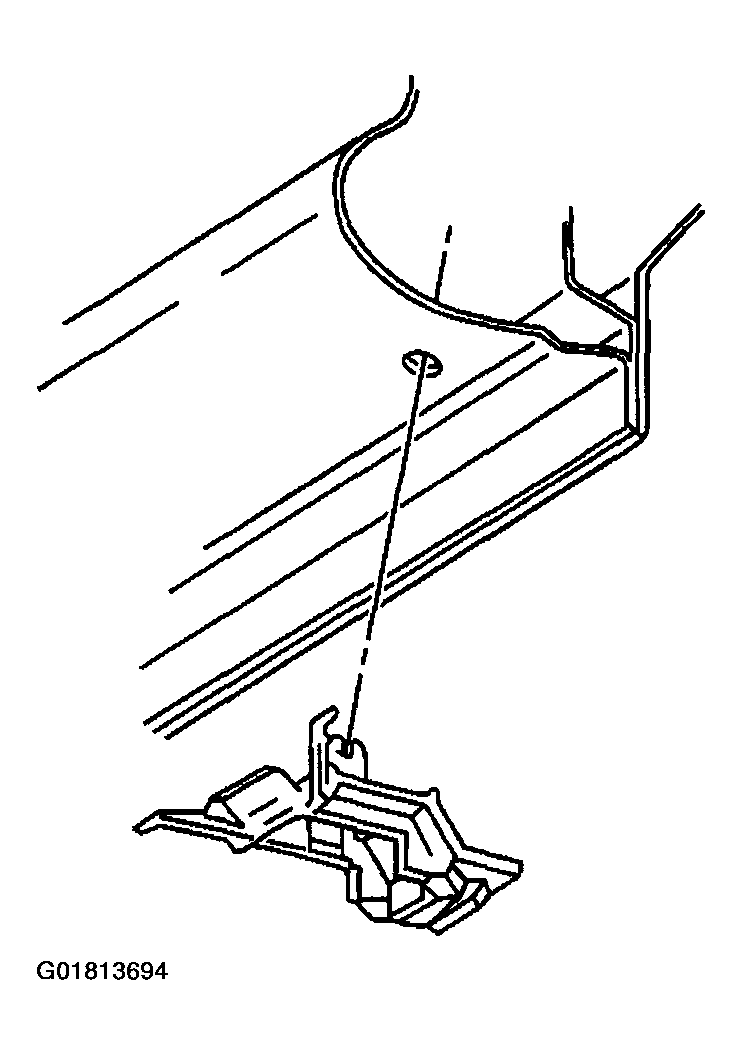

Fig 1: Installing Molding Retainers To Rocker Panel
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the nut to the rear rocker molding retainer.
Tighten

Tighten the rear rocker molding retainer nut to 2 N.m (18 lb in).

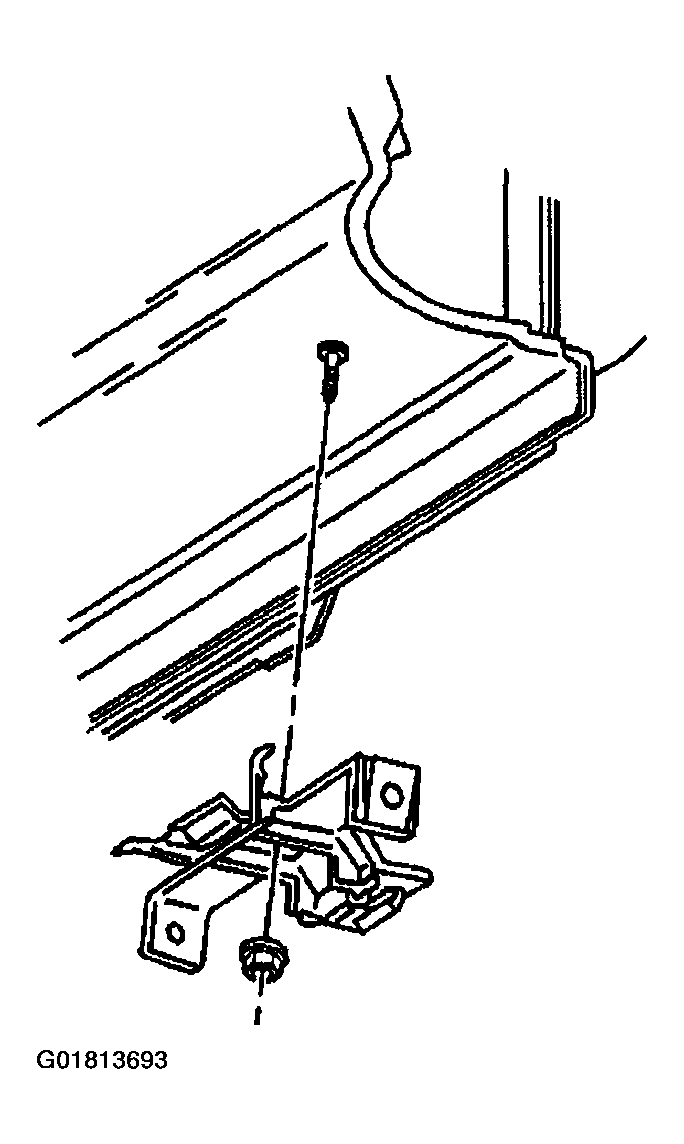

Fig 2: Installing Nut To Rear Rocker Molding Retainer
Courtesy of GENERAL MOTORS CORP.
Align and snap the plugs into the remainder of the rocker molding retainers in the rocker panel.

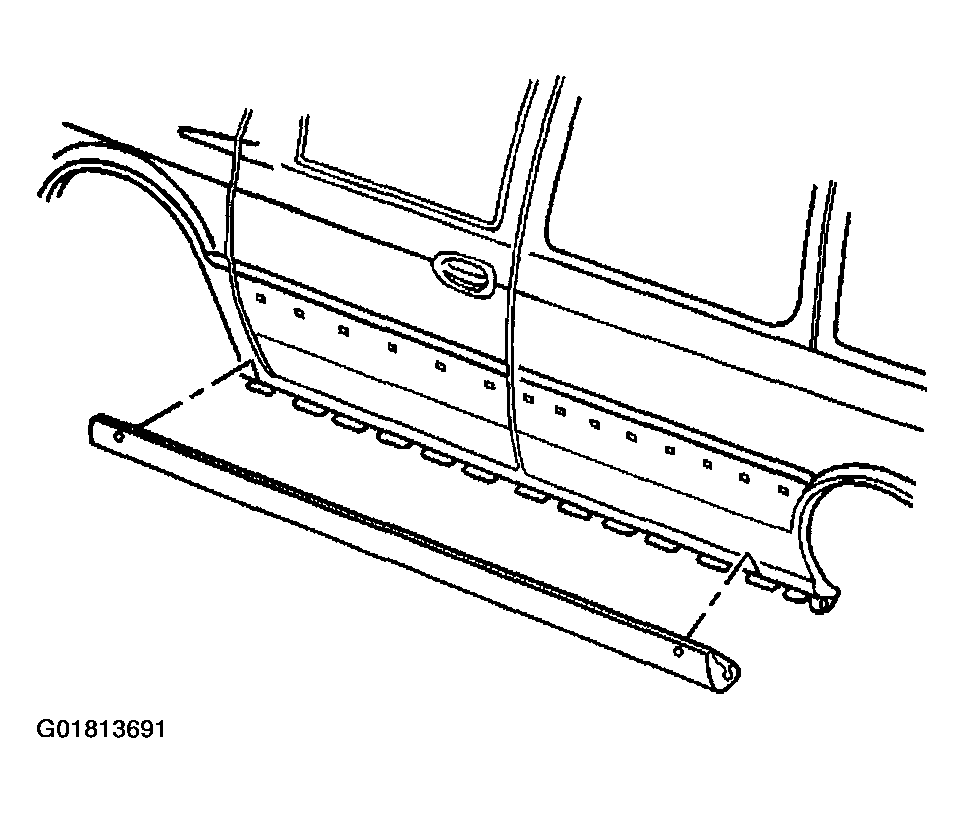

Fig 3: Installing Rocker Molding To Rocker Molding
Courtesy of GENERAL MOTORS CORP.
Align the rocker molding to the rocker molding retainers.
Position the rear of the rocker molding flush to the wheelhouse opening.

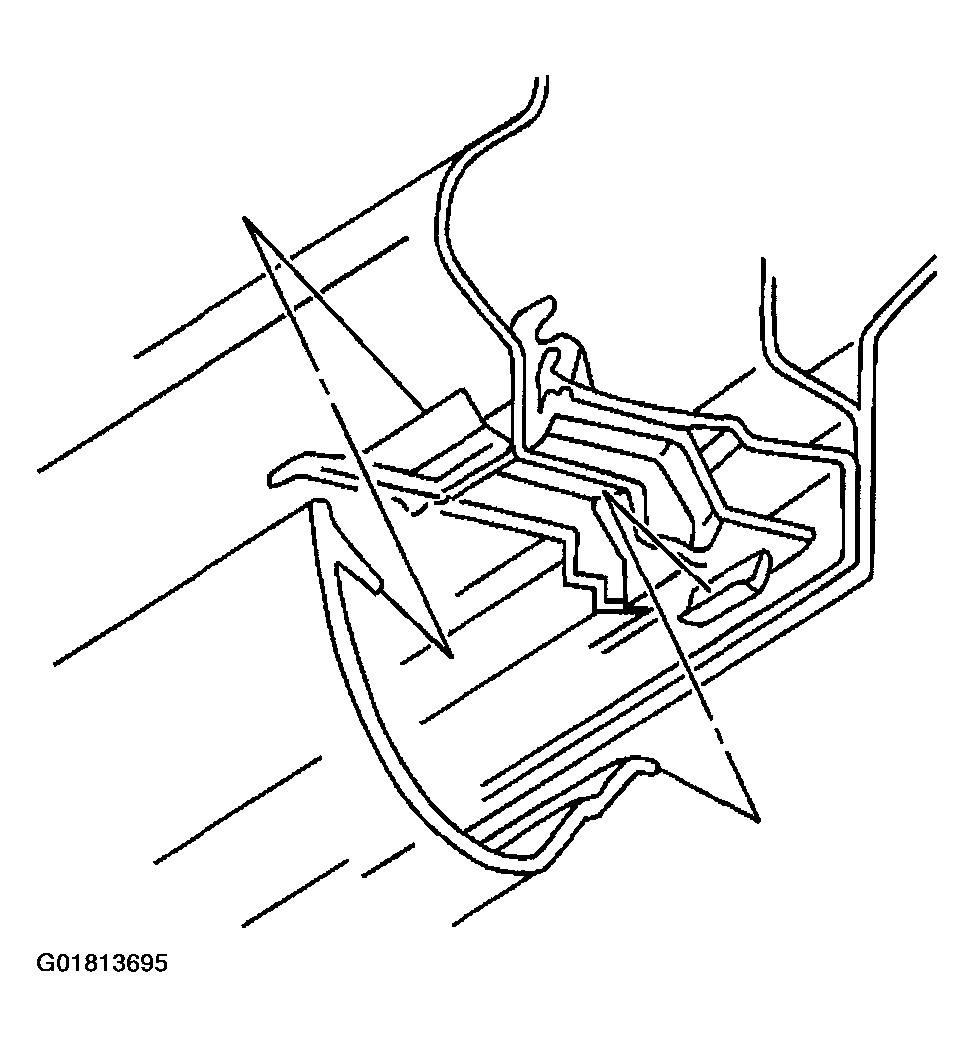

Fig 4: Installing Rocker Molding To Upper Retainer
Courtesy of GENERAL MOTORS CORP.
Tuck the upper flange of the rocker molding over the retainers.
Roll the rocker molding inboard inserting the rocker molding into the retainers.

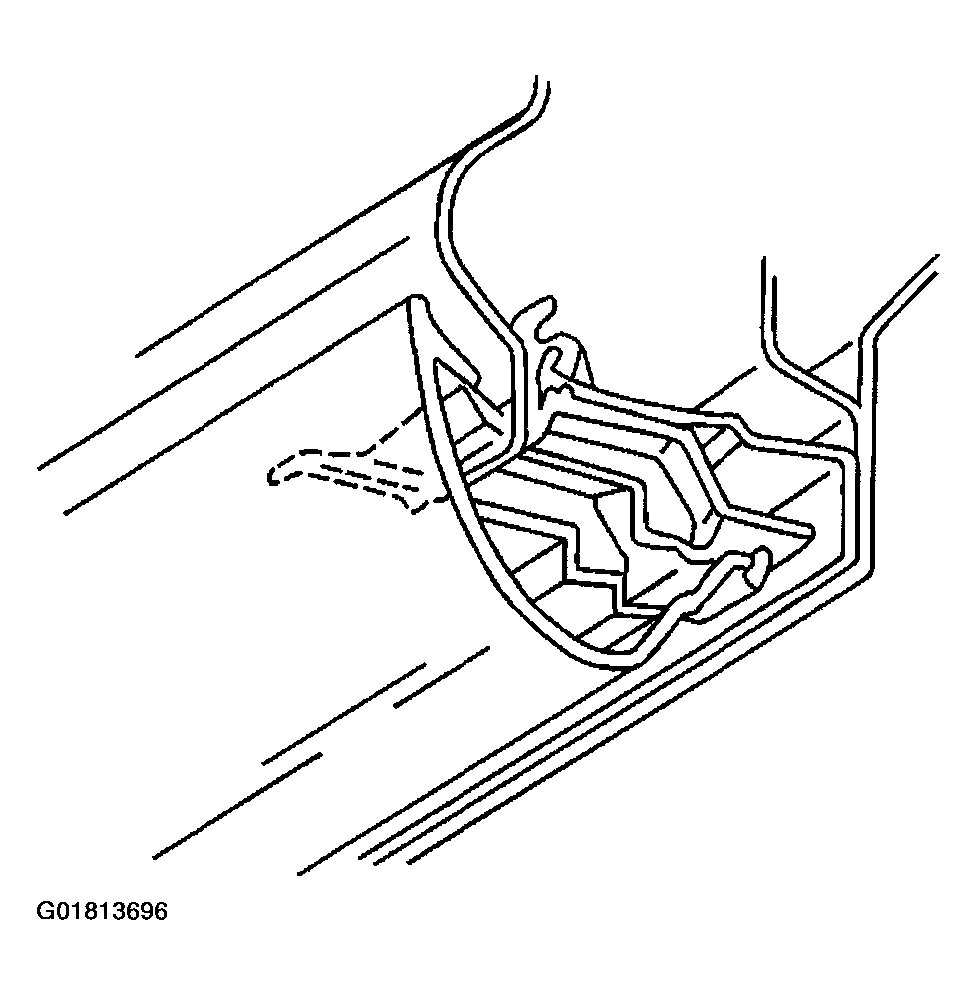

Fig 5: Installing Rocker Molding Down At Lower Edge
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainer at the rear of the rocker molding.
Install the fender splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .

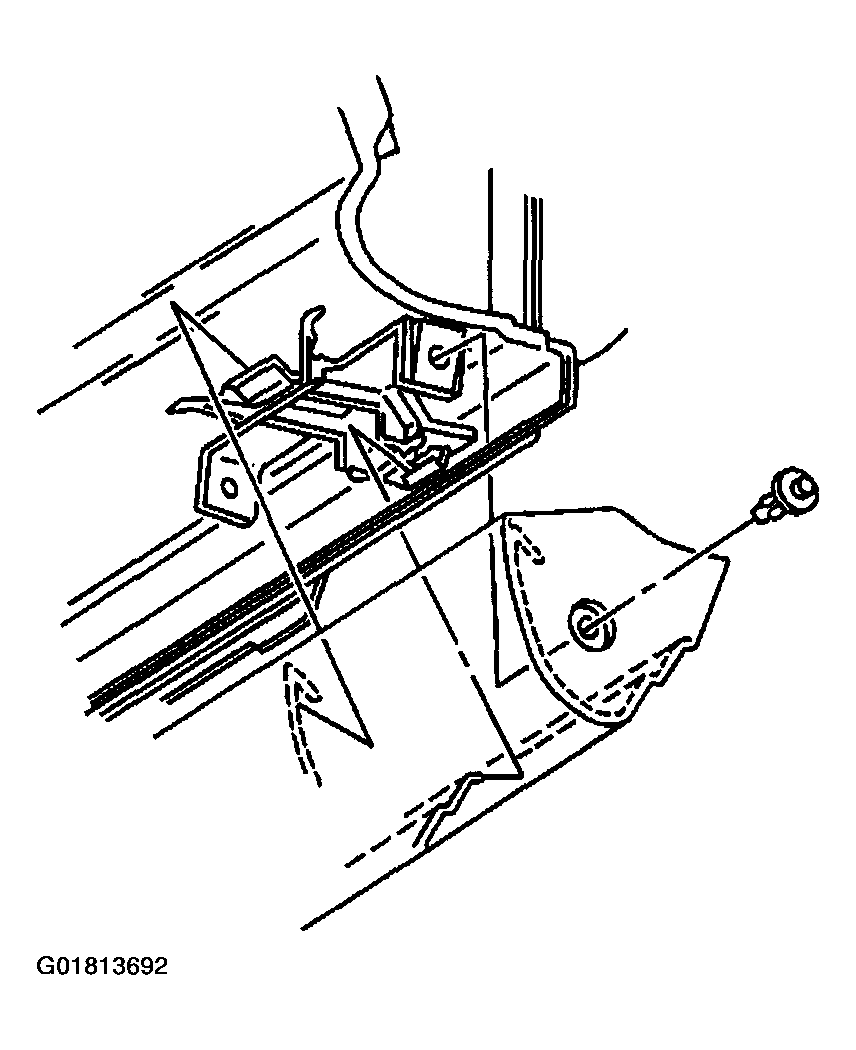

Fig 6: Installing Push-In Retainer At Rear Of Rocker Molding
Courtesy of GENERAL MOTORS CORP.
