Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 38778  to remove the push-in retainers from the lower front of the quarter wheel opening molding.
  2. Remove the screws from the front of the quarter wheel opening molding.
  3. Starting at the rear and working forward, pull up on the quarter wheel opening molding.
  4. Remove the quarter wheel opening molding from the quarter panel.

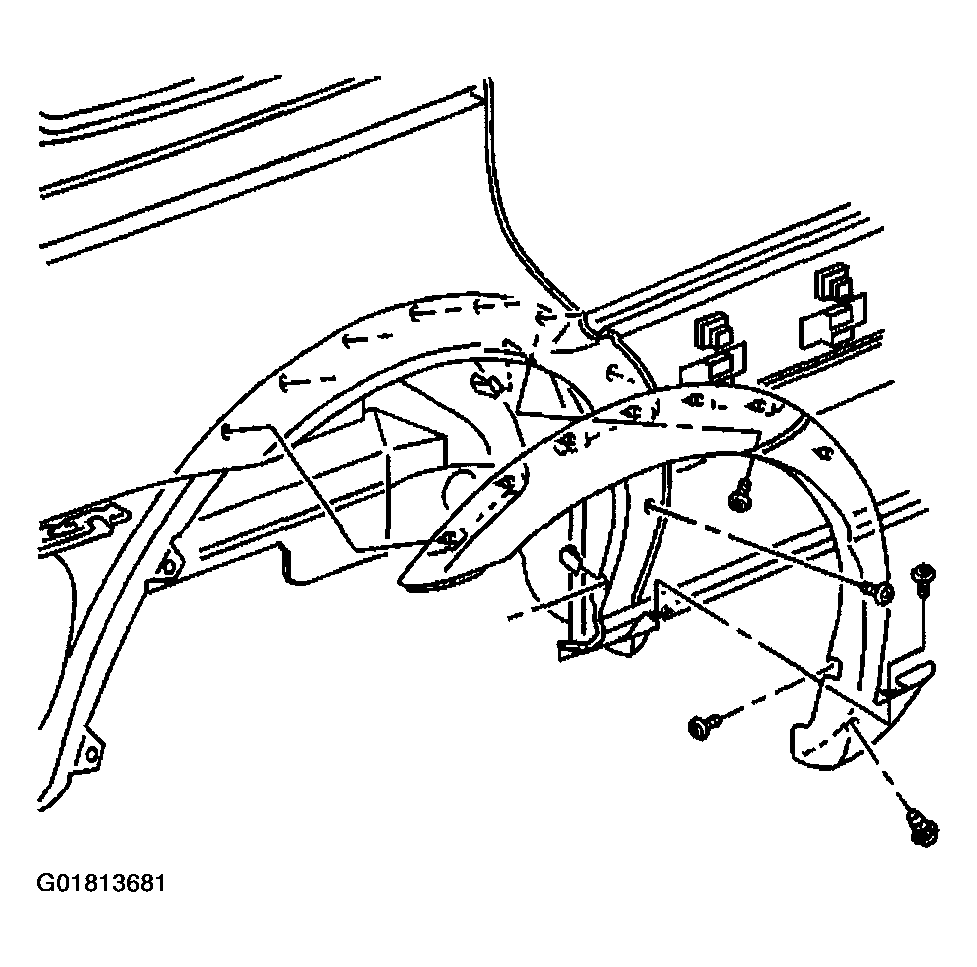

    Fig 1: Removing Screws To Lower Front Of Quarter Wheel Opening Molding (Standard Wheelbase)
    G01813681Courtesy of GENERAL MOTORS CORP.
  5. Remove the nuts from the lower quarter wheel opening molding retainer.
  6. Remove the lower quarter wheel opening molding retainer from the quarter panel.

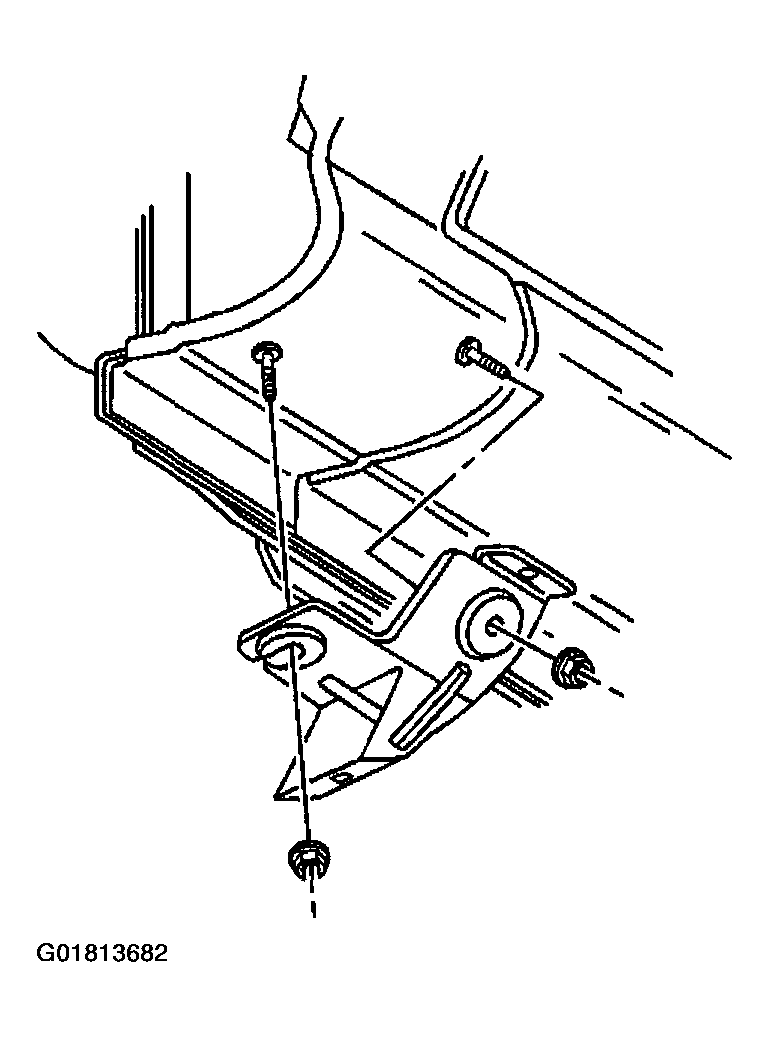

    Fig 2: Removing Lower Quarter Wheel Opening Molding Retainer From Quarter Panel
    G01813682Courtesy of GENERAL MOTORS CORP.
