Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower quarter wheel opening molding retainer to the quarter panel.
  2. Align the upper hole of the quarter wheel opening molding retainer to the upper stud.
  3. Align the lower slot in the quarter wheel opening molding retainer to the lower stud.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the nuts to the lower quarter wheel opening molding retainer.

    Tighten

    Tighten the nuts to 2 N.m (18 lb in).

  5. Align the quarter wheel opening molding to the quarter panel flare flush with the body.

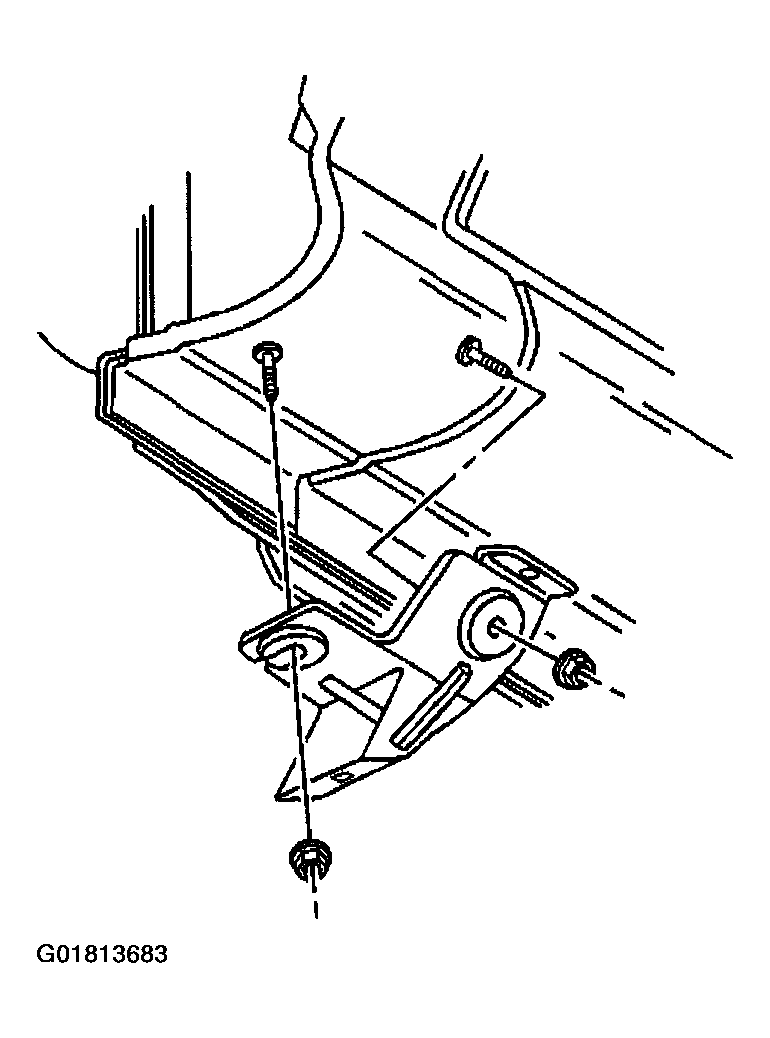

    Fig 1: Installing Lower Quarter Wheel Opening Molding Retainer To Quarter Panel
    G01813683Courtesy of GENERAL MOTORS CORP.
  6. Starting at the rear, align the quarter wheel opening molding retainers to the holes in the quarter panel.
  7. Working forward, press the quarter wheel opening molding retainers into the quarter panel until fully seated.
  8. Install the screws to the front of the quarter wheel opening molding.

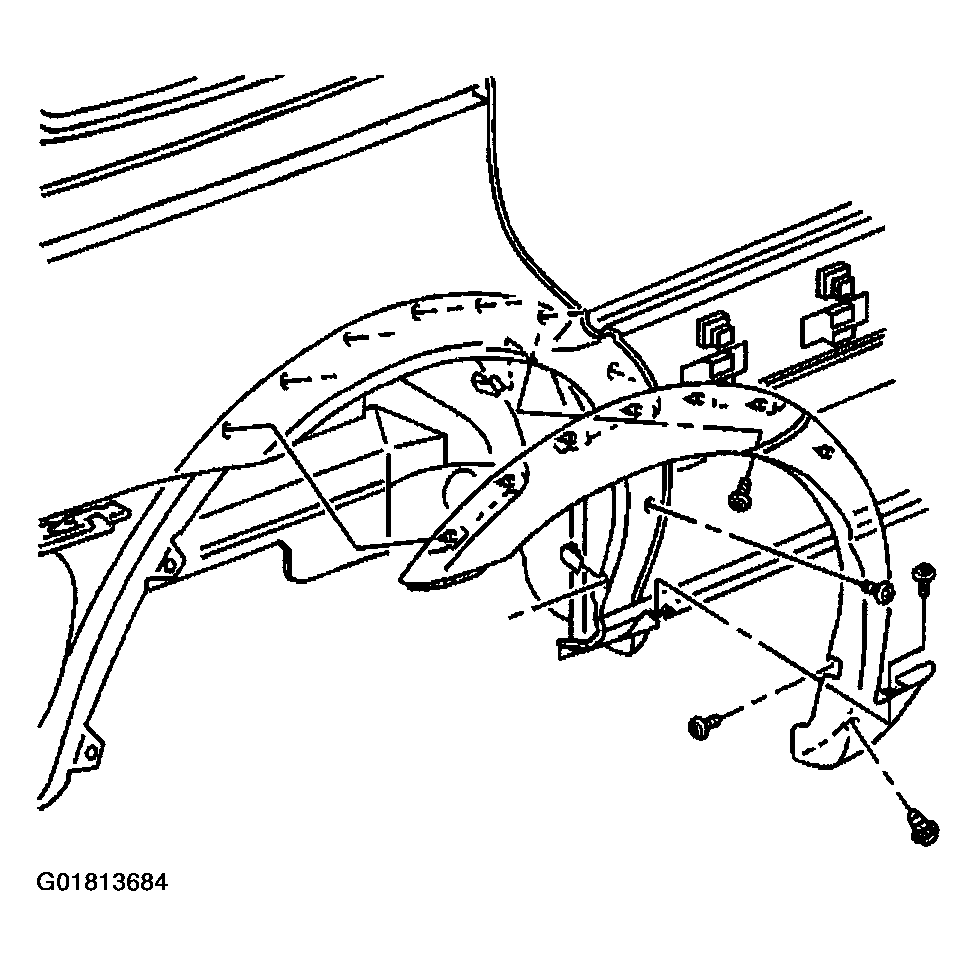

    Fig 2: Installing Screws To Lower Front Of Quarter Wheel Opening Molding (Standard Wheelbase)
    G01813684Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  9. Install the push-in quarter wheel opening molding retainers to the lower front of the quarter wheel opening molding.
