Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws from the rear quarter molding.

Fig 1: Removing Screws From Rear Quarter Molding
Courtesy of GENERAL MOTORS CORP.

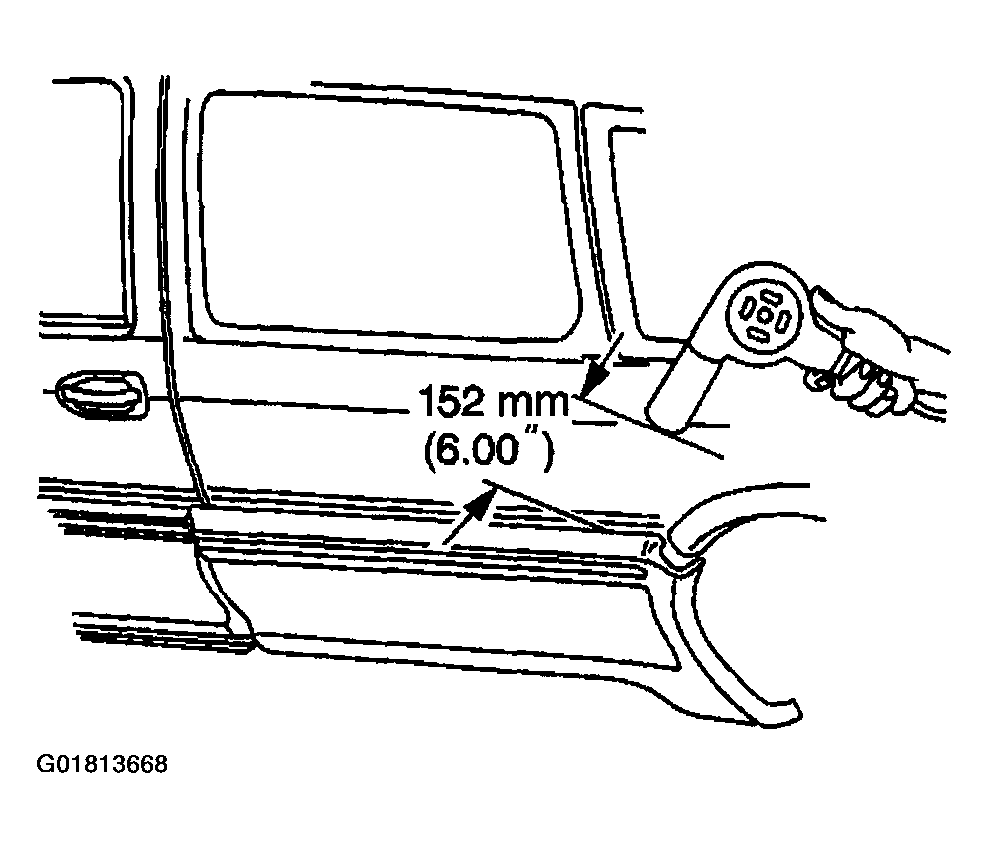

Use J 25070 152 mm (6 in) from the surface in order to heat the lower quarter molding. Use a circular motion for 30 seconds when applying heat.

Fig 2: Applying Heat To Lower Quarter Molding
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
Use a flat-bladed tool in order to remove the quarter molding from the surface.
Pull the lower quarter molding out, in order to release the retainers.
Pull the lower quarter molding out, in order to release from the lower locating pins.
Pull the quarter molding up, in order to release from the upper support.
Remove the quarter molding from the quarter panel.
Pull out the center pins of the support retainers.

Fig 3: Removing Center Pins Of Support Retainers
Courtesy of GENERAL MOTORS CORP.

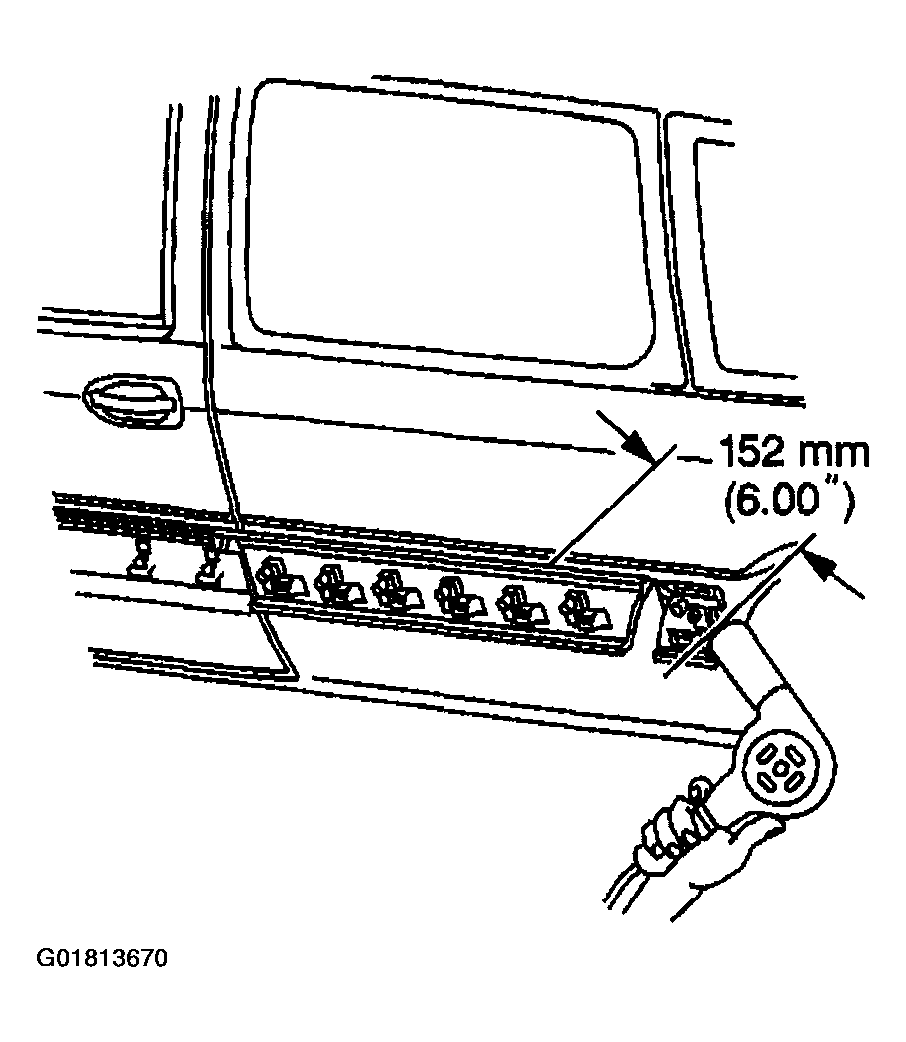

Use J 25070 152 mm (6 in) from the surface in order to heat the lower quarter molding. Use a circular motion for 30 seconds when applying heat.

Fig 4: Applying Heat To Surface Of Lower Quarter Molding
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
Use a flat-bladed tool in order to remove the quarter molding from the surface.
Remove the quarter molding support from the quarter panel.
Use oil-free naphtha or alcohol in order to clean the body panel.
Remove all traces of adhesive from the body panel.
