Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Partially remove the front fender liner to access the wheel opening molding push-in retainer. Refer to FENDER LINER REPLACEMENT .
  3. Remove the screws from the lower rear of the fender wheel opening molding.

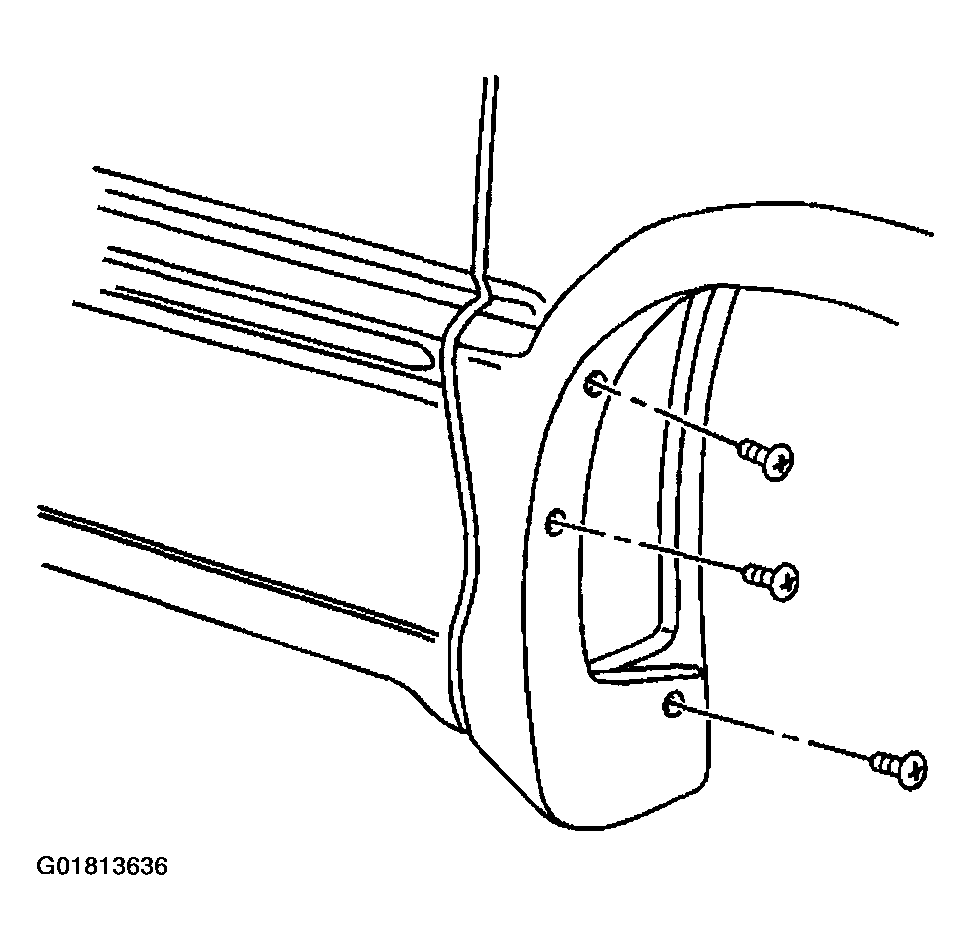

    Fig 1: Removing Screws From Lower Rear Of Fender Wheel Opening Molding
    G01813636Courtesy of GENERAL MOTORS CORP.
  4. Remove the push-in retainer from the front wheel opening molding.

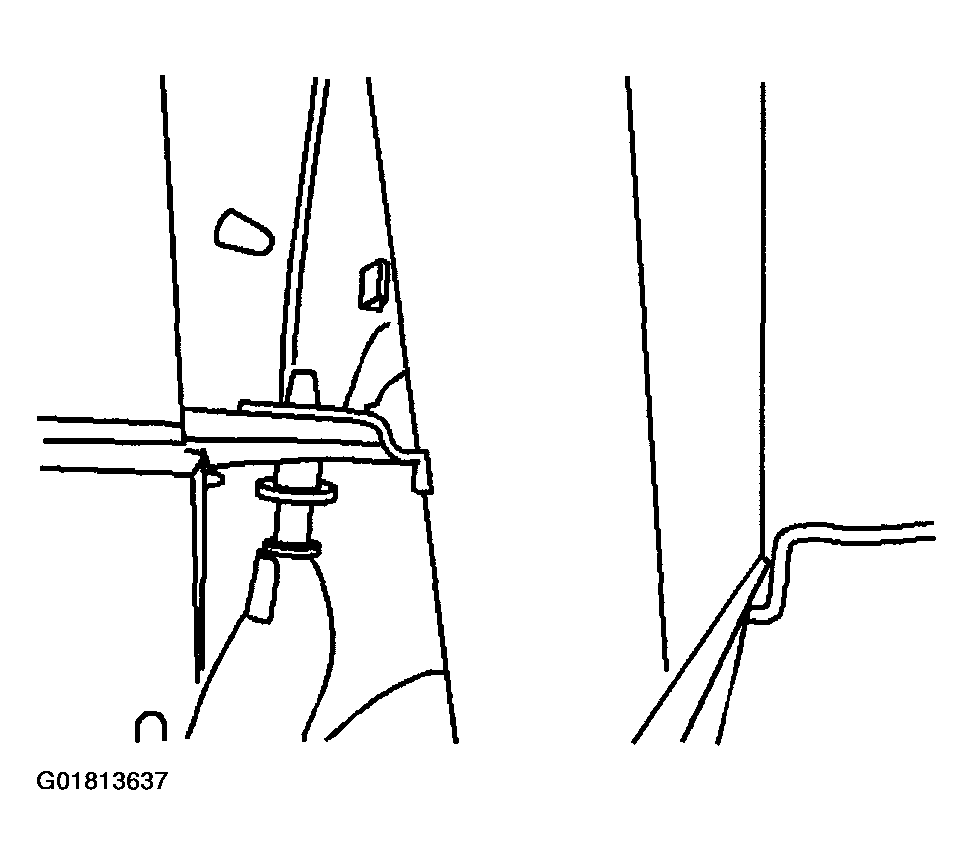

    Fig 2: Removing Push-In Retainer From Front Wheel Opening Molding
    G01813637Courtesy of GENERAL MOTORS CORP.
  5. Pull the fender wheel opening molding from the fender releasing the retainers in the fender.
  6. Remove the fender wheel opening molding from the fender.

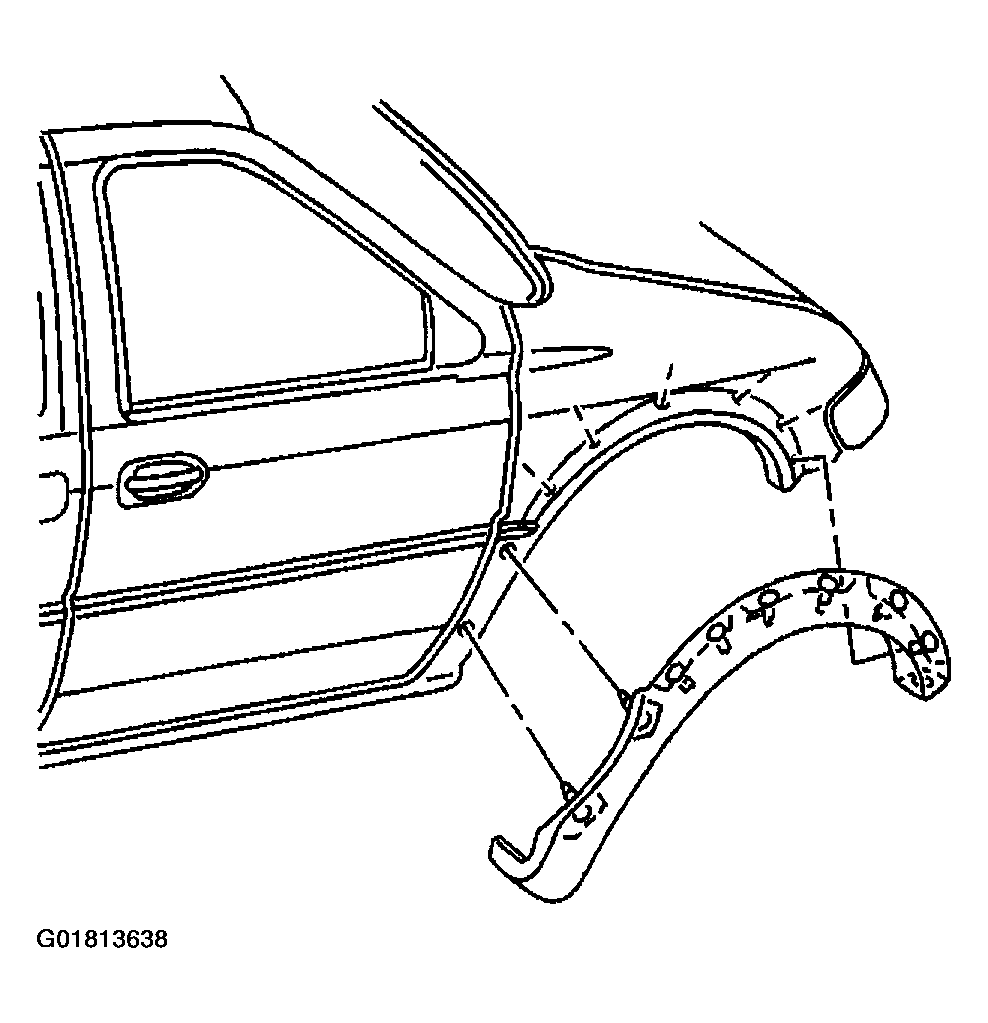

    Fig 3: Removing Fender Wheel Opening Molding From Fender
    G01813638Courtesy of GENERAL MOTORS CORP.
