Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fender wheel opening molding to the holes in the fender.

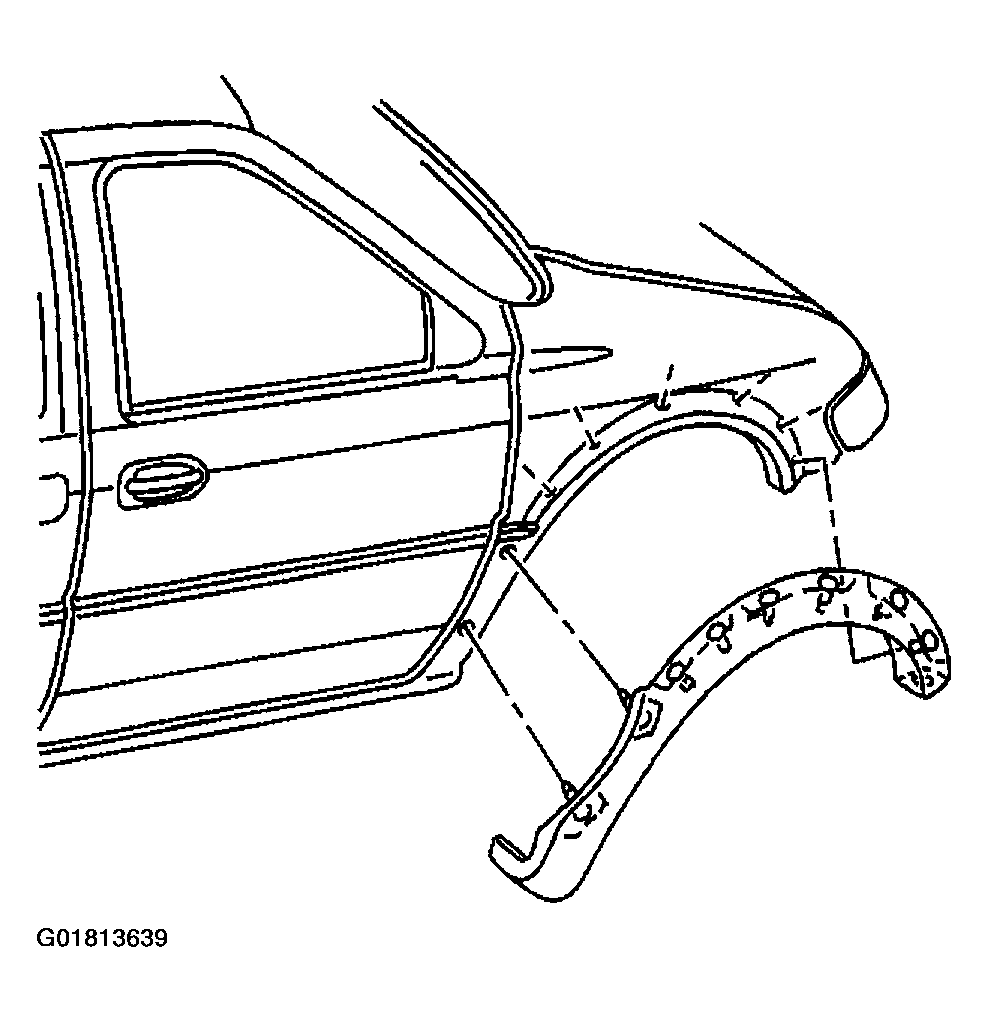

    Fig 1: Installing Fender Wheel Opening Molding To Fender
    G01813639Courtesy of GENERAL MOTORS CORP.
  2. Press down on the fender wheel opening molding to seat the retainers to the fender.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the lower rear of the fender wheel opening molding.

    Tighten

    Tighten the lower rear fender wheel opening molding screws to 2 N.m (18 lb in).

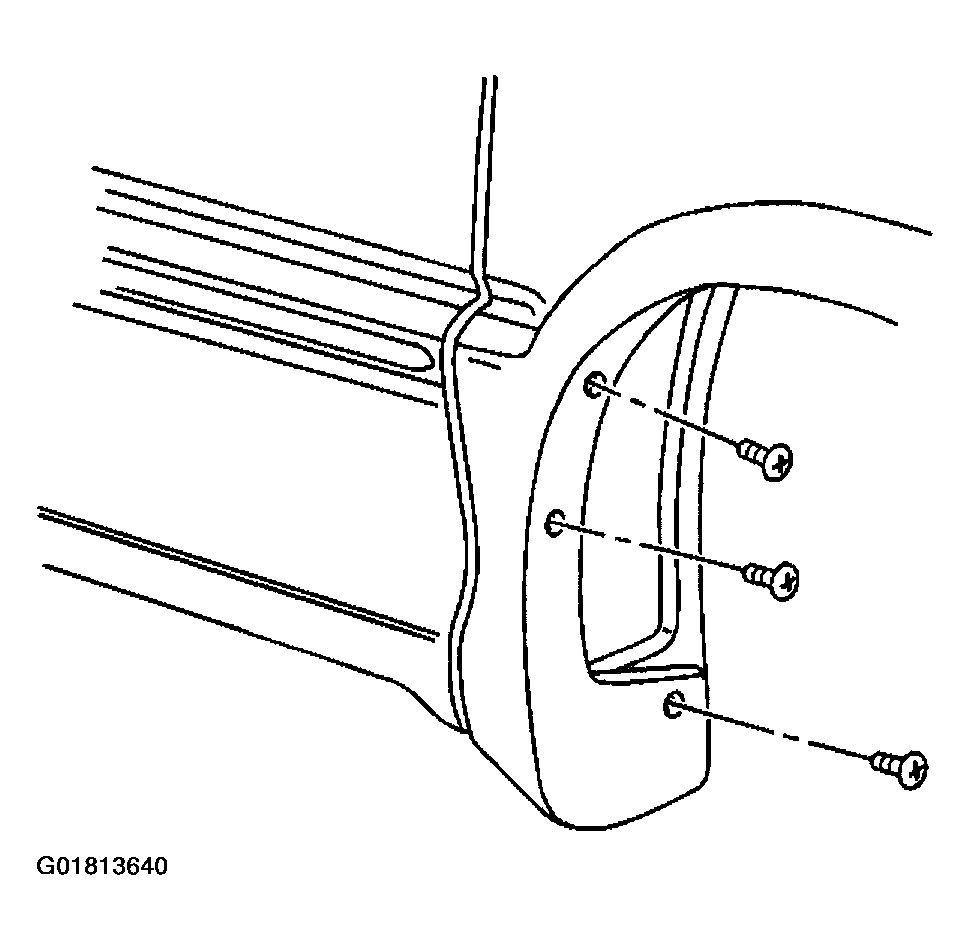

    Fig 2: Installing Screws From Lower To Of Fender Wheel Opening Molding
    G01813640Courtesy of GENERAL MOTORS CORP.
  4. Install the push-in retainer to the front of the fender opening molding.
  5. Install the front fender liner. Refer to FENDER LINER REPLACEMENT .
  6. Lower the vehicle.

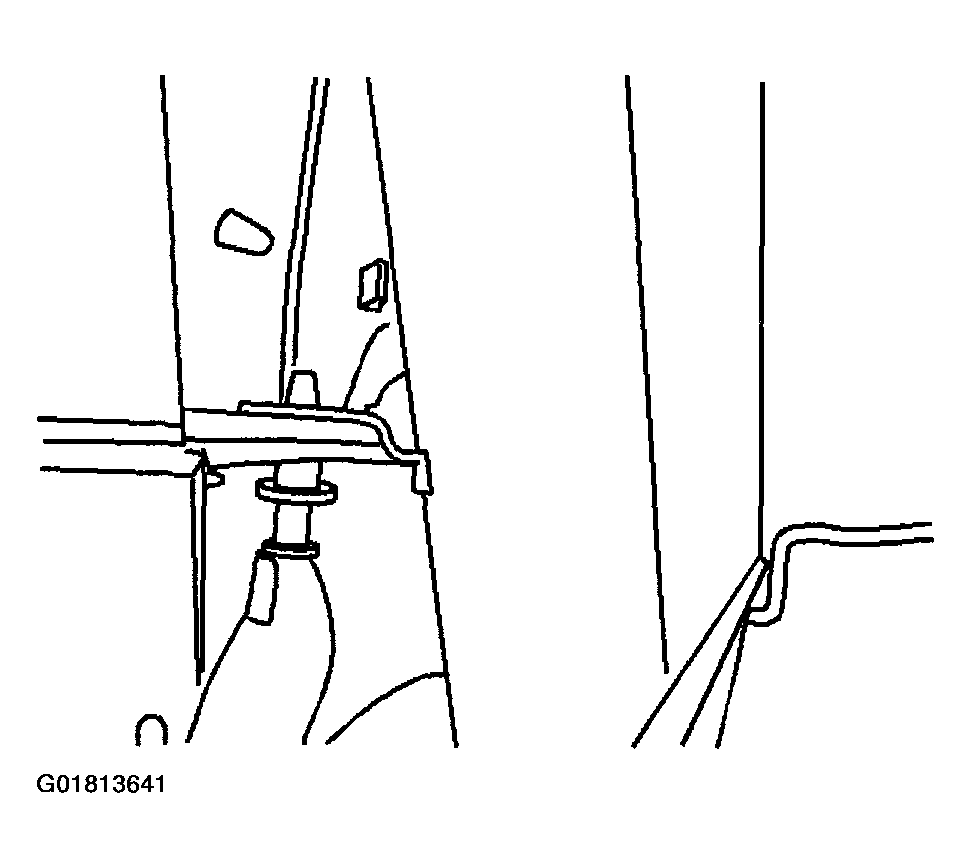

    Fig 3: Installing Push-In Retainer To Front Wheel Opening Molding
    G01813641Courtesy of GENERAL MOTORS CORP.
