Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Position the grille center hook into the hood center slot.
Align the grille to the hood.

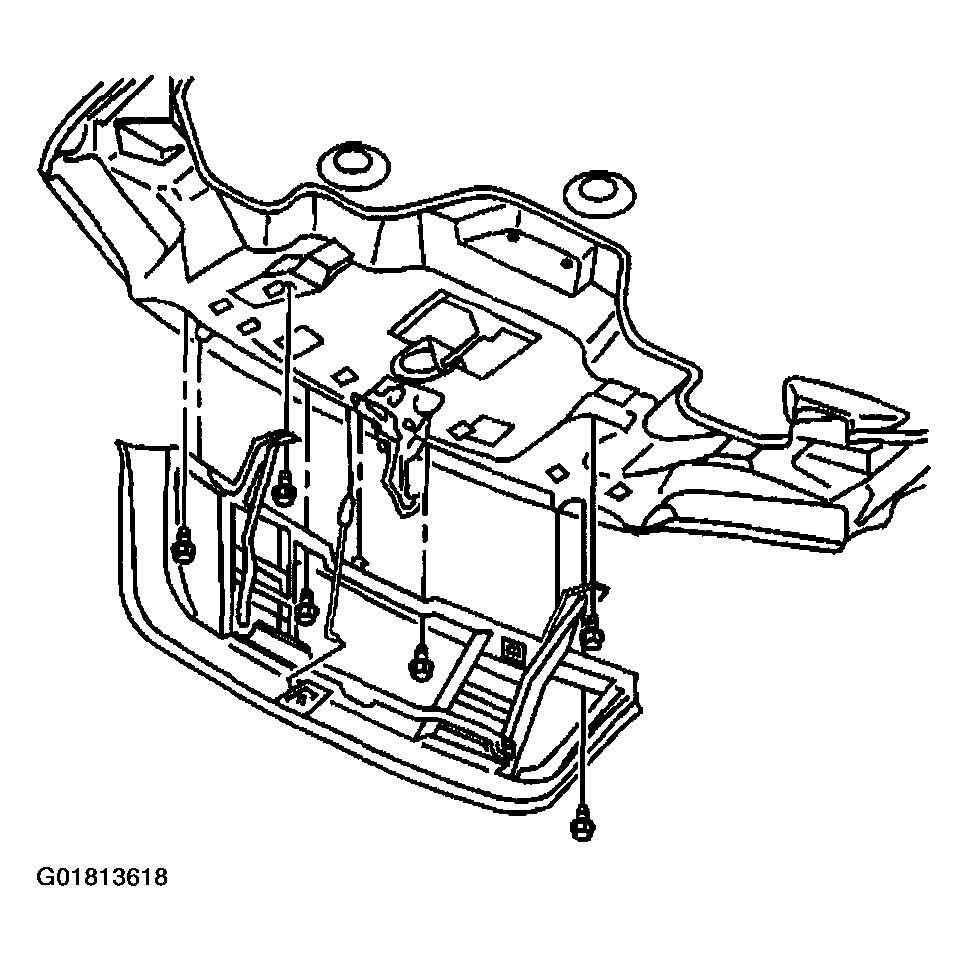

Fig 1: Installing Grille To Hood (Chevrolet)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts to the center of the grille.
Tighten

Tighten the bolts to 4 N.m (35 lb in).

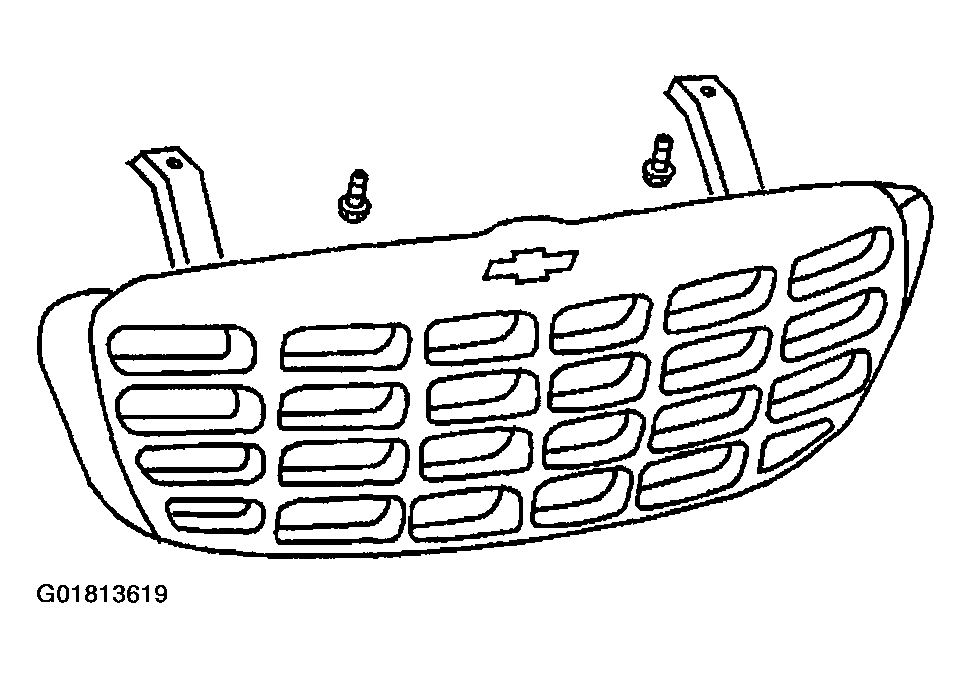

Fig 2: Installing Bolts & Center Of Grille (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
Install the hood latch linkage to the secondary hood latch.

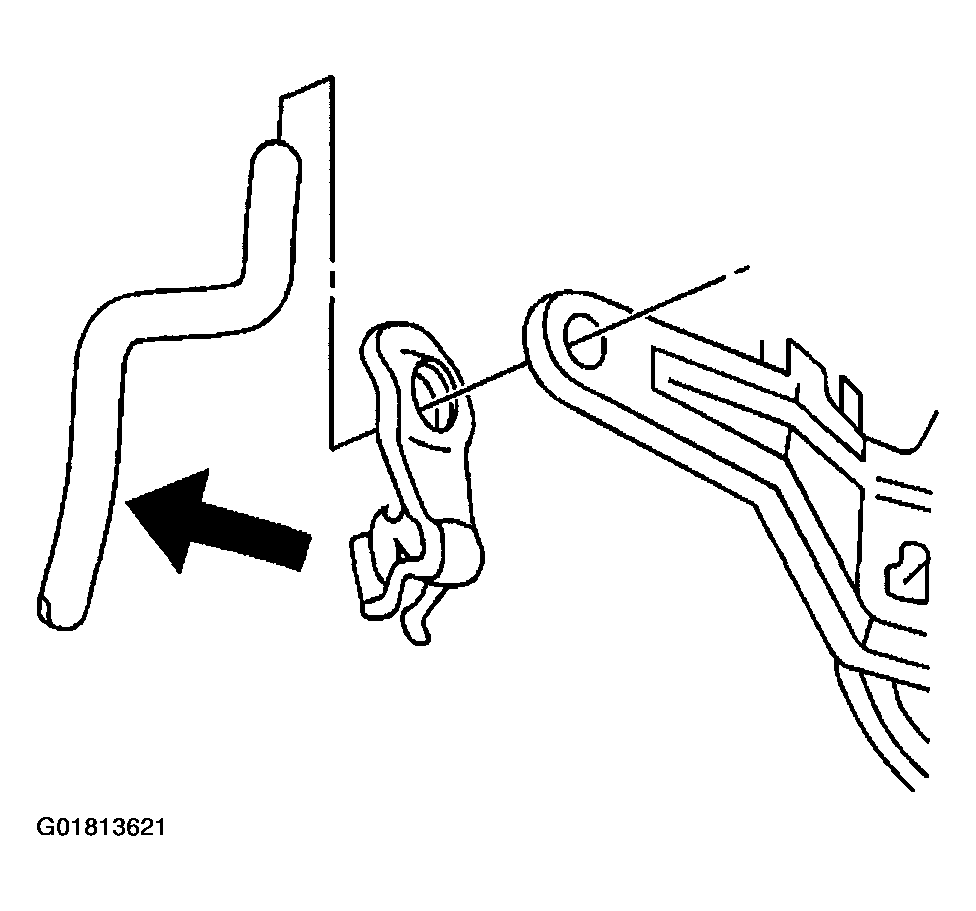

Fig 3: Installing Hood Latch Linkage To Secondary Hood Latch (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
Install the hood latch linkage to the secondary hood latch.

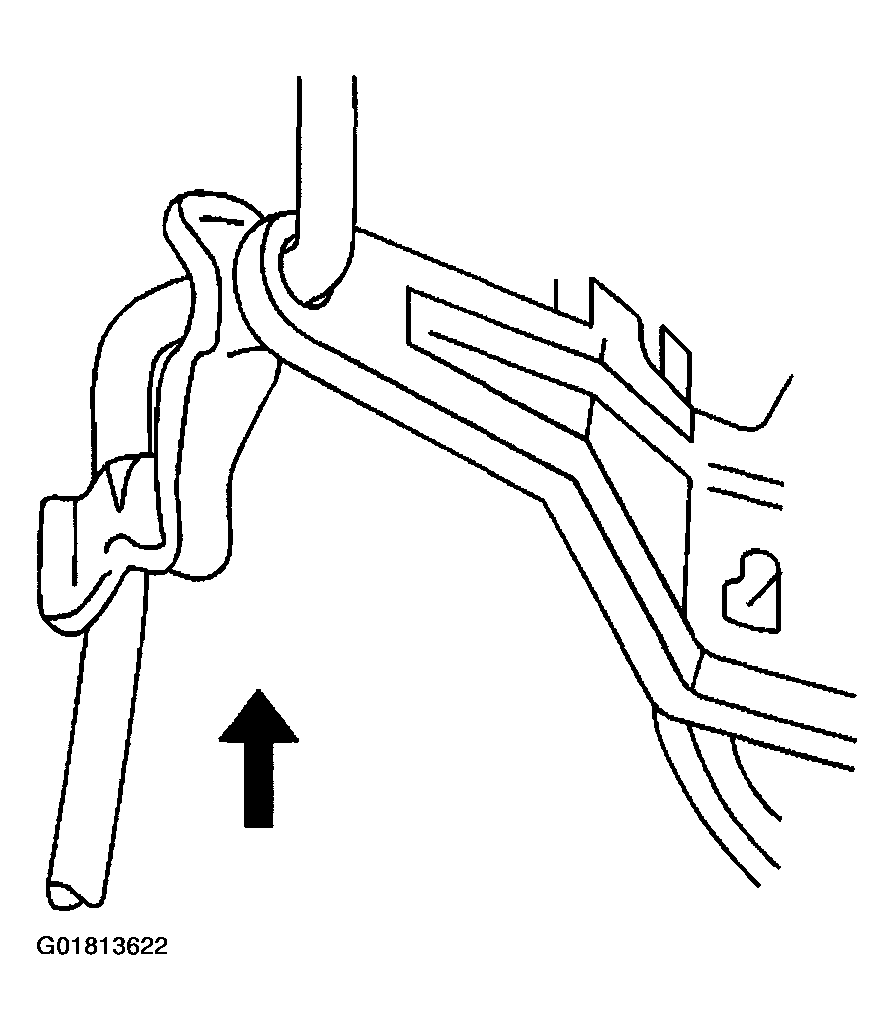

Fig 4: Installing Hood Latch Linkage To Secondary Hood Latch & Front Hood Seal (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
Install the hood latch linkage to the secondary hood latch.
Install the front hood seal. Refer to SEAL REPLACEMENT - HOOD FRONT .
Close the hood.

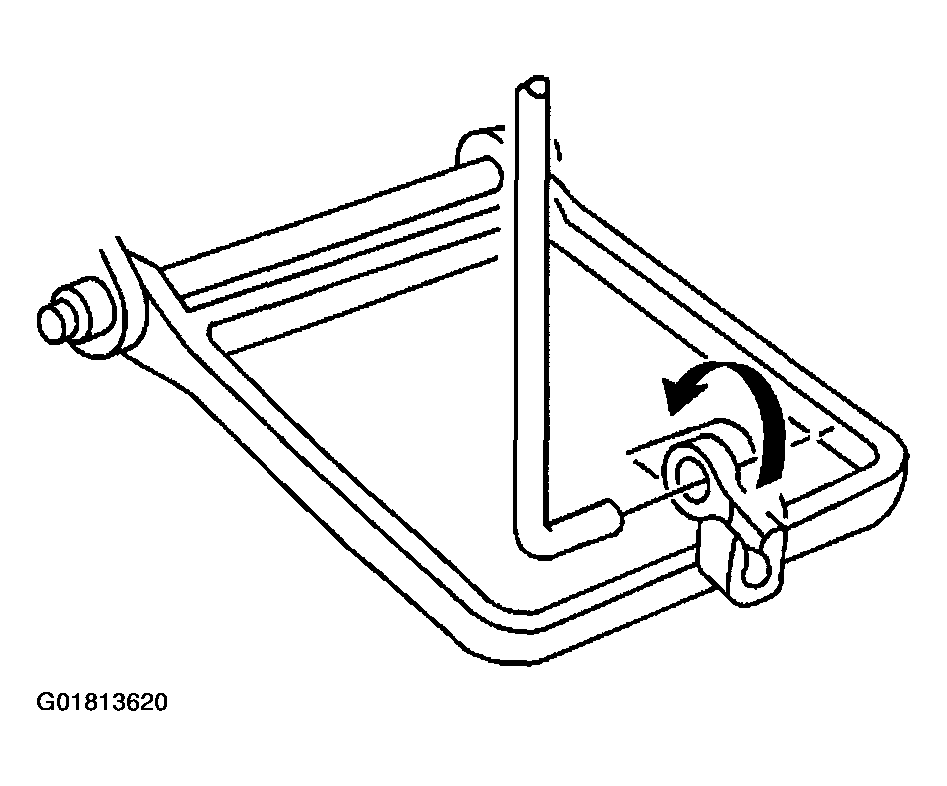

Fig 5: Front Hood Seal (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
