Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

When replacing or repairing an emblem/nameplate do the following:
1. 1.1. Use tape to protect the mounting surface during removal.
2. 1.2. Use tape for alignment marks for installation of the emblem/nameplate.
To remove an emblem/nameplate, heat the emblem/nameplate using a J 25070.
Apply heat using a circular motion for about 30 seconds holding the J 25070 approximately 152 mm (6 in) from the surface.
NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
Use a plastic, flat-bladed tool to remove the emblem/nameplate from the panel surface.
When replacing, remove all adhesive as follows:

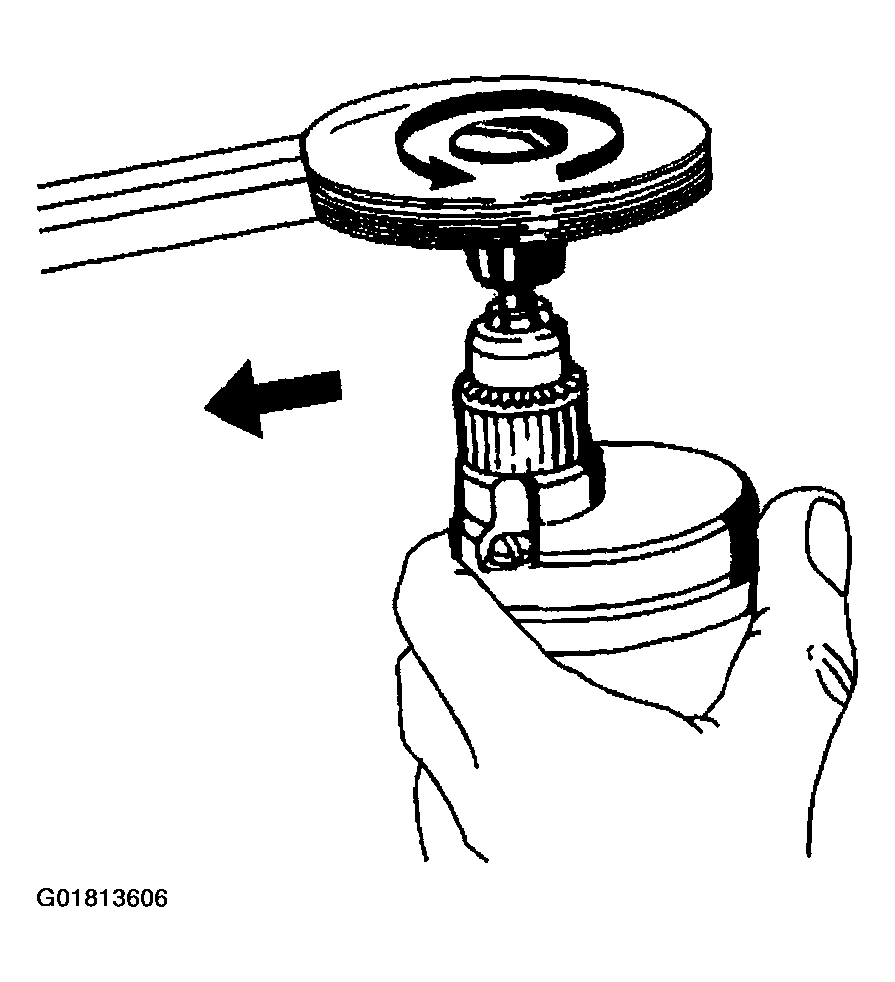

- For body panels use a 3M^TM Scotch Brite molding adhesive remover disk 3M^TM P/N 07501 or equivalent.
- For plastic panels use a lint free cloth and Varnish Makers and Painters (VMP) naphtha or a 50/50 mixture by volume of isopropyl alcohol and water to remove the adhesive.

  Fig 1: Removing Emblem/Nameplate
  Courtesy of GENERAL MOTORS CORP.
