Instrument Panel (I/P) Compartment Lamp Inoperative

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

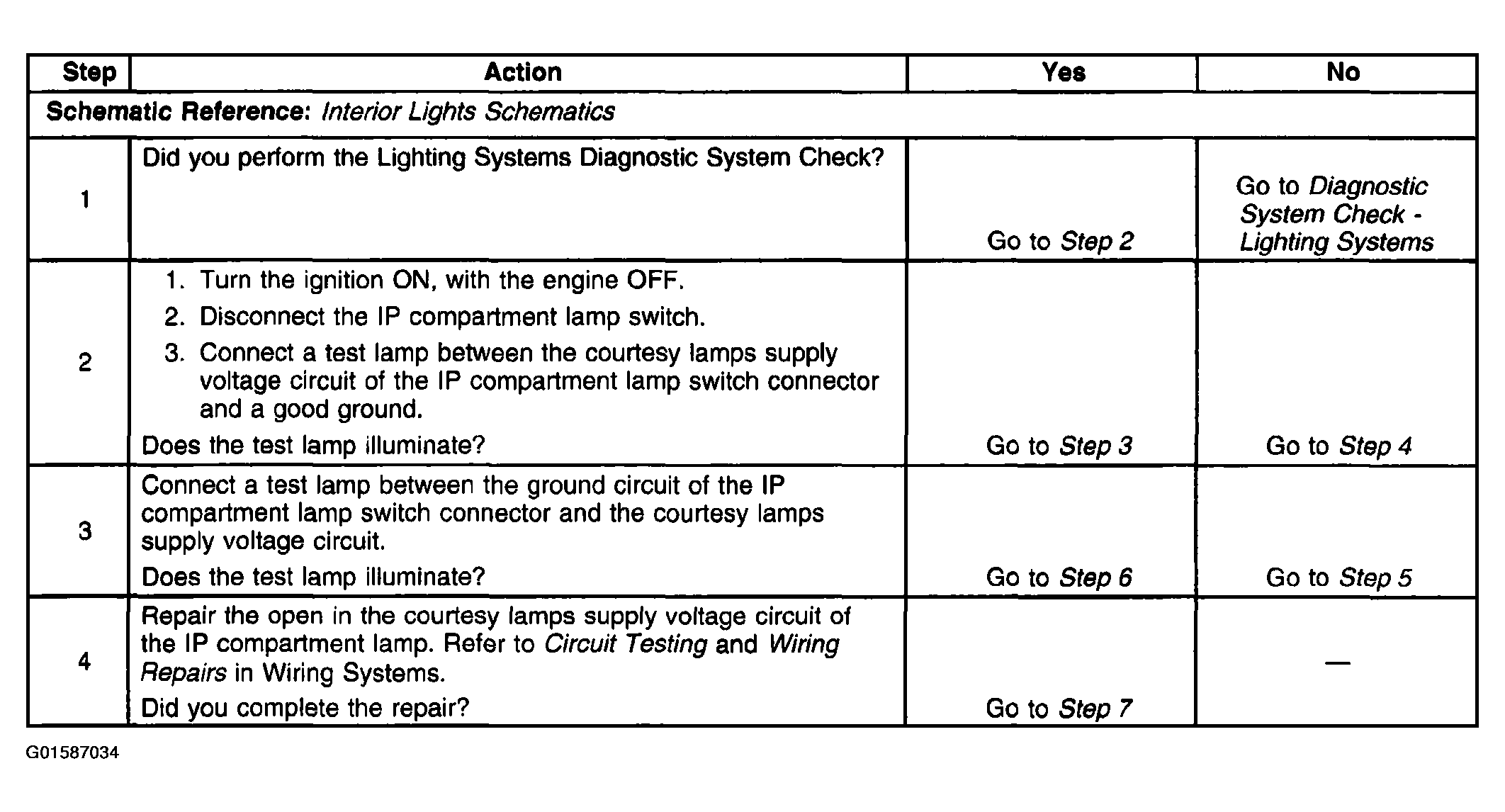

Fig 1: Instrument Panel Compartment Lamp Inoperative (Steps 1 - 4)
G01587034Courtesy of GENERAL MOTORS CORP.

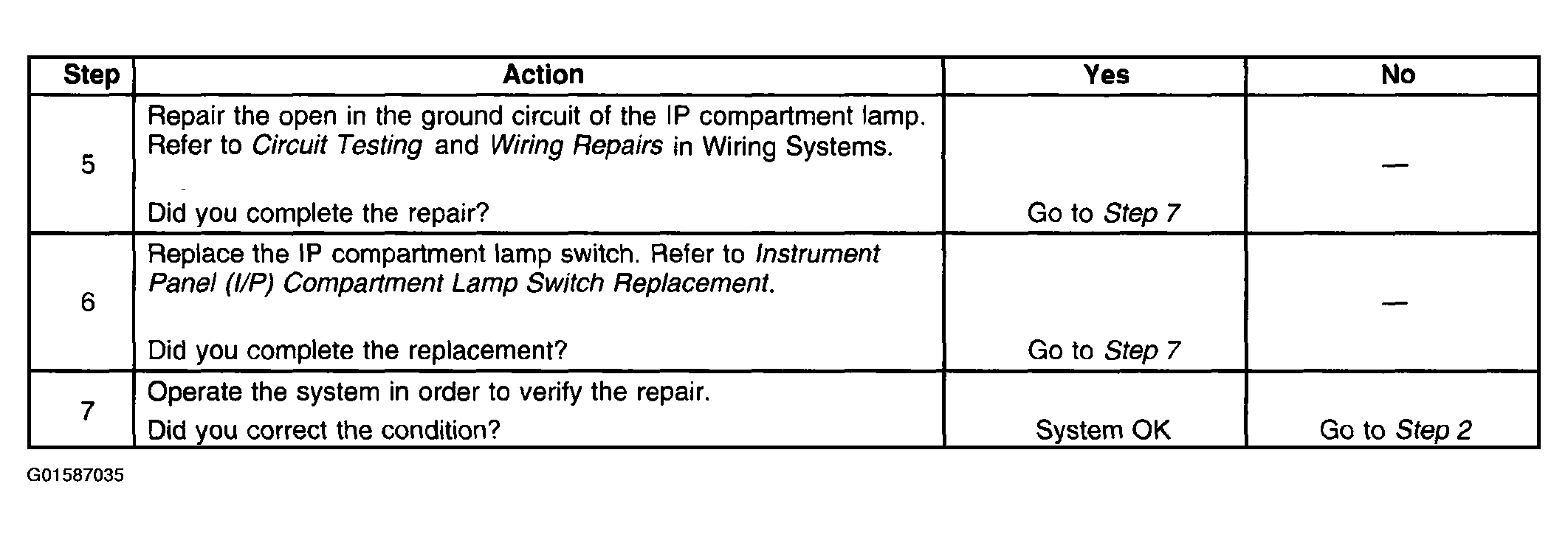

Fig 2: Instrument Panel Compartment Lamp Inoperative (Steps 5 - 7)
G01587035Courtesy of GENERAL MOTORS CORP.
