Blower Motor Inoperative

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

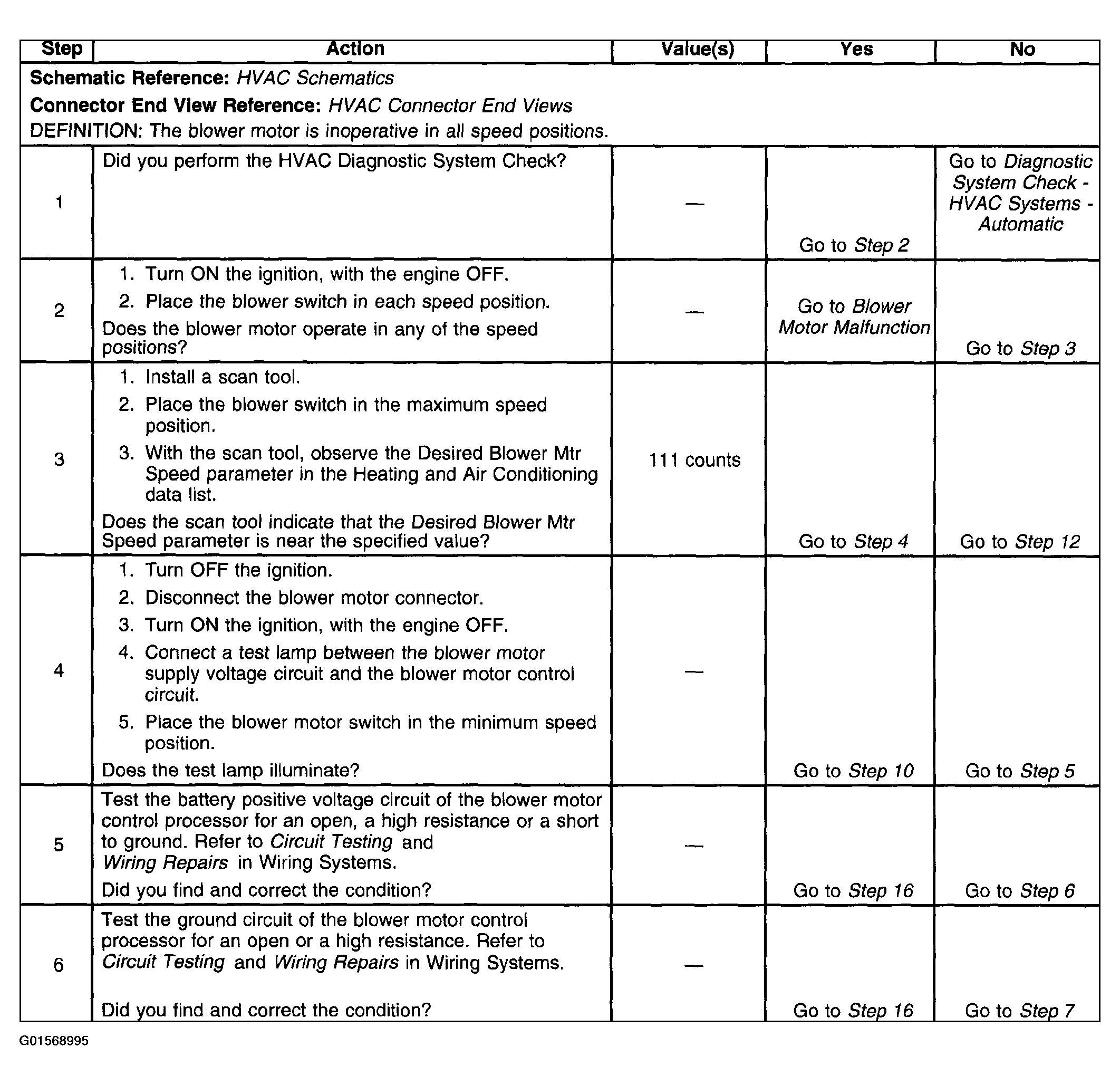

Fig 1: Blower Motor Inoperative (Steps 1 - 6)
G01568995Courtesy of GENERAL MOTORS CORP.

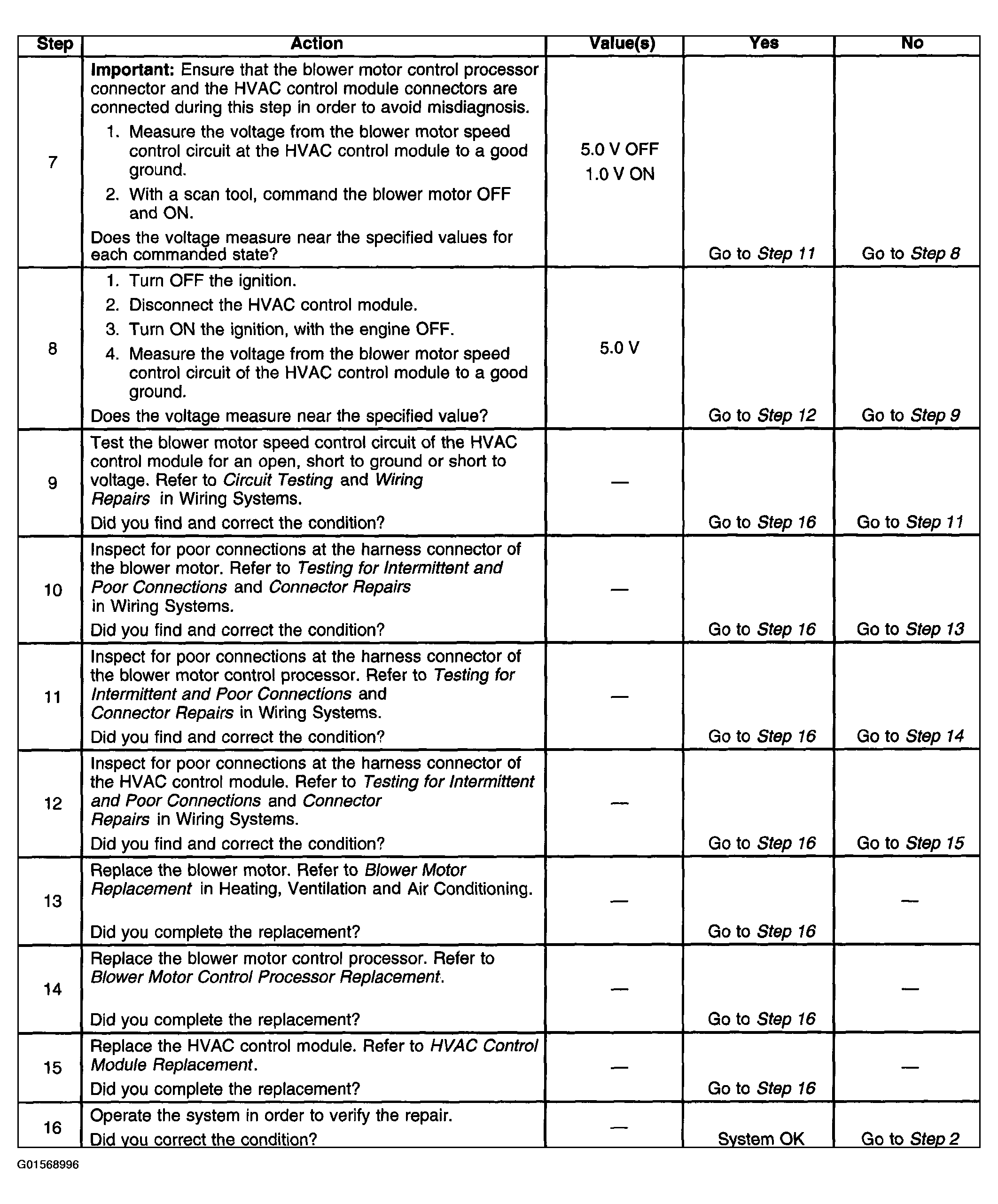

Fig 2: Blower Motor Inoperative (Steps 7 - 16)
G01568996Courtesy of GENERAL MOTORS CORP.
