Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  2. Remove the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  3. Disconnect the vacuum line from the recirculation actuator.
  4. Lift on the retaining tab in order to release the recirculation actuator and slide the actuator off of the mounting bracket.
  5. Disconnect the vacuum actuator plunger rod from the recirculation lever.
  6. Remove the recirculation actuator.

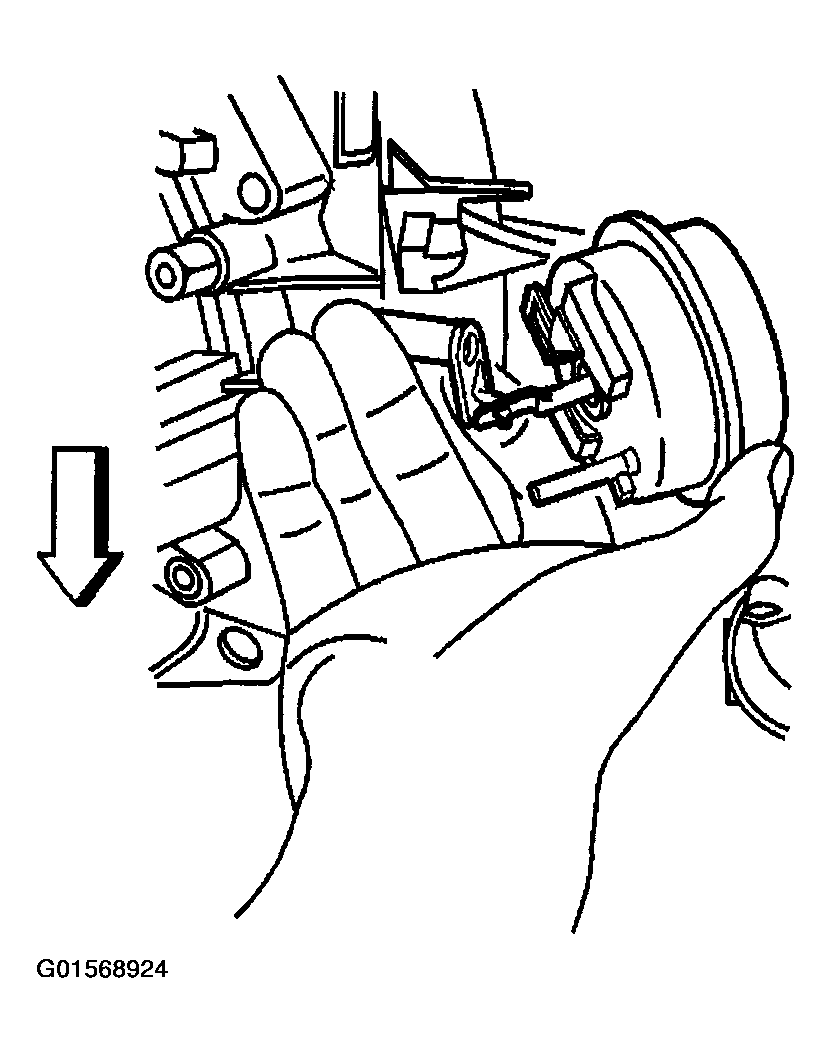

    Fig 1: Removing Recirculation Actuator
    G01568924Courtesy of GENERAL MOTORS CORP.
