Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vacuum valve to the HVAC control module.
  2. Connect the electrical connectors to the HVAC control module.
  3. Connect the vacuum connectors to the HVAC control vacuum valve.
  4. Install the HVAC control module to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screws to the HVAC control module.

    Tighten

    Tighten the screws to 2 N.m (18 lb ft).

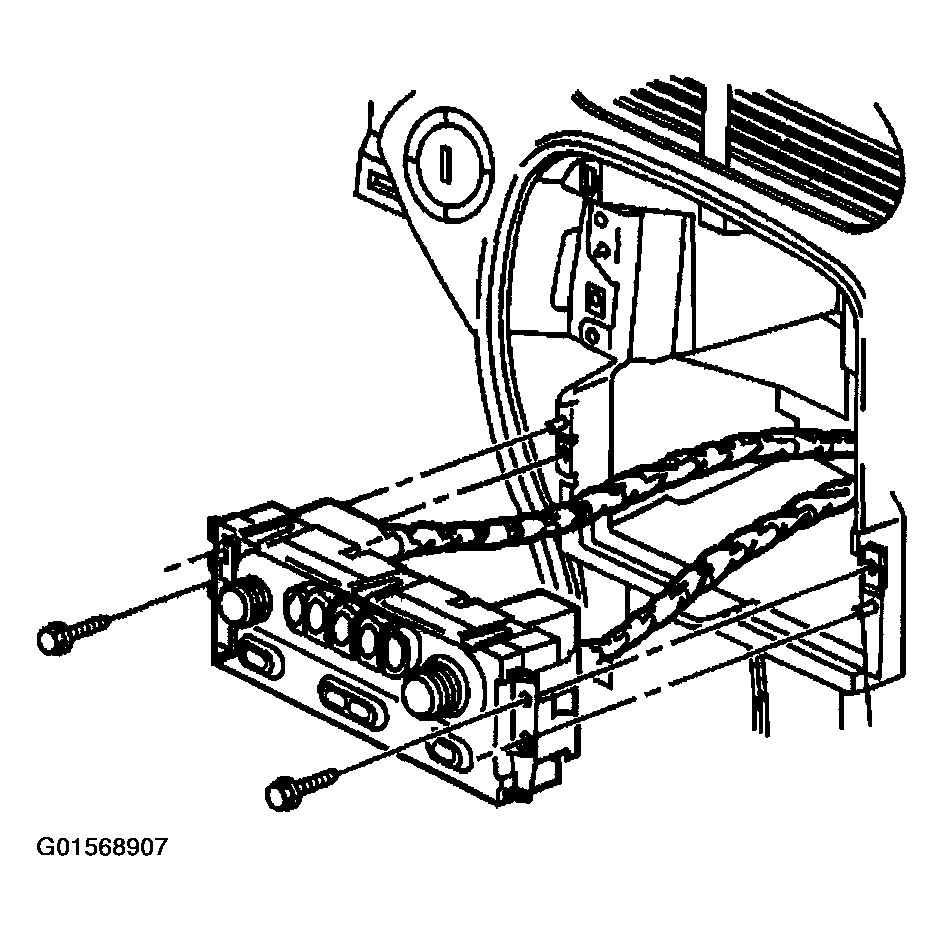

    Fig 1: Removing/Installing HVAC Control Module & Retaining Screws
    G01568907Courtesy of GENERAL MOTORS CORP.
  6. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
