Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  2. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  3. Disconnect the electrical connector from the right air temperature actuator.

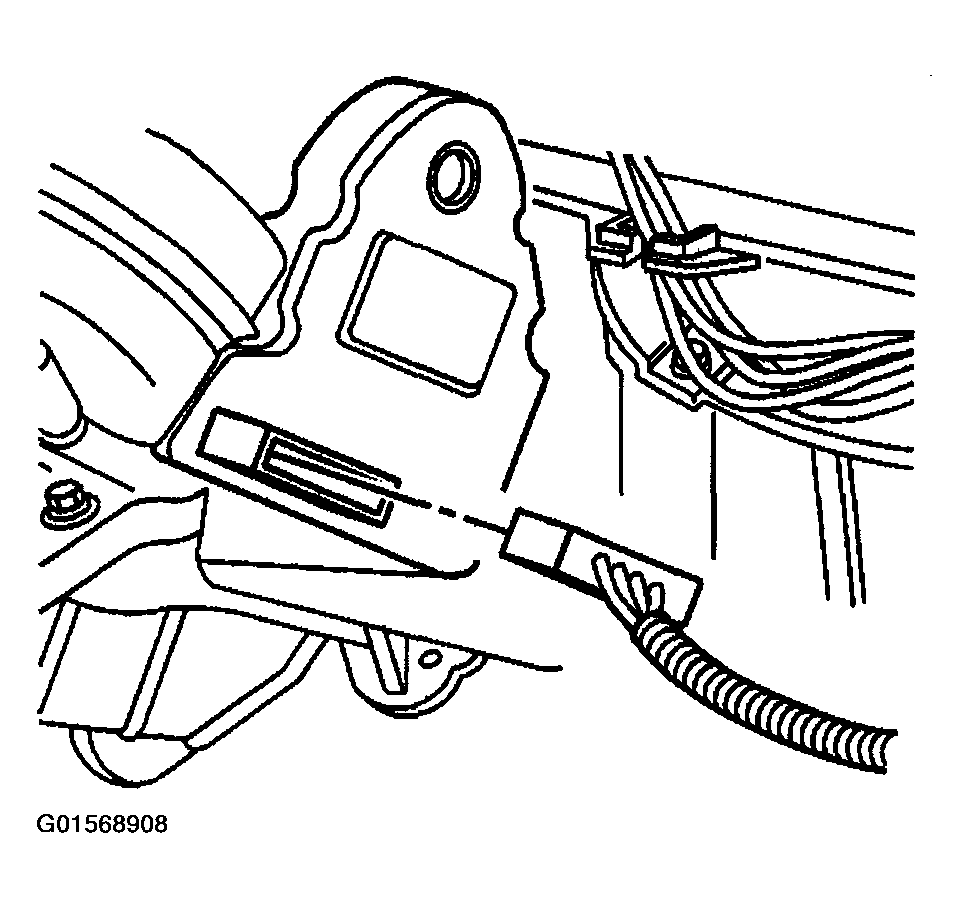

    Fig 1: Disconnecting Electrical Connector From Right Air Temperature Actuator
    G01568908Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws which secure the right air temperature actuator.
  5. Remove the electric actuator.

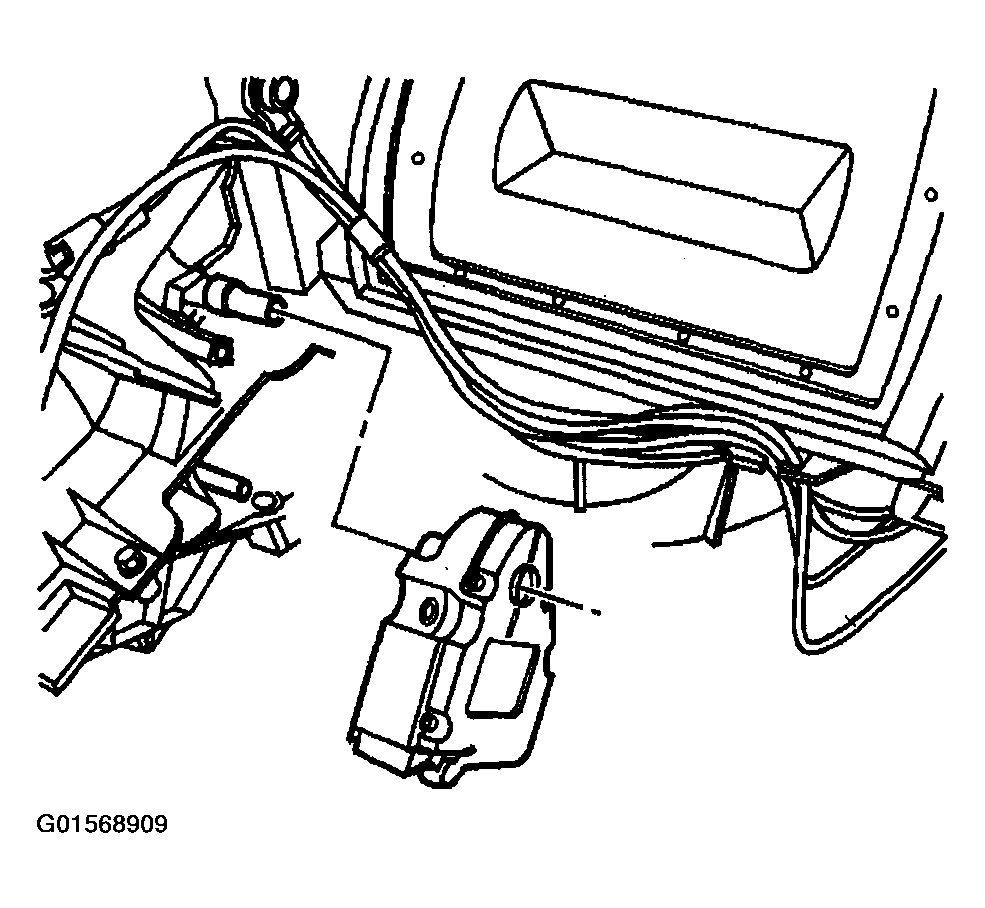

    Fig 2: Removing Right Air Temperature Actuator
    G01568909Courtesy of GENERAL MOTORS CORP.
