Compressor Pressure Relief Valve Removal (V5 - Conventional Mount)

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41790  Compressor Holding Fixture. See Special Tools and Equipment .

  1. Install the compressor into the J 41790  .
  2. Remove the pressure relief valve (2) from the rear head of the compressor.

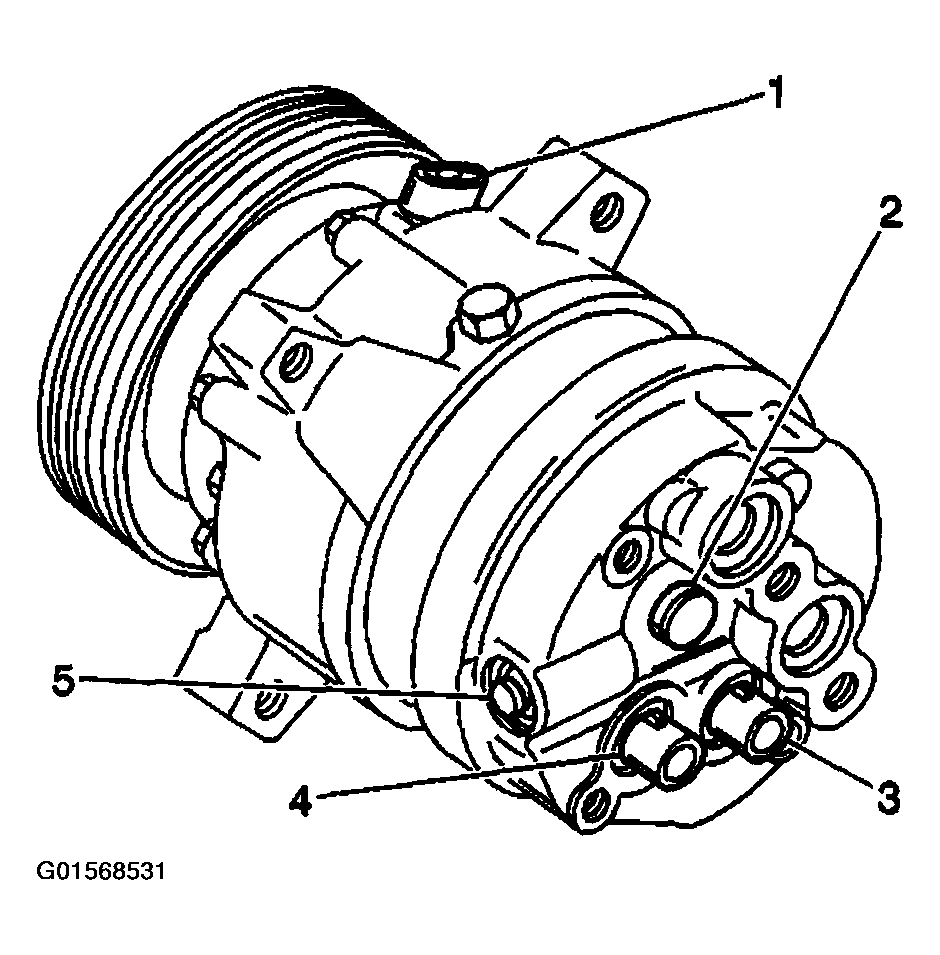

    Fig 1: Identifying Components Of Compressor (V5 - Conventional Mount)
    G01568531Courtesy of GENERAL MOTORS CORP.
