WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

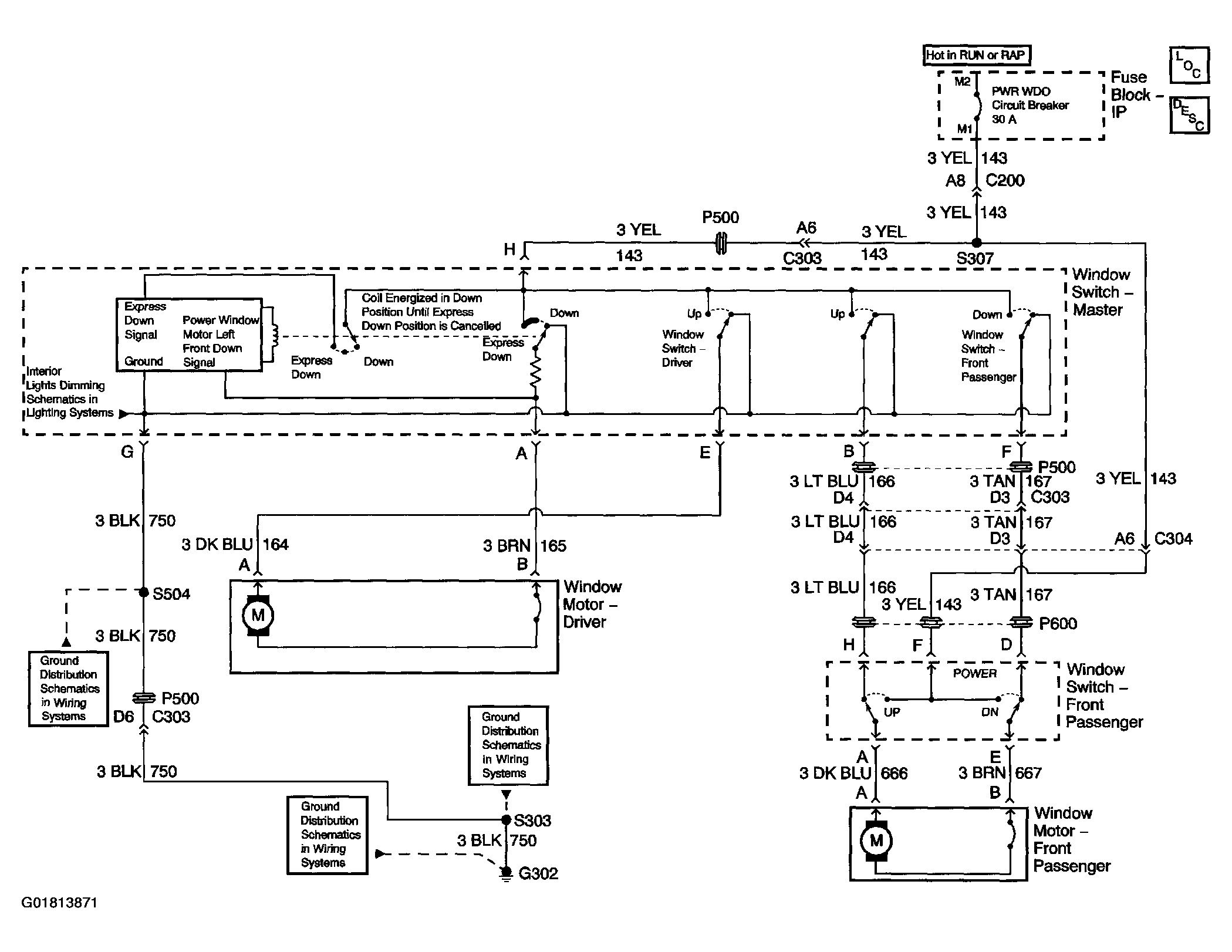

Fig 1: Power Window Schematics
Courtesy of GENERAL MOTORS CORP.

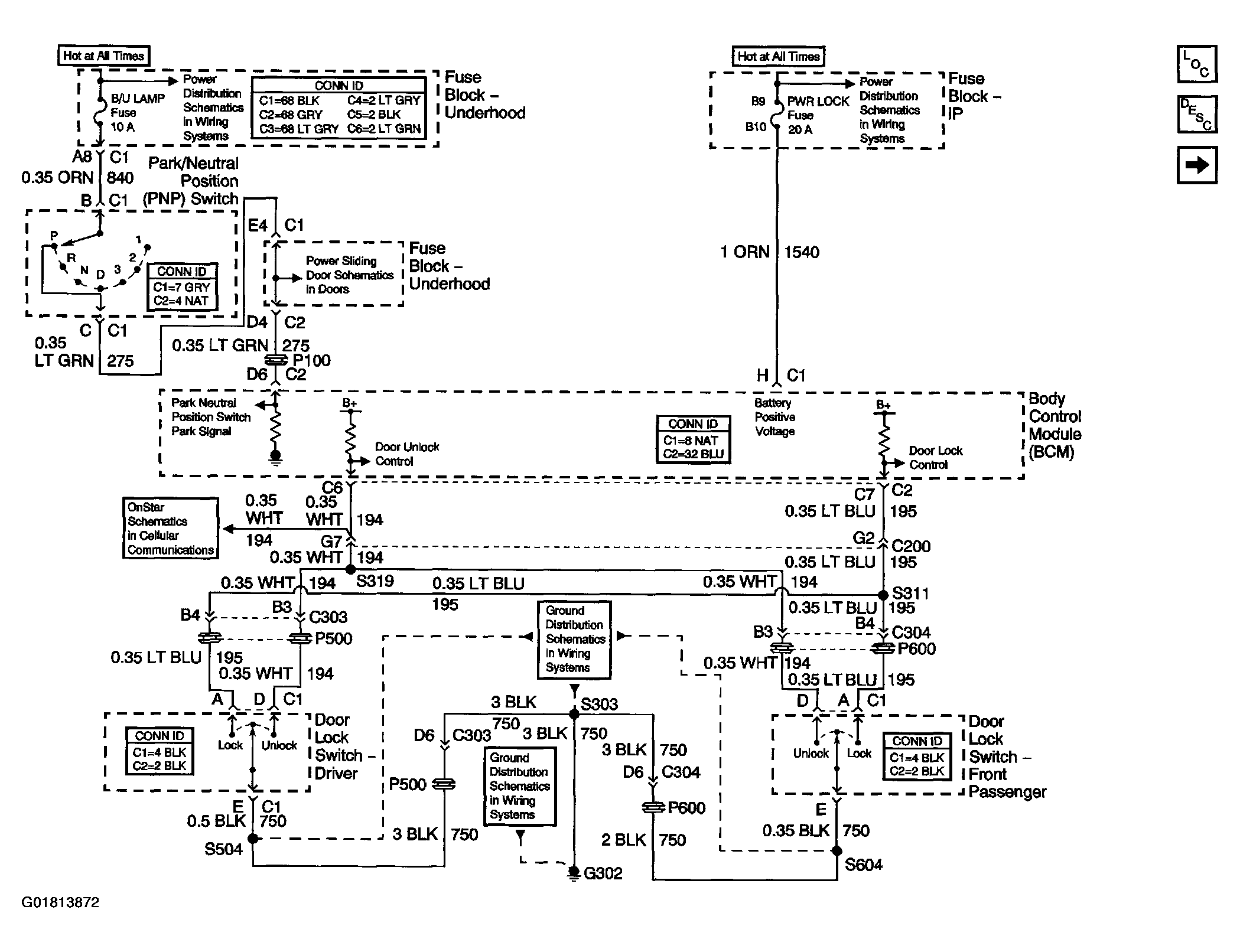

Fig 2: Door Lock/Indicator Schematics (Door Lock Switches)
Courtesy of GENERAL MOTORS CORP.

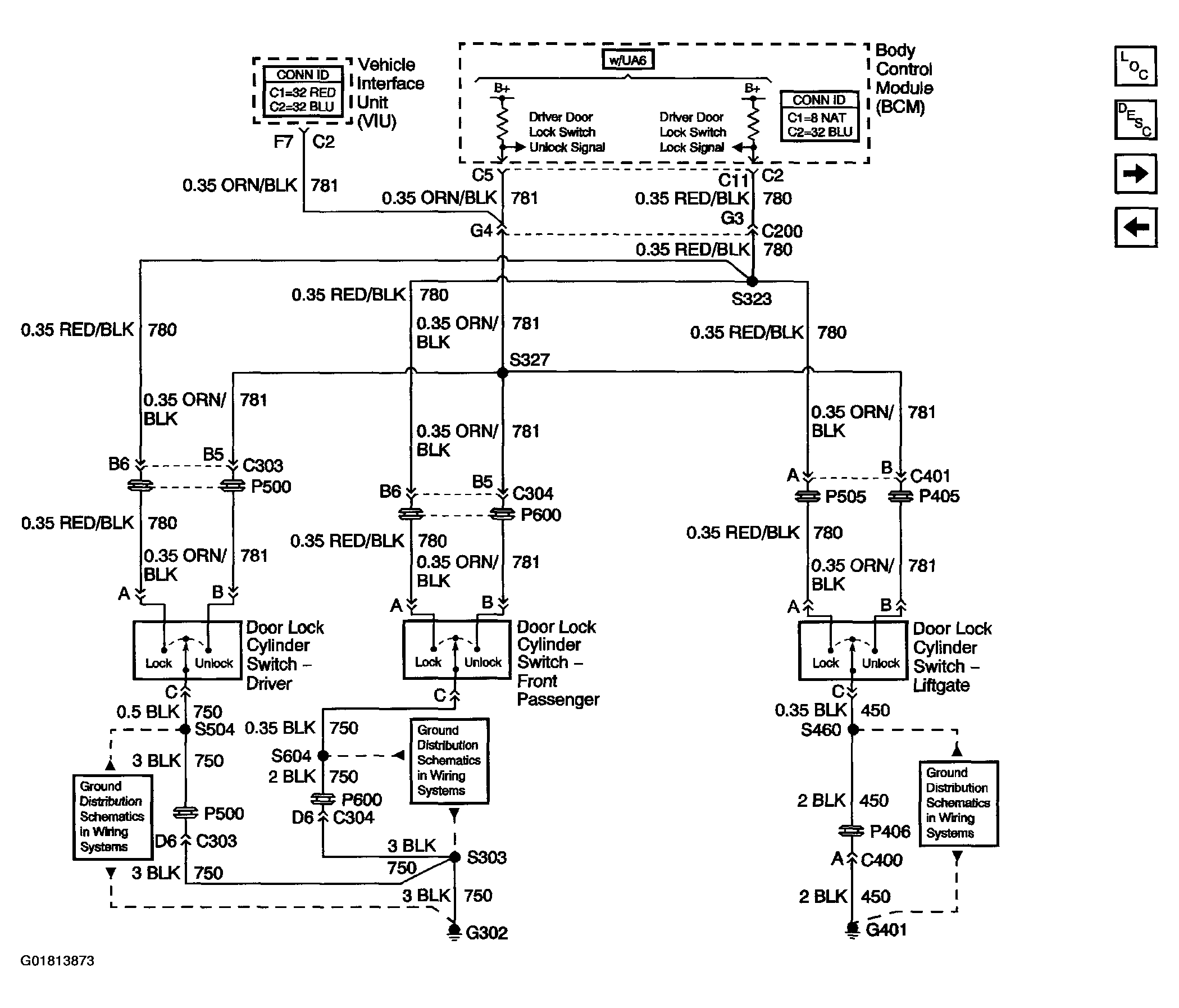

Fig 3: Door Lock/Indicator Schematics (Key Cylinder Switches)
Courtesy of GENERAL MOTORS CORP.

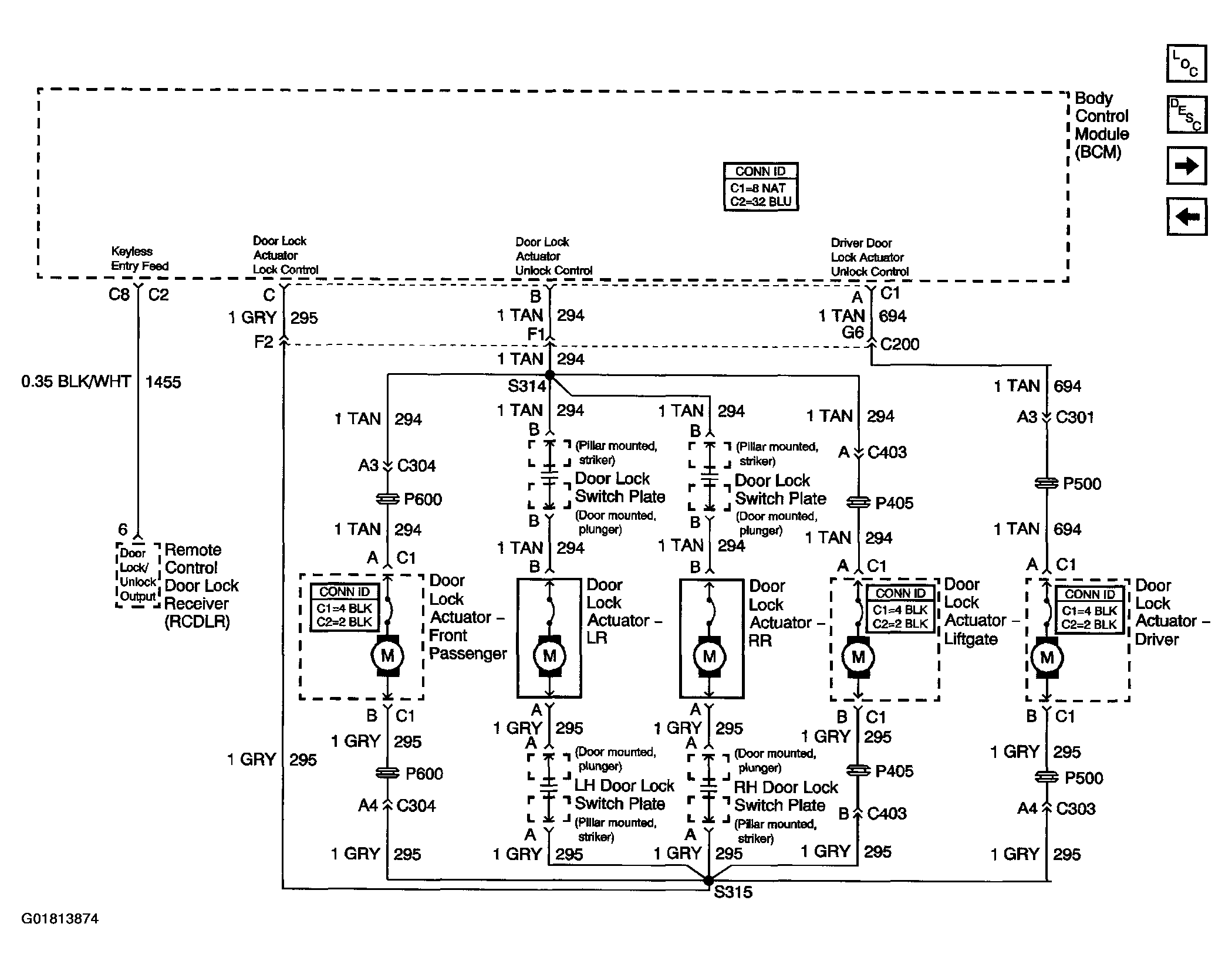

Fig 4: Door Lock/Indicator Schematics (Door Lock Actuators)
Courtesy of GENERAL MOTORS CORP.

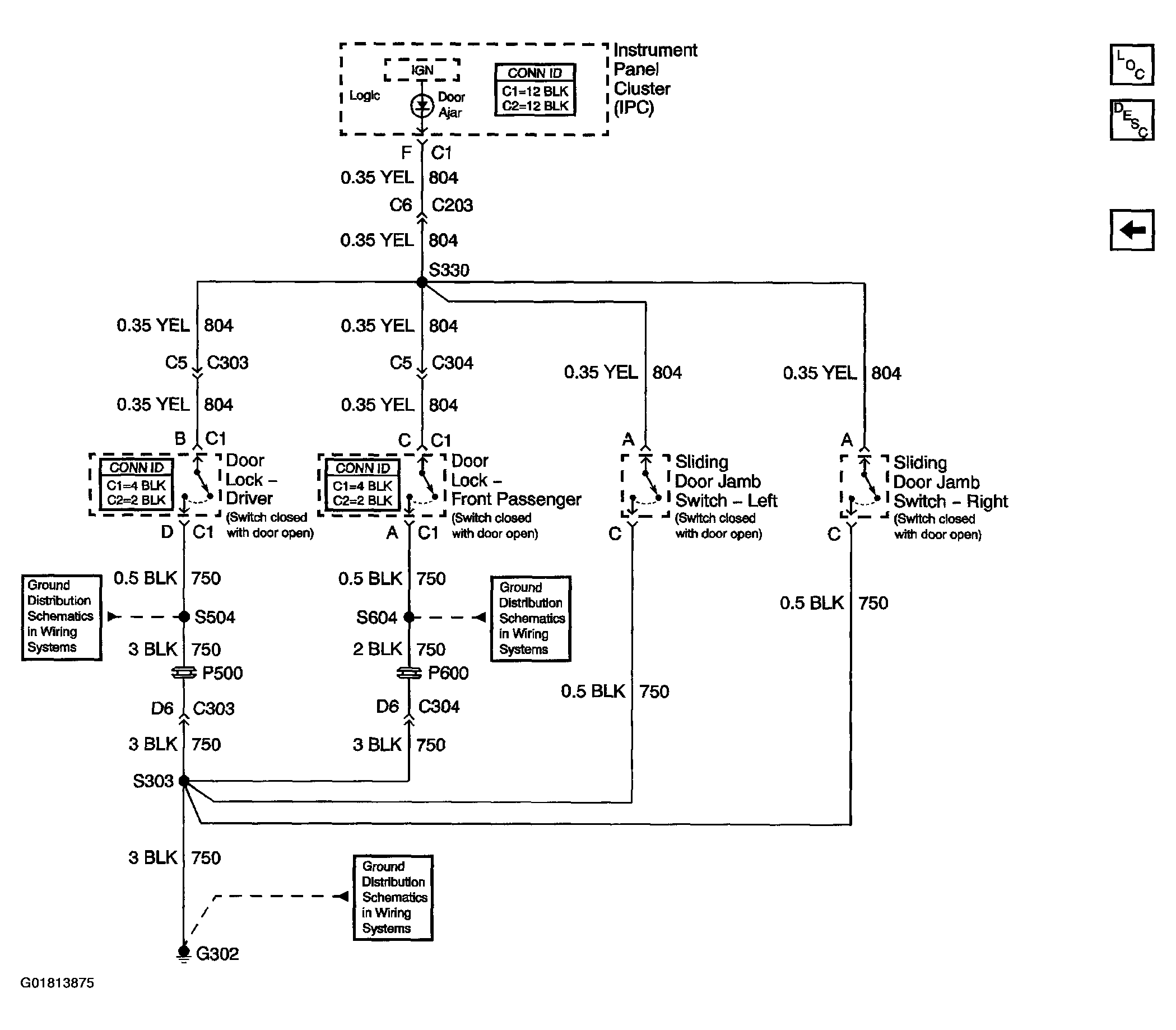

Fig 5: Door Lock/Indicator Schematics (IPC DOOR AJAR Telltale)
Courtesy of GENERAL MOTORS CORP.

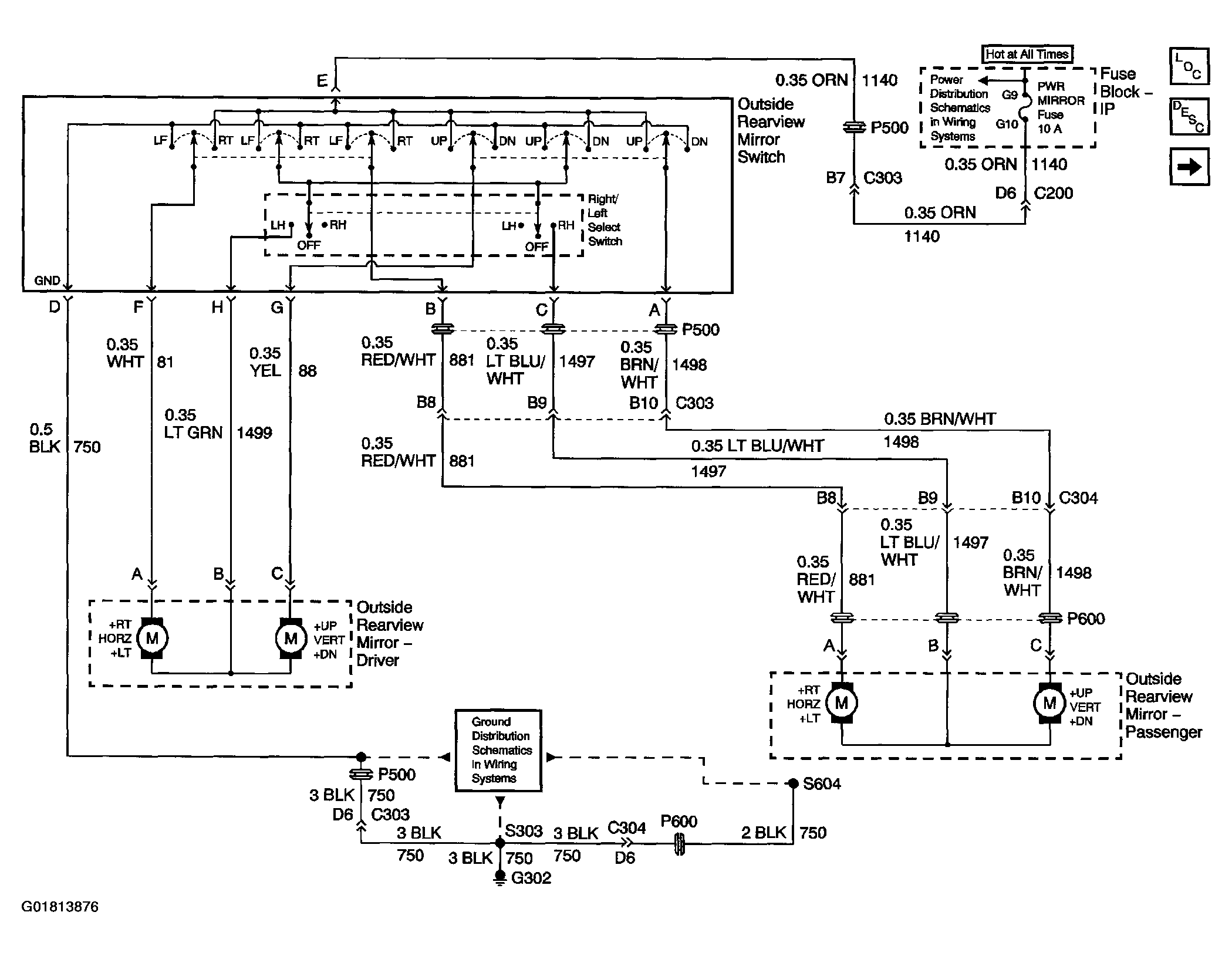

Fig 6: Outside Mirror Schematics (Power Mirrors)
Courtesy of GENERAL MOTORS CORP.

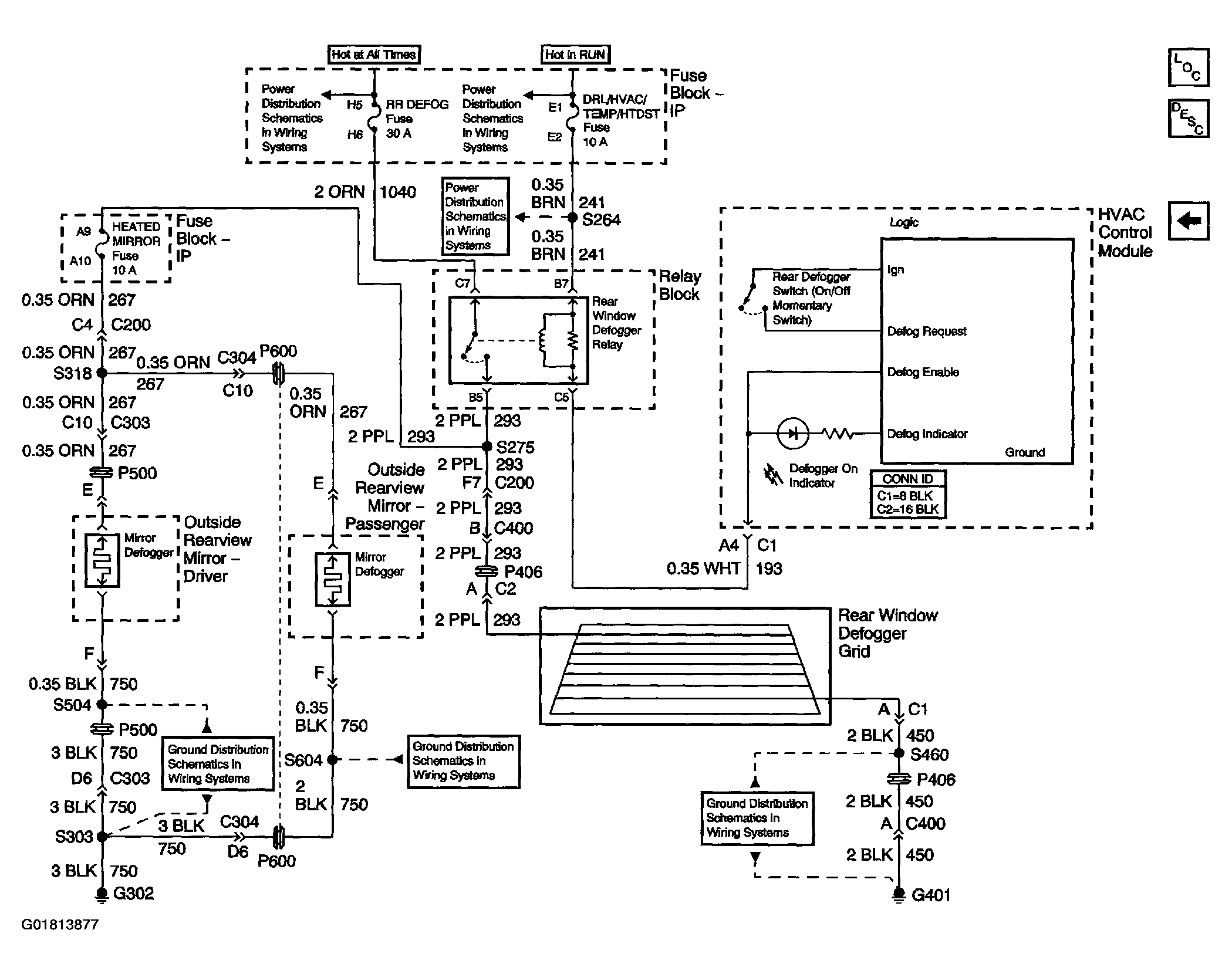

Fig 7: Outside Mirror Schematics (Heated Mirrors)
Courtesy of GENERAL MOTORS CORP.

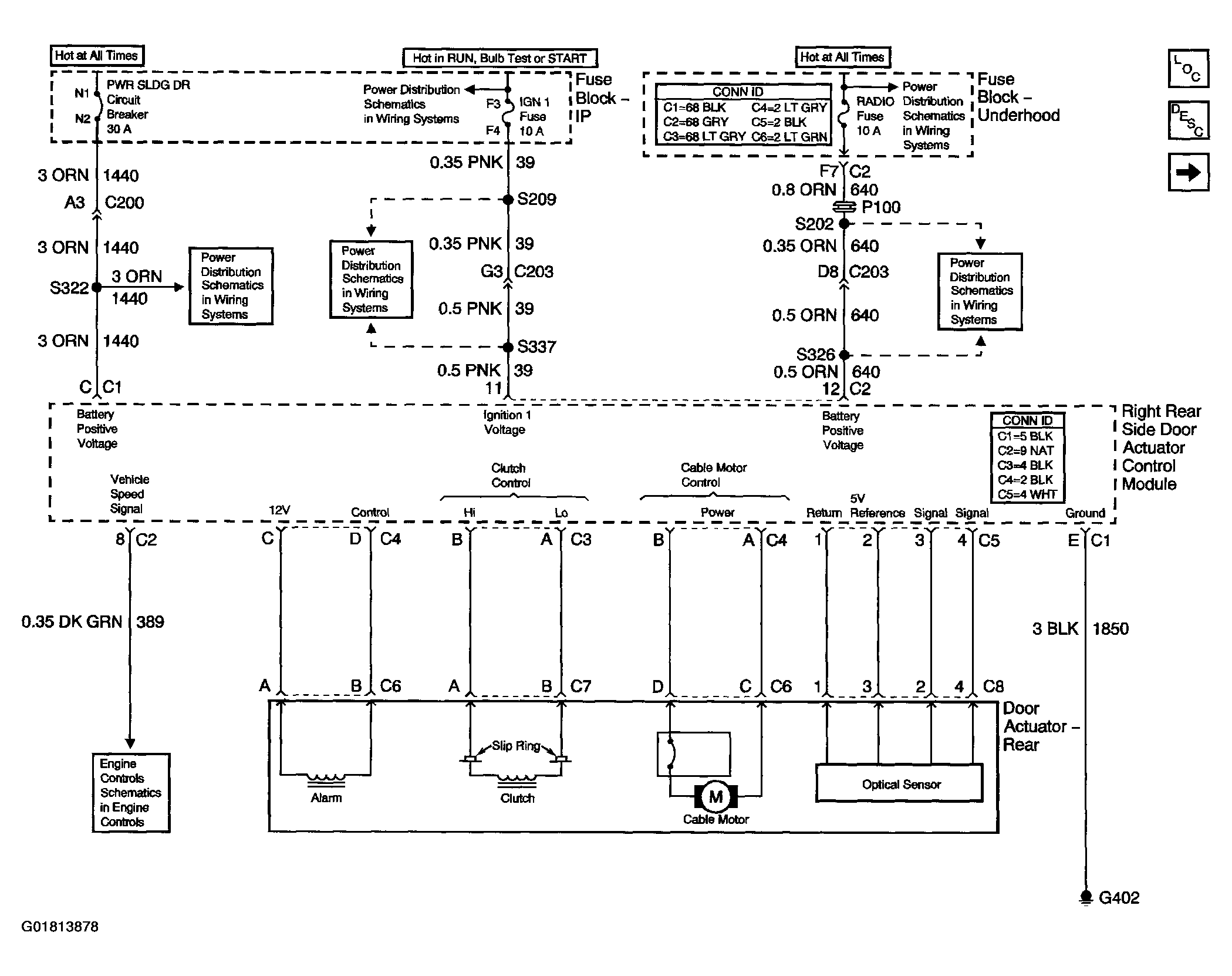

Fig 8: Power Sliding Door (PSD) Schematics (Right Door Power, Ground And PSD Motor)
Courtesy of GENERAL MOTORS CORP.

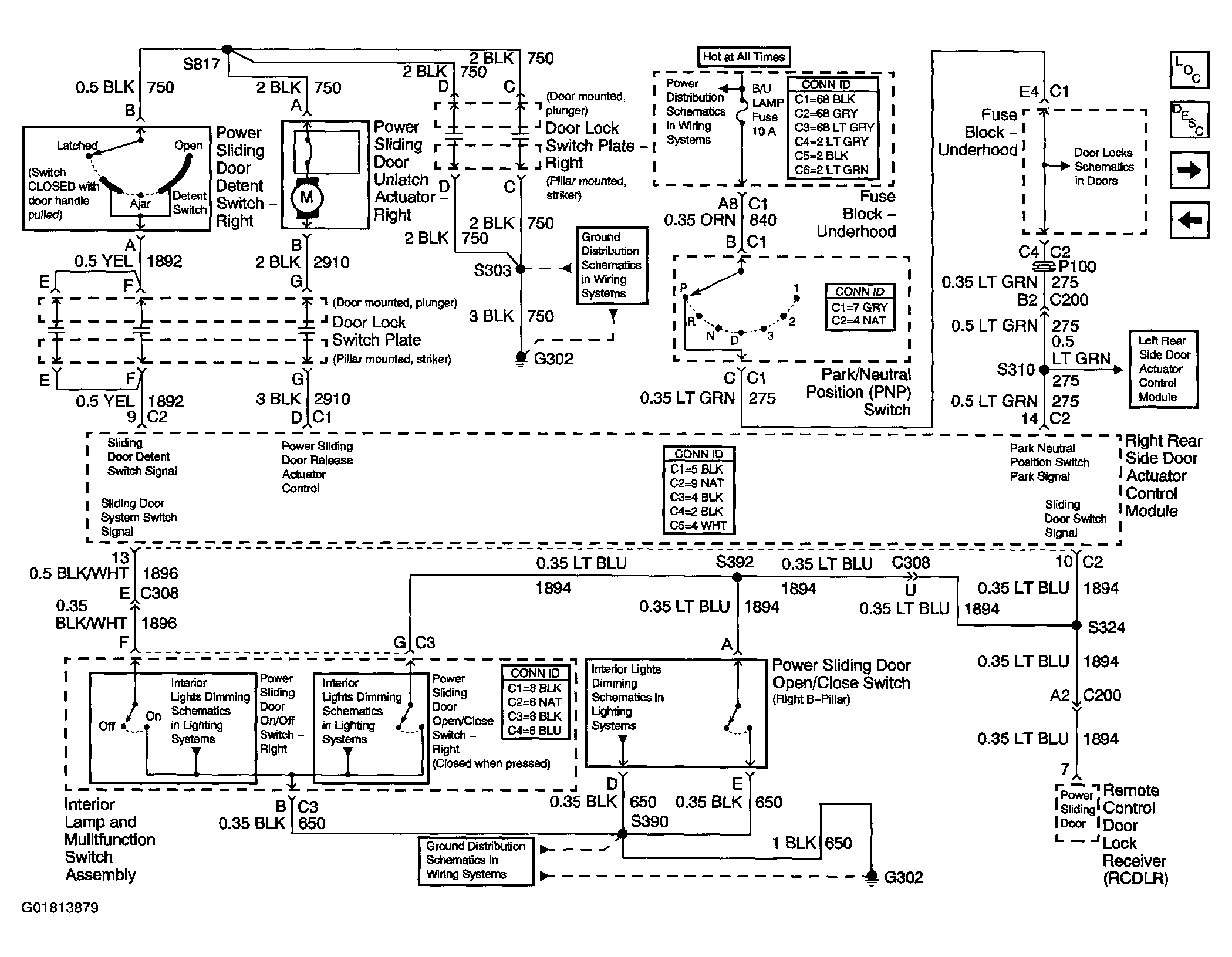

Fig 9: Power Sliding Door (PSD) Schematics (Right Door PSD Switches, Transmission Range Switch And RCDLR)
Courtesy of GENERAL MOTORS CORP.

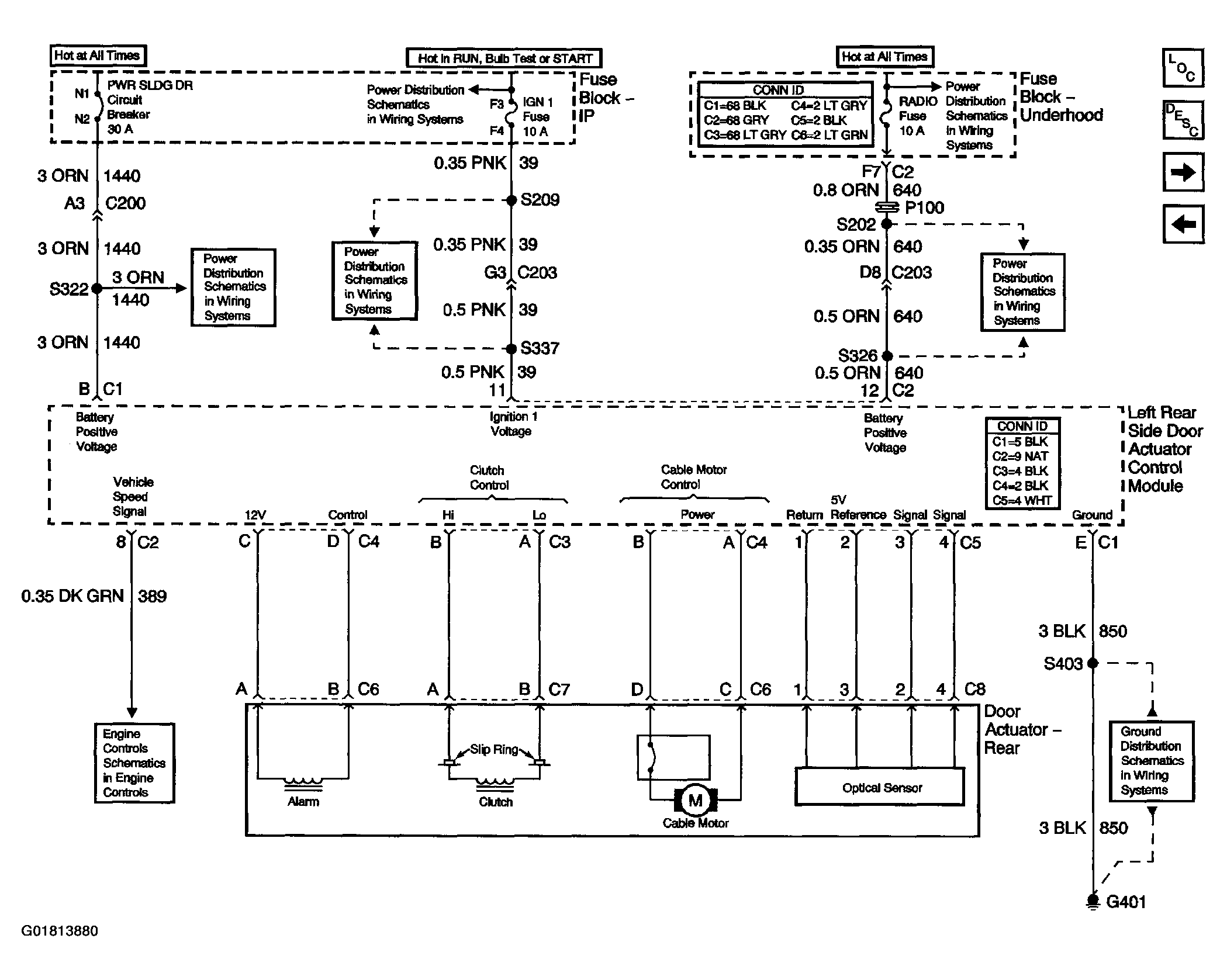

Fig 10: Power Sliding Door (PSD) Schematics (Left Door Power, Ground And PSD Motor)
Courtesy of GENERAL MOTORS CORP.

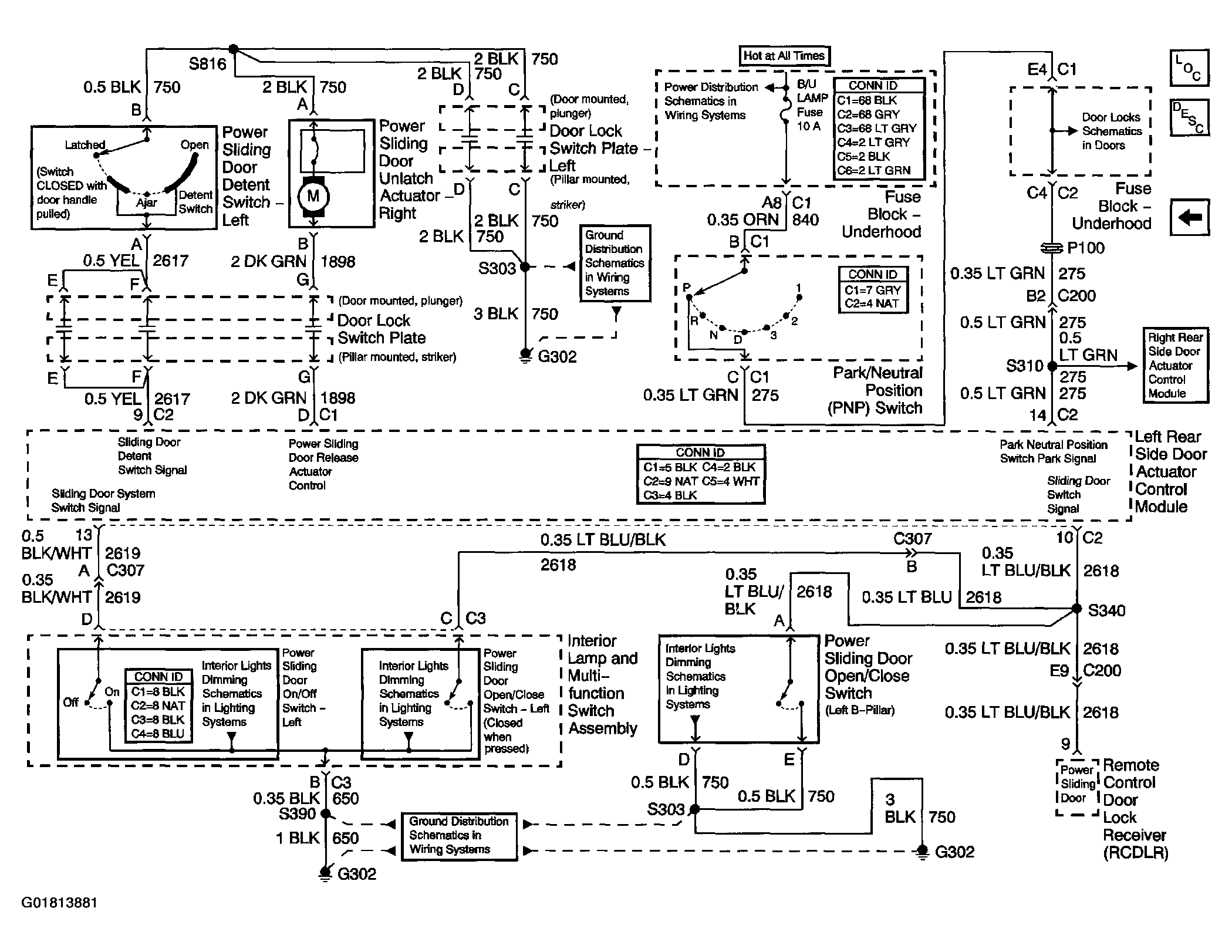

Fig 11: Power Sliding Door (PSD) Schematics (Left Door PSD Switches, Transmission Range Switch And RCDLR)
