Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sliding door garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR .
Use a small flat-bladed tool in order to remove the sliding door swing out window access hole plugs from the sliding door.

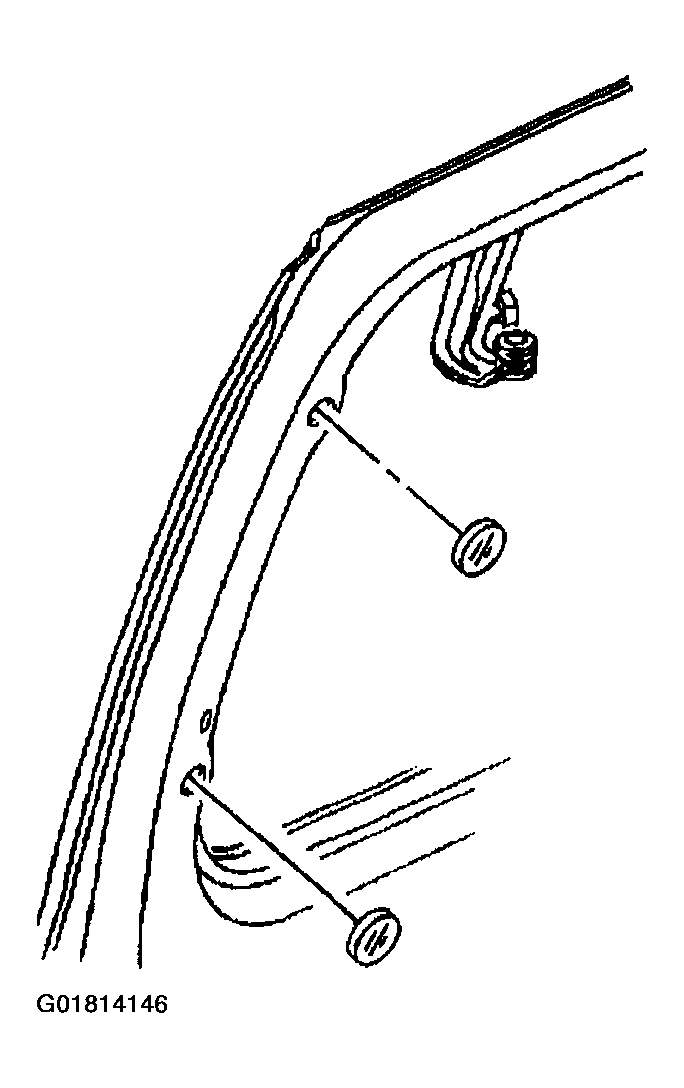

Fig 1: Removing Sliding Door Swing Out Window Access Hole Plugs
Courtesy of GENERAL MOTORS CORP.
Remove the sliding door swing out window latch screws.

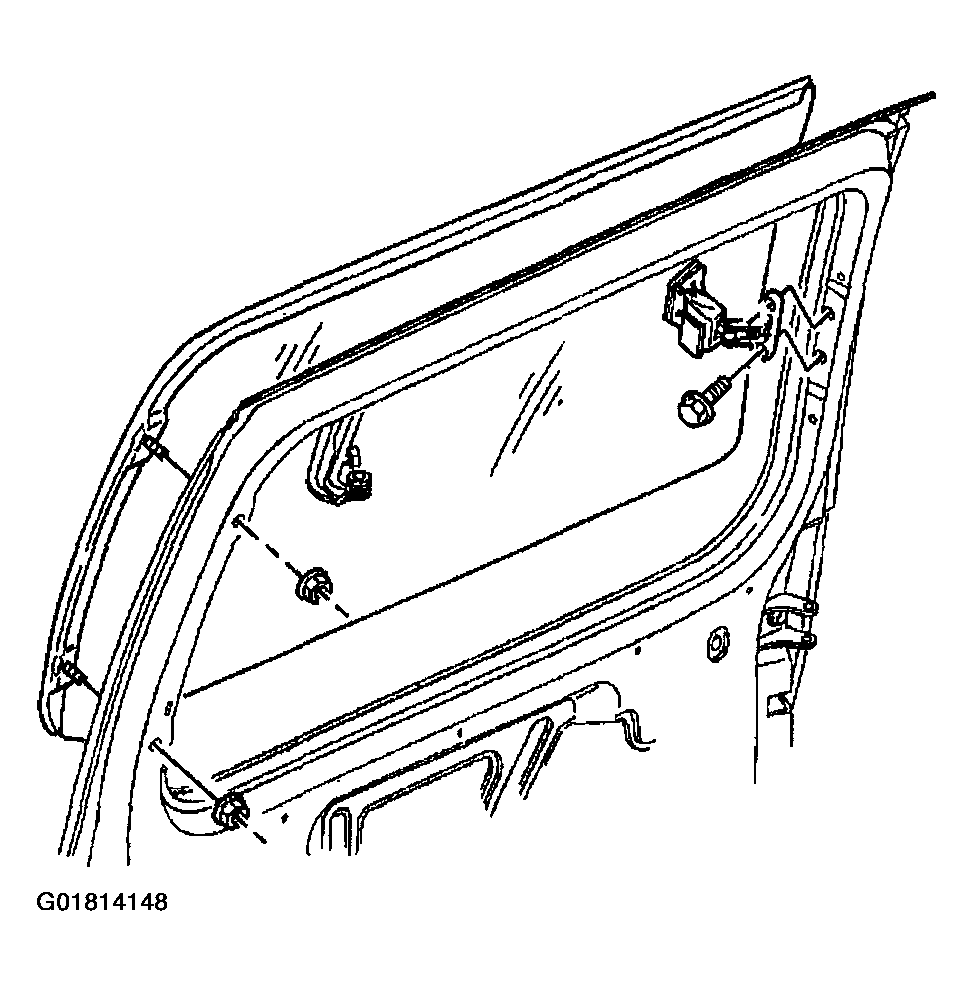

Fig 2: Removing Sliding Door Swing Out Window Latch & Screws
Courtesy of GENERAL MOTORS CORP.
Remove the sliding door swing out window hinge stud nuts.
Remove the sliding door swing out window from the sliding door.

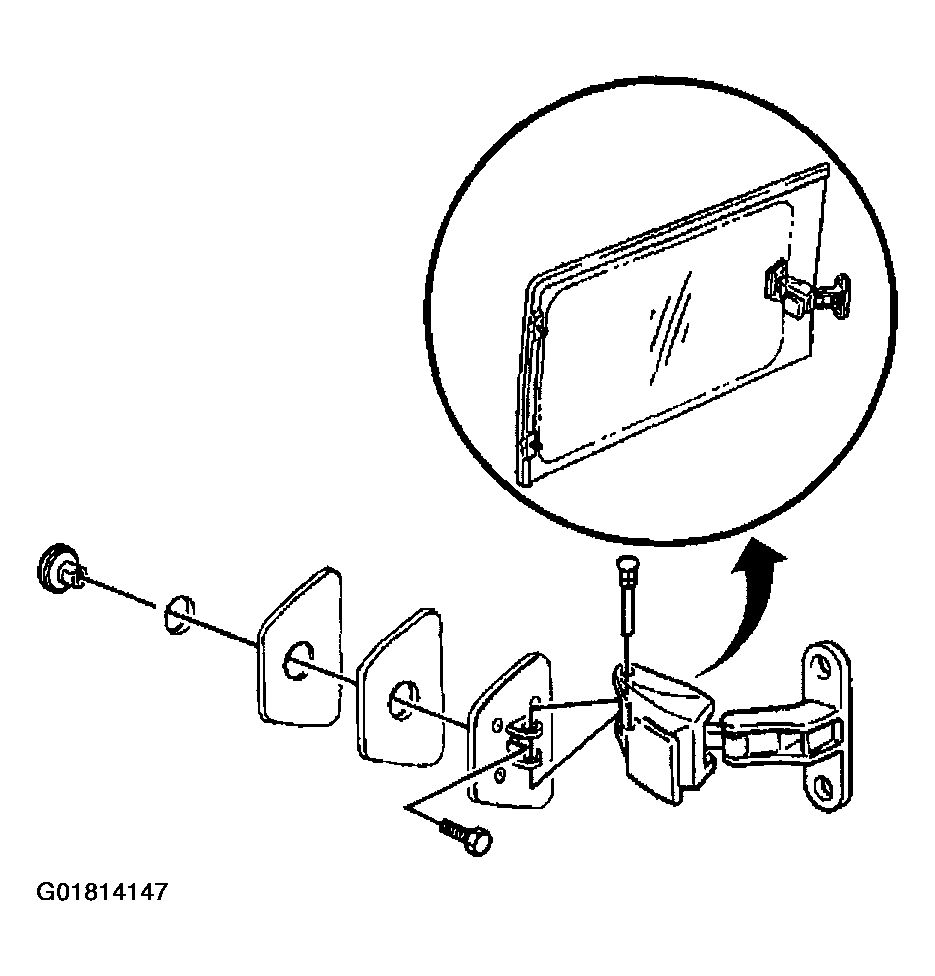

Fig 3: Removing Sliding Door Swing Out Window Hinge, Stud & Nuts
Courtesy of GENERAL MOTORS CORP.
