Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When working with any type of glass, use approved safety glasses and gloves to reduce the chance of personal injury.
  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the front door window inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  3. Using a small flat-bladed tool, press in on the retaining tabs to release the front door window from the front door window regulator track.
  4. Slide the front door window from the lower run channel.

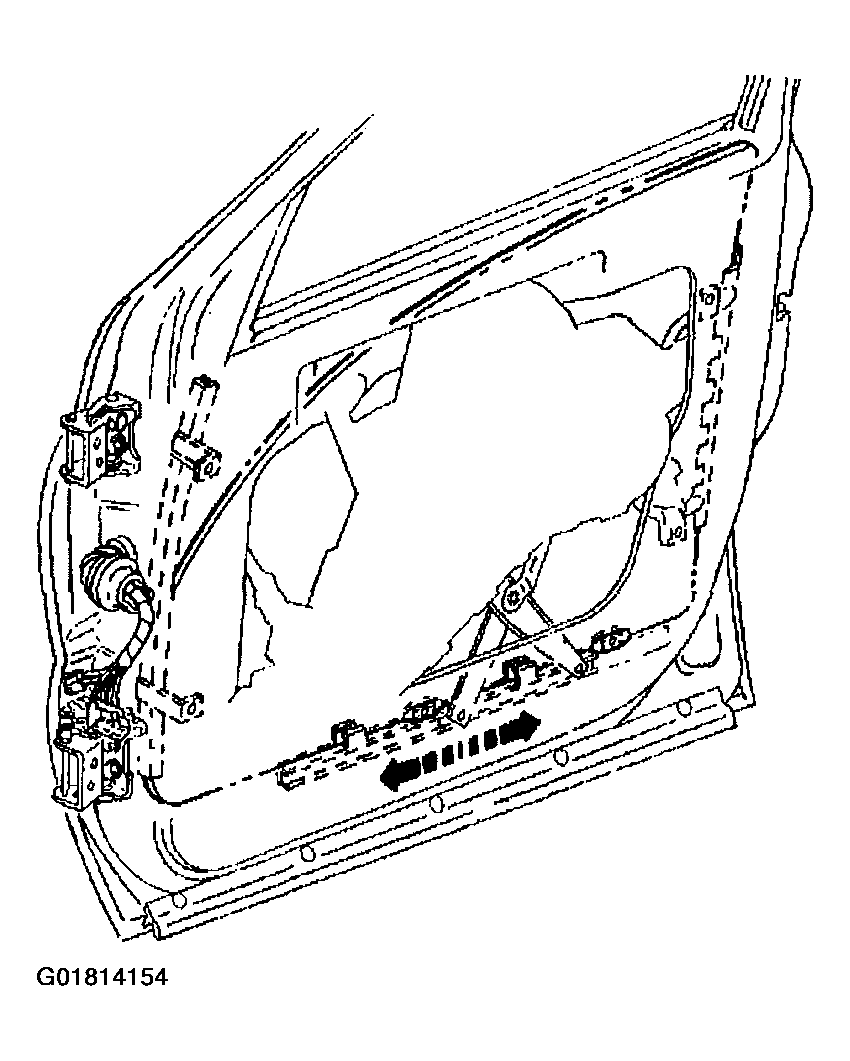

    Fig 1: Removing Front Door Window Inner Belt Sealing Strip
    G01814154Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door window from the front door.

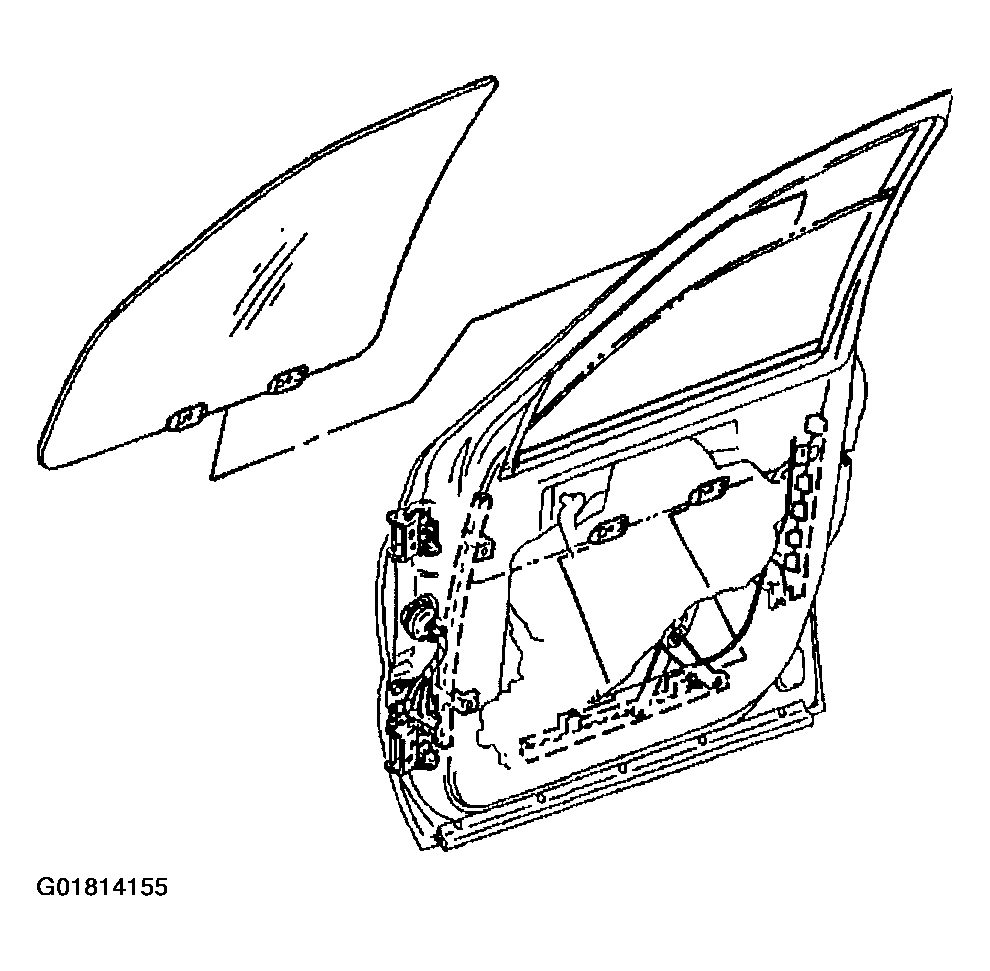

    Fig 2: Removing Front Door Window
    G01814155Courtesy of GENERAL MOTORS CORP.
