Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the weatherstrip to the door frame.
  2. Install the front door window. Refer to Window Replacement - Front Door .
  3. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .

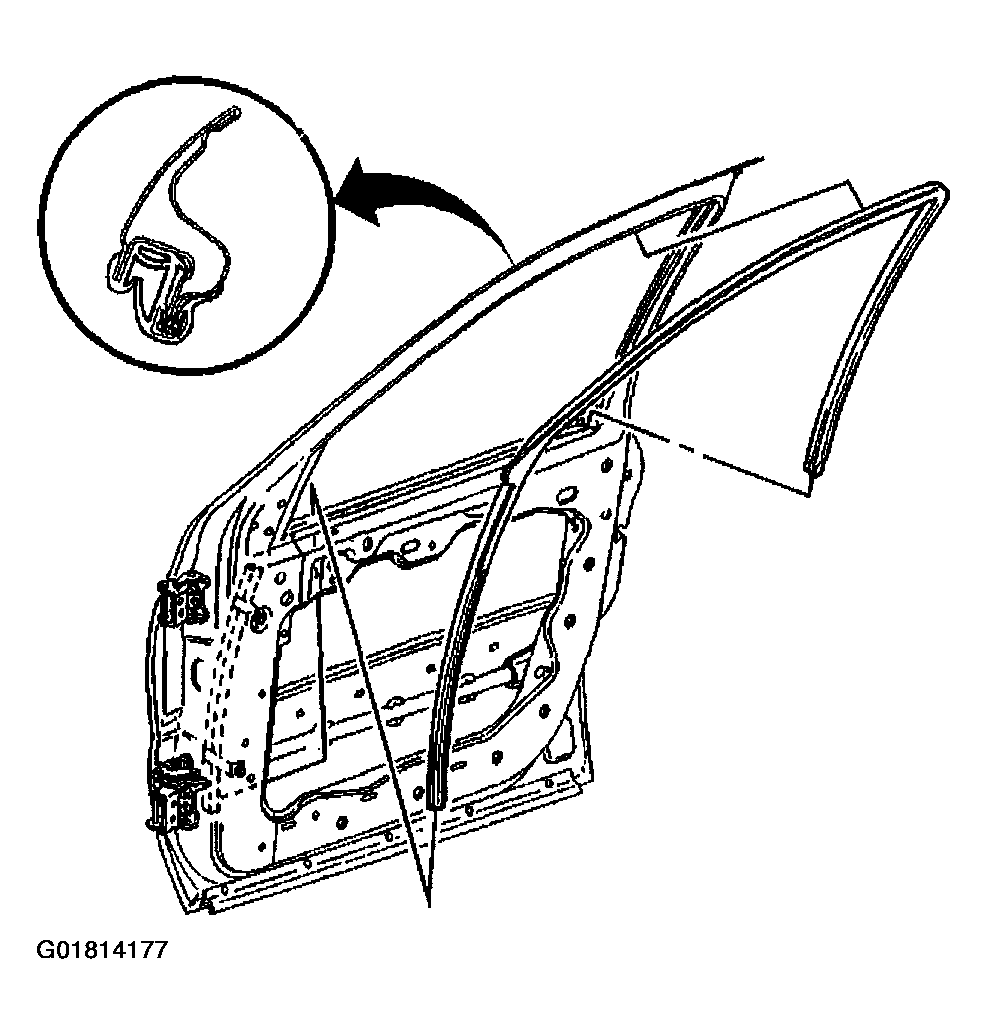

    Fig 1: Installing Weatherstrip To Door Frame (Window)
    G01814177Courtesy of GENERAL MOTORS CORP.
