Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door swing out window. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  2. Pull the sliding door window weatherstrip from the pinch-weld flange.
  3. Remove the sliding door window weatherstrip from the sliding door.

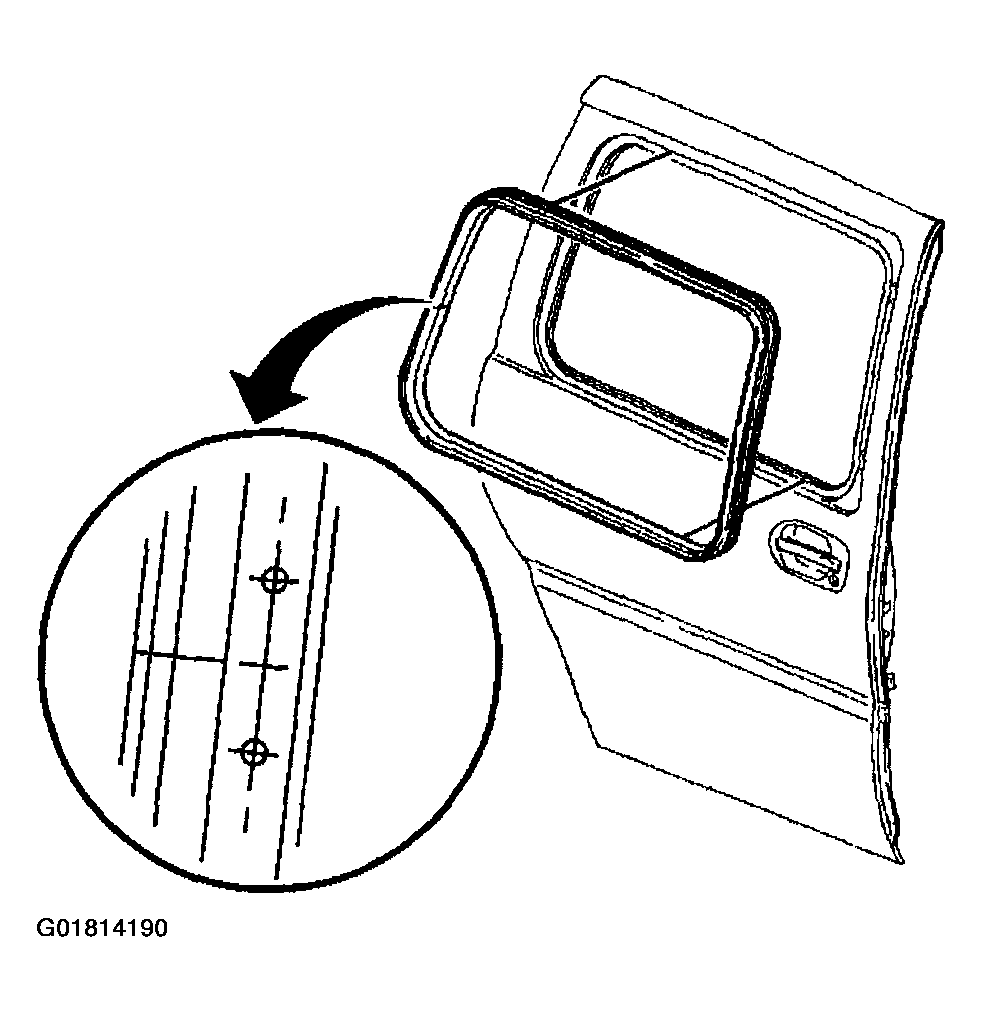

    Fig 1: Removing Sliding Door Window Weatherstrip From Sliding Door
    G01814190Courtesy of GENERAL MOTORS CORP.
