Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door opening sill plates. Refer to DOOR SILL PLATE REPLACEMENT (DOOR) or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR) .
  2. Pull the front door opening weatherstrip from the front door pinch-weld flange.
  3. Clean all adhesive from the pinch-weld flange.

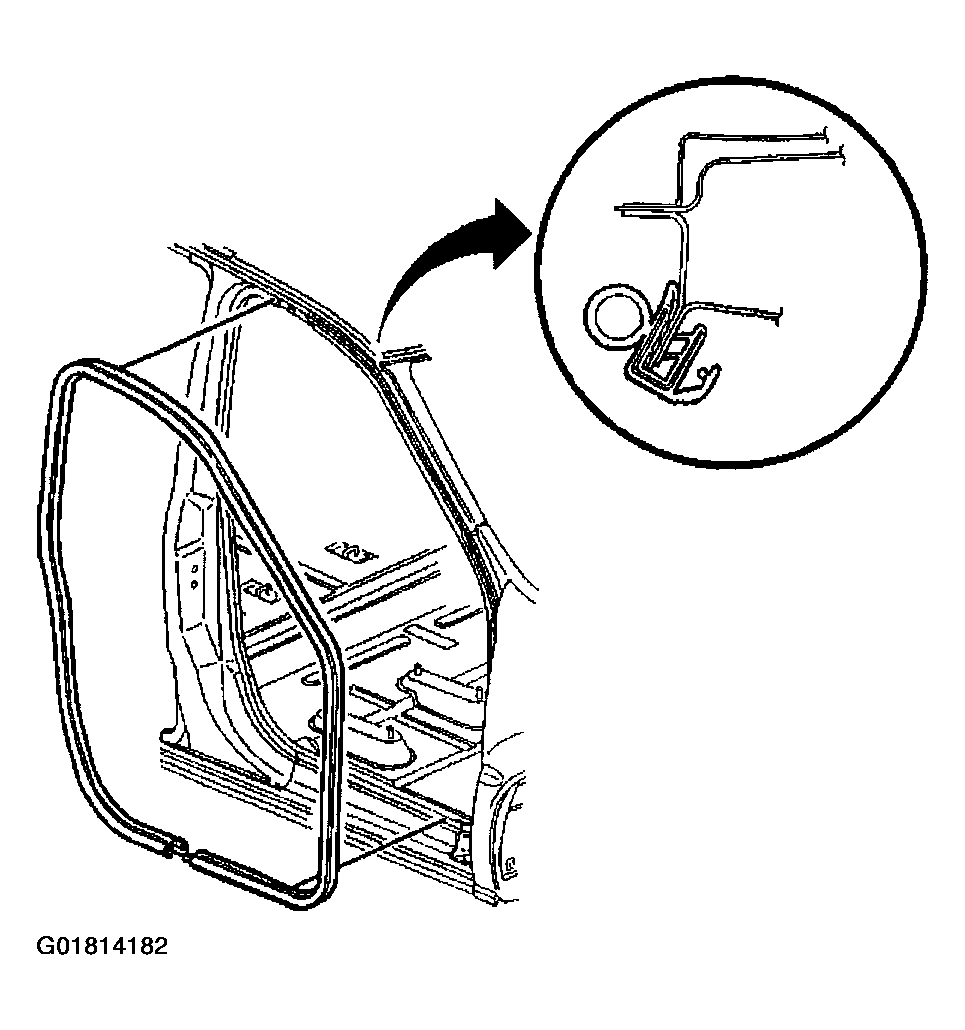

    Fig 1: Removing Front Door Opening Weatherstrip
    G01814182Courtesy of GENERAL MOTORS CORP.
