Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door inner trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Sliding Door .
  3. Remove the auxiliary water deflector.

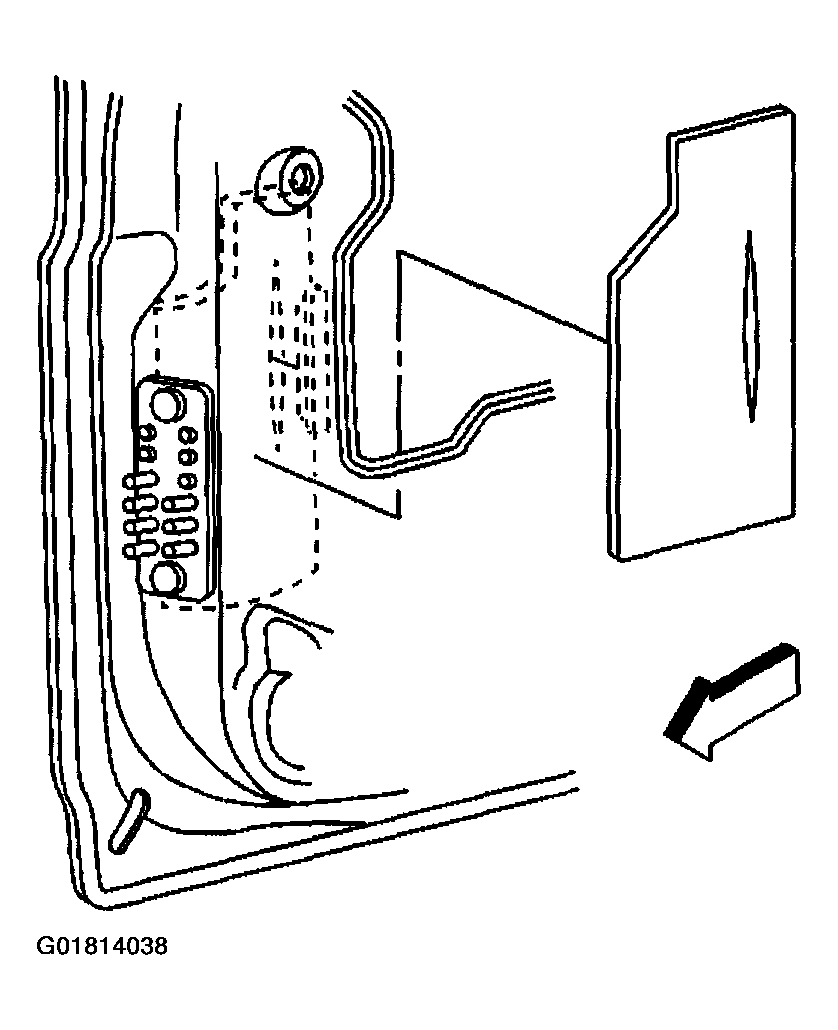

    Fig 1: Removing Auxiliary Water Deflector
    G01814038Courtesy of GENERAL MOTORS CORP.
