Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the front door trim plate. Refer to Door Trim Plate Replacement .
  3. Remove the front door manual window regulator handle if equipped. Refer to Window Regulator Handle Replacement - Door .
  4. Remove the armrest screws.
  5. Route the electrical harness through the front door trim panel opening.
  6. Use J 38778  in order to remove the front door trim panel from the door.
  7. Use J 38778  in order to pry the front door trim panel from the door frame at the window seal.
  8. Remove the front door trim panel from the door.

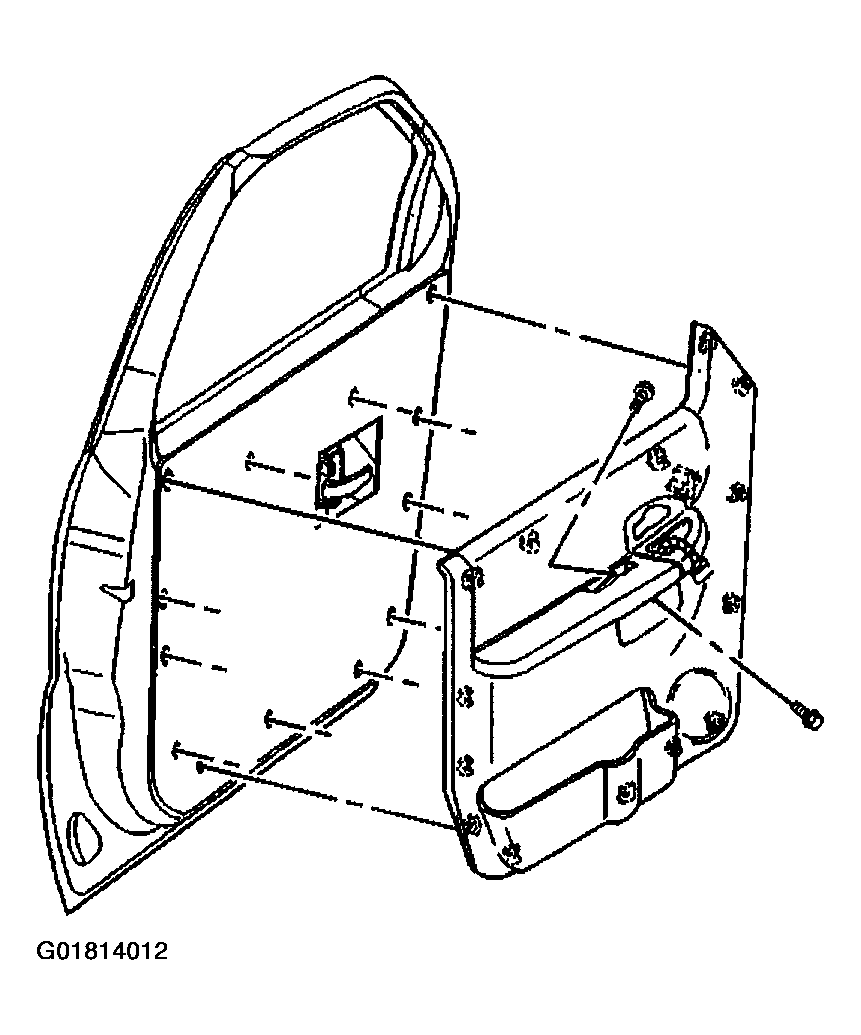

    Fig 1: Removing Front Door Trim Panel
    G01814012Courtesy of GENERAL MOTORS CORP.
