Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door striker screws.
  2. Remove the sliding door striker and the shim from the C-pillar.

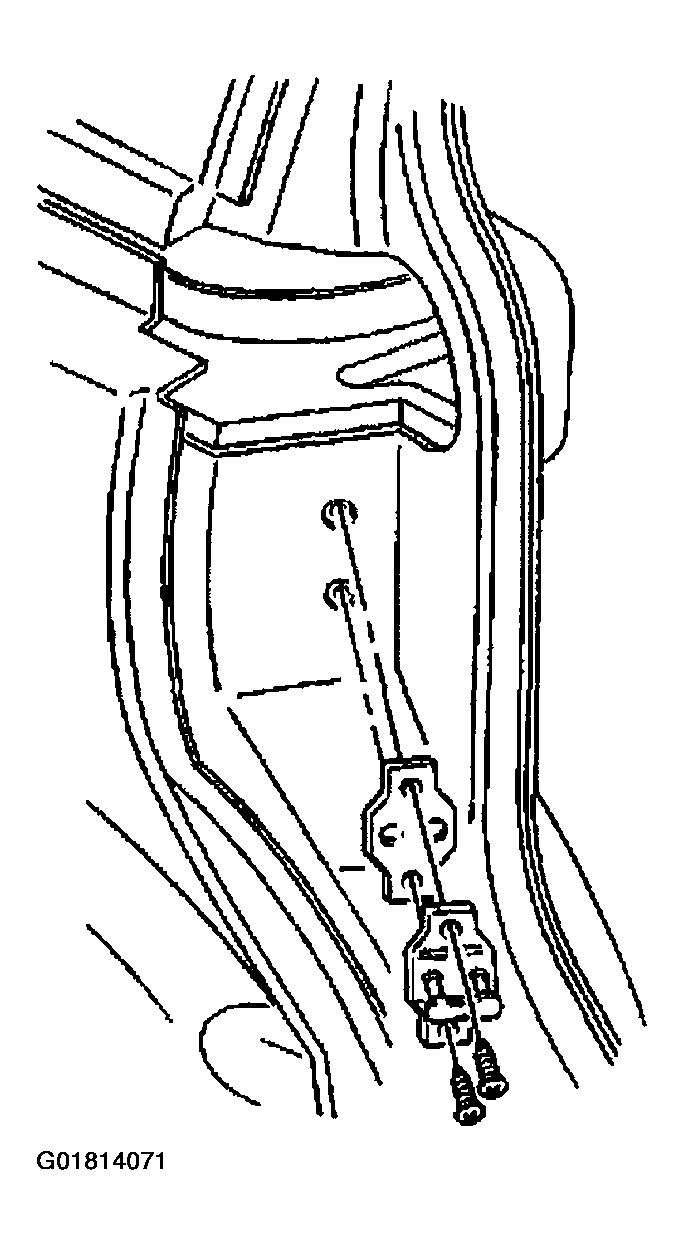

    Fig 1: Removing Sliding Door Striker Screws
    G01814071Courtesy of GENERAL MOTORS CORP.
