Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the front door window.
  2. Remove the outside rearview mirror. Refer to Mirror Replacement - Power (With Turn Signal Indicator)  or Mirror Replacement - Power (Without Turn Signal Indicator) .
  3. Use a flat-bladed tool in order to pry up at the front of the outer belt sealing strip from the inside edge.
  4. Remove the front door outer belt window sealing strip from the pinch-weld flange.

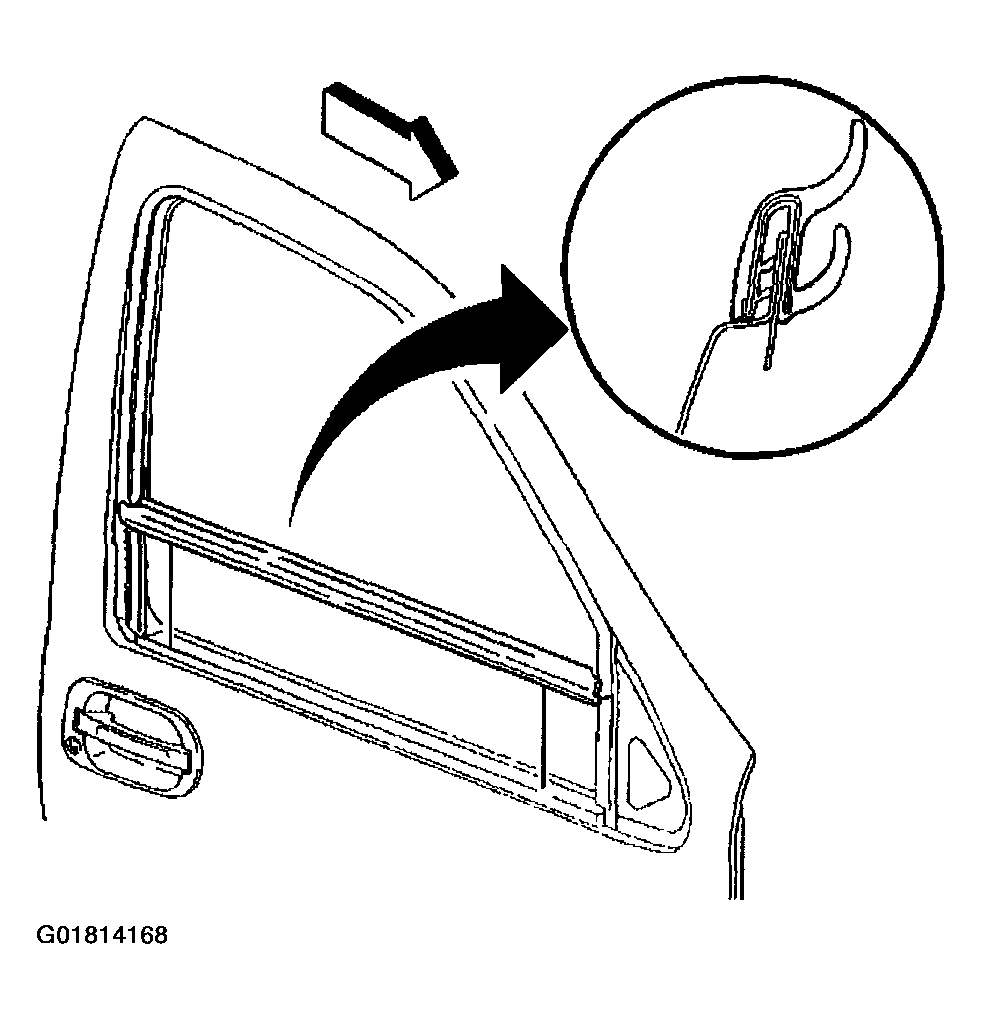

    Fig 1: Removing Front Door Outer Belt Window Sealing Strip
    G01814168Courtesy of GENERAL MOTORS CORP.
