Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Lower the front door window.
  3. Remove the front door inner belt window sealing strip by lifting off the pinch-weld flange.

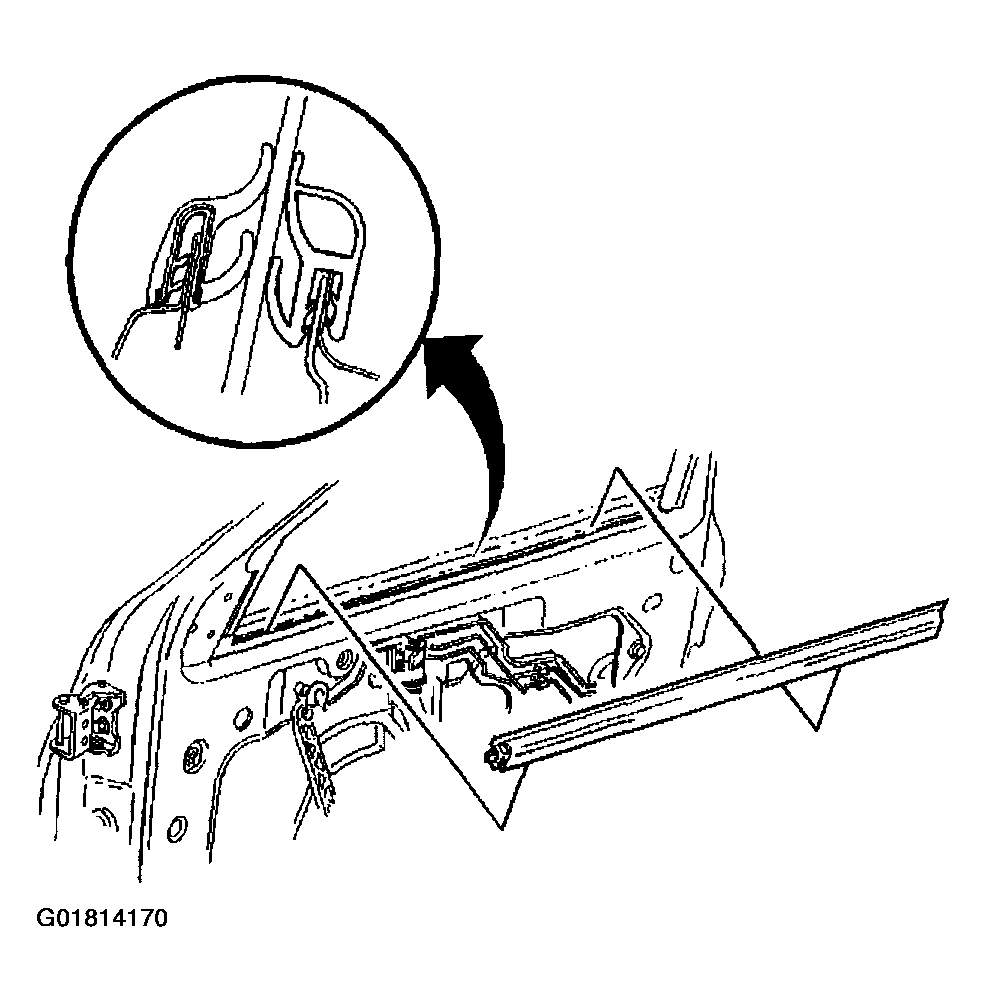

    Fig 1: Removing Front Door Inner Belt Window Sealing Strip
    G01814170Courtesy of GENERAL MOTORS CORP.
