Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a heat gun in order to heat the front door auxiliary weatherstrip.
    1. 1.1. Hold the heat gun approximately 152 mm (6 in) from the surface.
    2. 1.2. Apply the heat using a circular motion for approximately 30 seconds.
  2. Use a plastic flat-bladed tool in order to peel the front door auxiliary weatherstrip from the panel surface.
  3. DO NOT damage the paint during removal of the auxiliary weatherstrip.
  4. Use oil-free naphtha in order to clean the body panel.

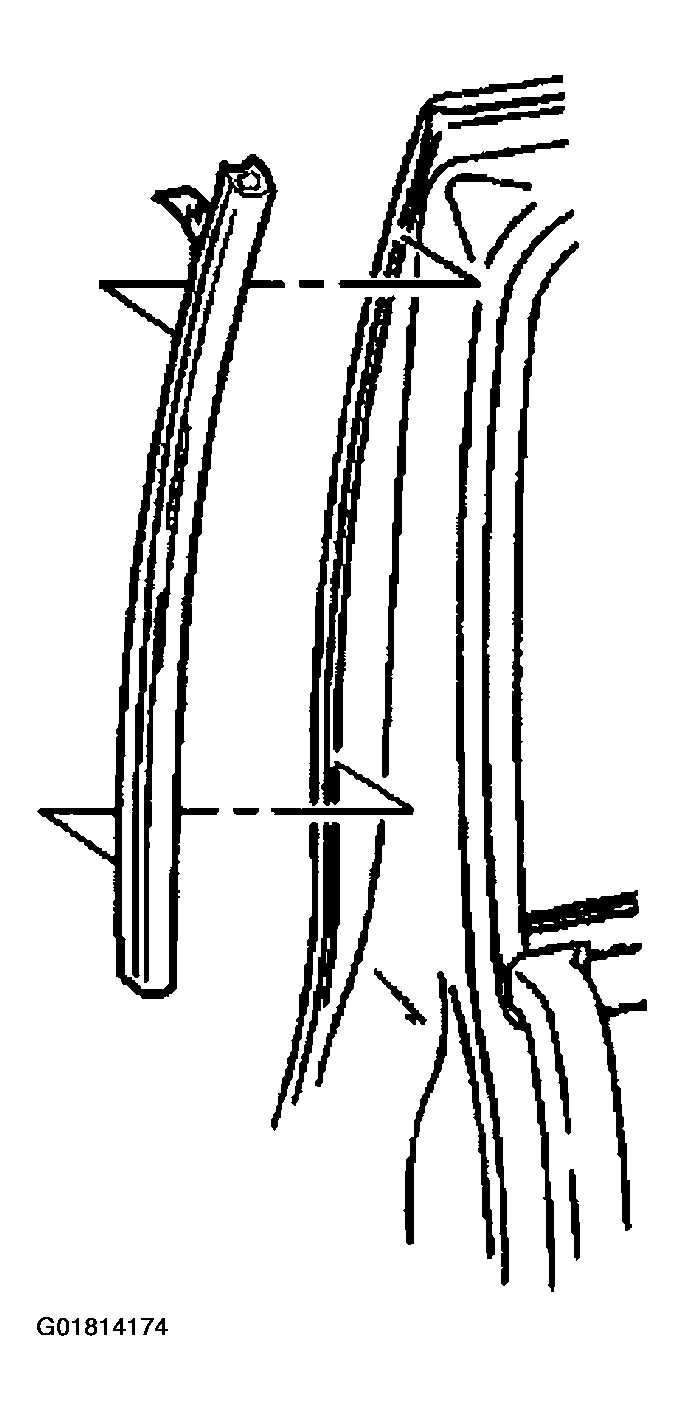

    Fig 1: Removing Front Door Auxiliary Weatherstrip
    G01814174Courtesy of GENERAL MOTORS CORP.
