Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Disconnect the front door rubber conduit from the front door body side.
  3. Remove the front door electrical harness electrical connector through the opening in the front door body side pillar.
  4. Disconnect the front door electrical harness electrical connector.
  5. Disconnect the front door rubber conduit from the front door.

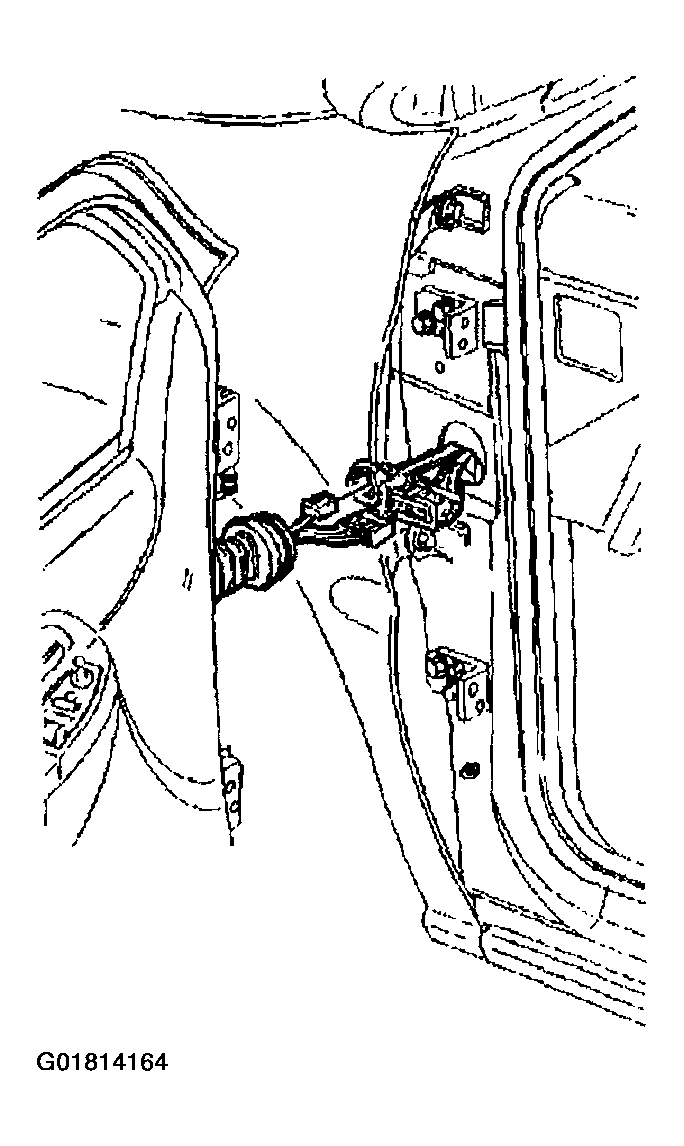

    Fig 1: Removing Front Door Electrical Harness Electrical Connector
    G01814164Courtesy of GENERAL MOTORS CORP.
  6. Remove the front door rubber conduit from the front door electrical harness.

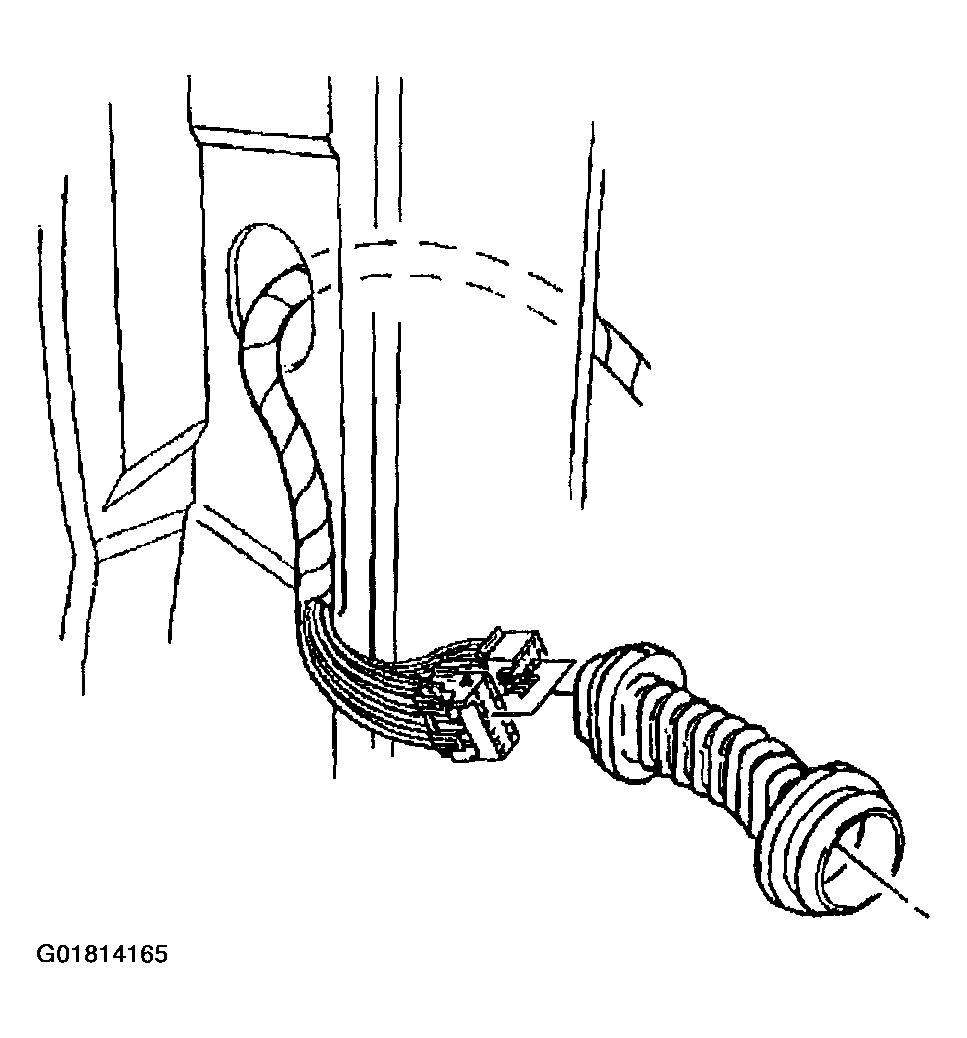

    Fig 2: Removing Front Door Rubber Conduit
    G01814165Courtesy of GENERAL MOTORS CORP.
