Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR .
  2. Remove the headliner trim finish molding. Refer to HEADLINING TRIM FINISH MOLDING REPLACEMENT .
  3. Support the sliding door.
  4. Mark the location of the sliding door upper roller bracket to the door with a grease pencil.
  5. Remove the sliding door upper roller bracket bolts.
  6. Remove the sliding door upper roller bracket from the front edge of the upper track.

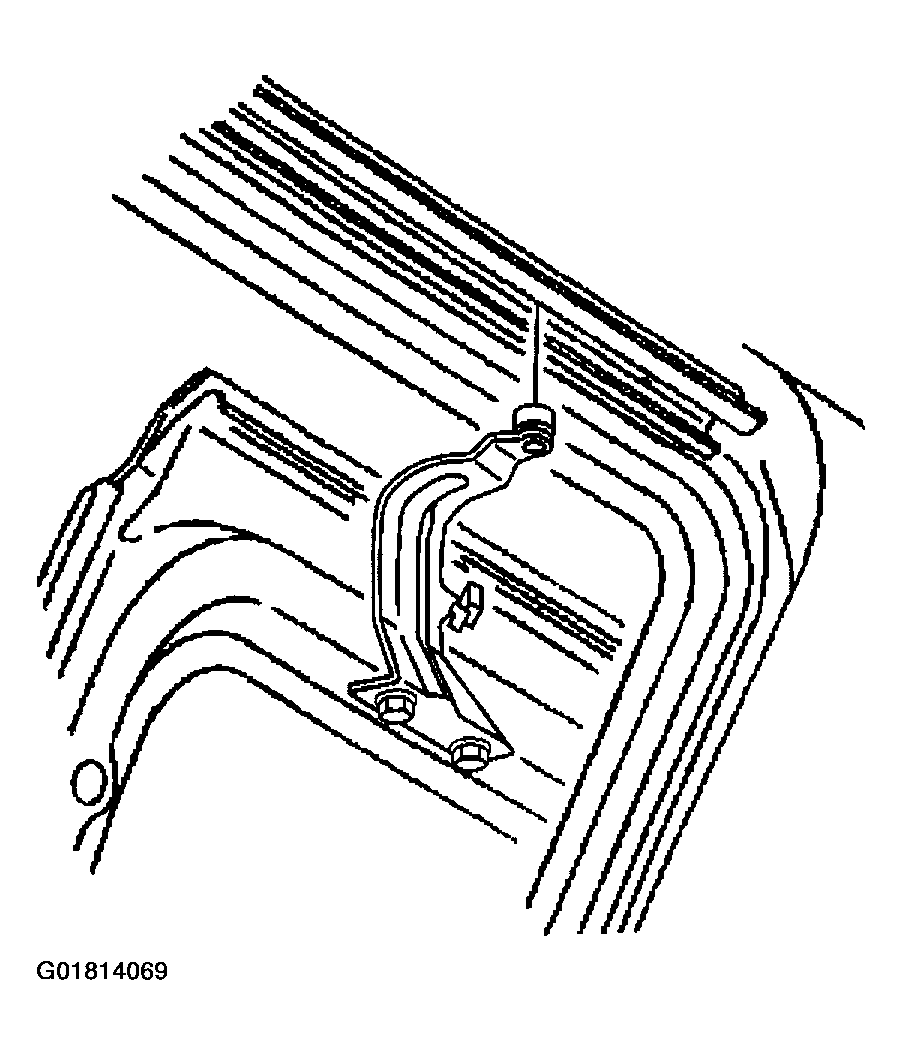

    Fig 1: Removing Sliding Door Upper Roller Bracket & Bolts
    G01814069Courtesy of GENERAL MOTORS CORP.
