Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door rear lock. Refer to Lock Replacement - Sliding Door Rear .
  2. Remove the detent switch retaining screw from the body side of the lock.
    Fig 1: Removing Detent Switch & Retaining Screw
    G01814111Courtesy of GENERAL MOTORS CORP.
  3. Pull the detent switch from the locating hole on the lock.
  4. Rotate and pull the detent switch arm from the lock arm.

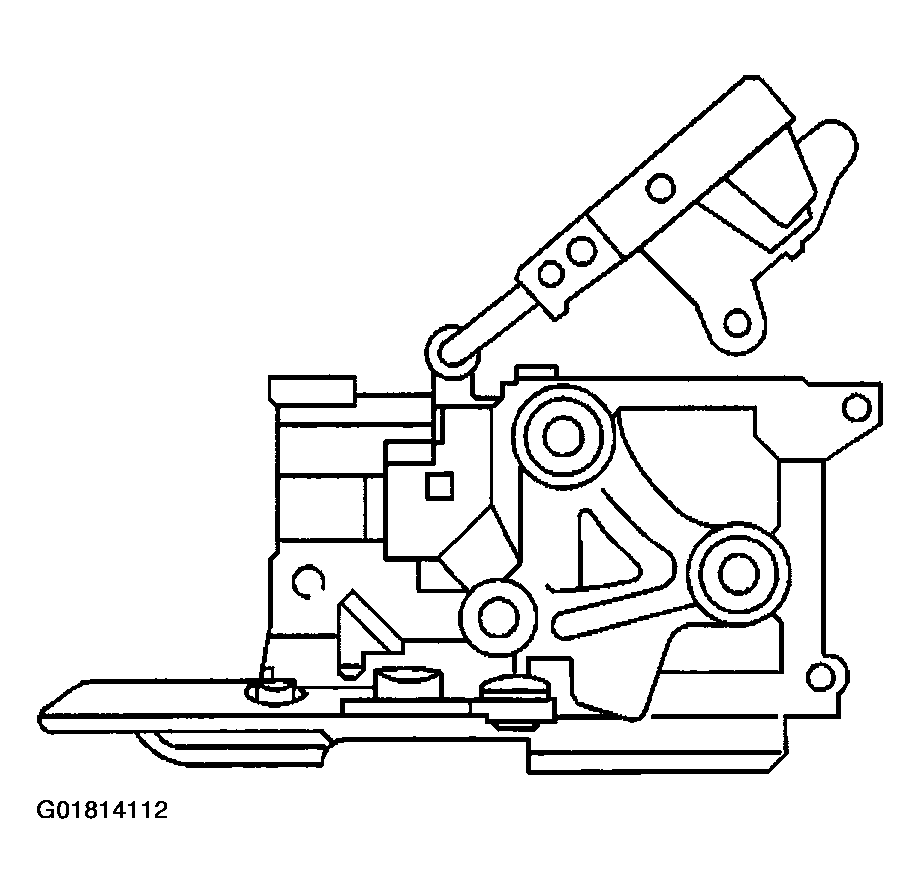

    Fig 2: Removing Detent Switch Arm
    G01814112Courtesy of GENERAL MOTORS CORP.
  5. Remove the detent switch from the lock.

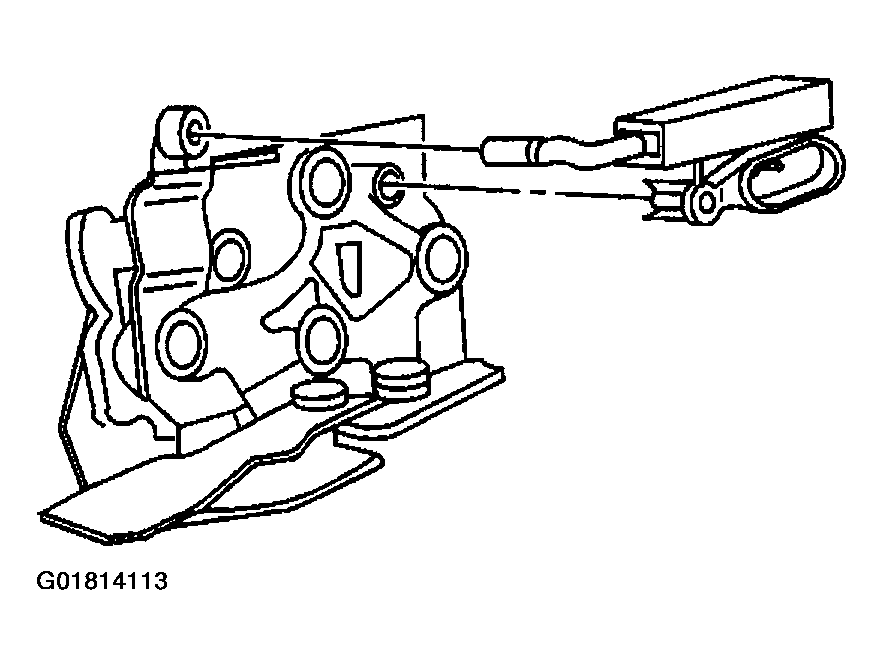

    Fig 3: Detent Switch & Lock
    G01814113Courtesy of GENERAL MOTORS CORP.
