Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn off the PSD from the roof console switch bank.
  2. Remove the PSD OPEN/CLOSE switch from the center pillar.
  3. Disconnect the electrical connector from the PSD OPEN/CLOSE switch.

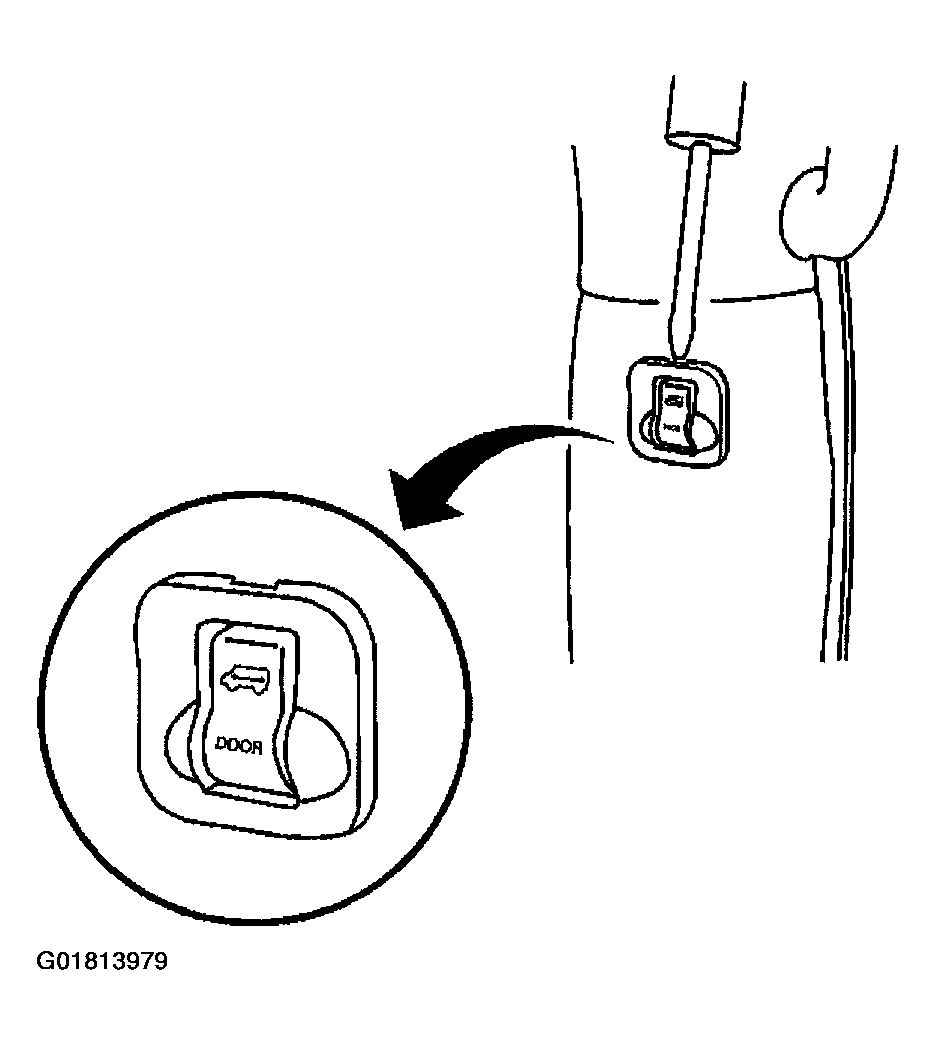

    Fig 1: Removing PSD OPEN/CLOSE Switch From Center Pillar
    G01813979Courtesy of GENERAL MOTORS CORP.
