Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the following procedure in order to remove the left power window switch.
    1. 1.1. Use a flat-bladed at the rear of the switch mounting plate in order to release the clip.
    2. 1.2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

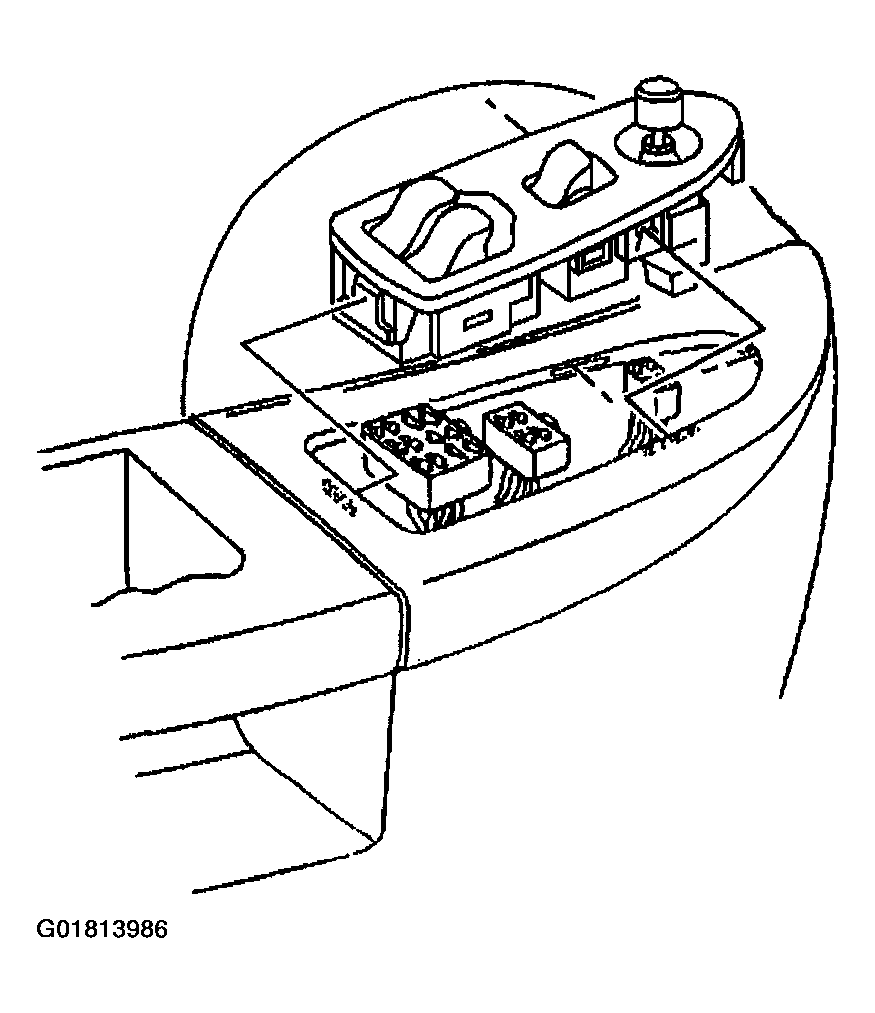

    Fig 1: Removing Switch Mounting Plate (Left Front)
    G01813986Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the power window switch from the switch mounting plate.

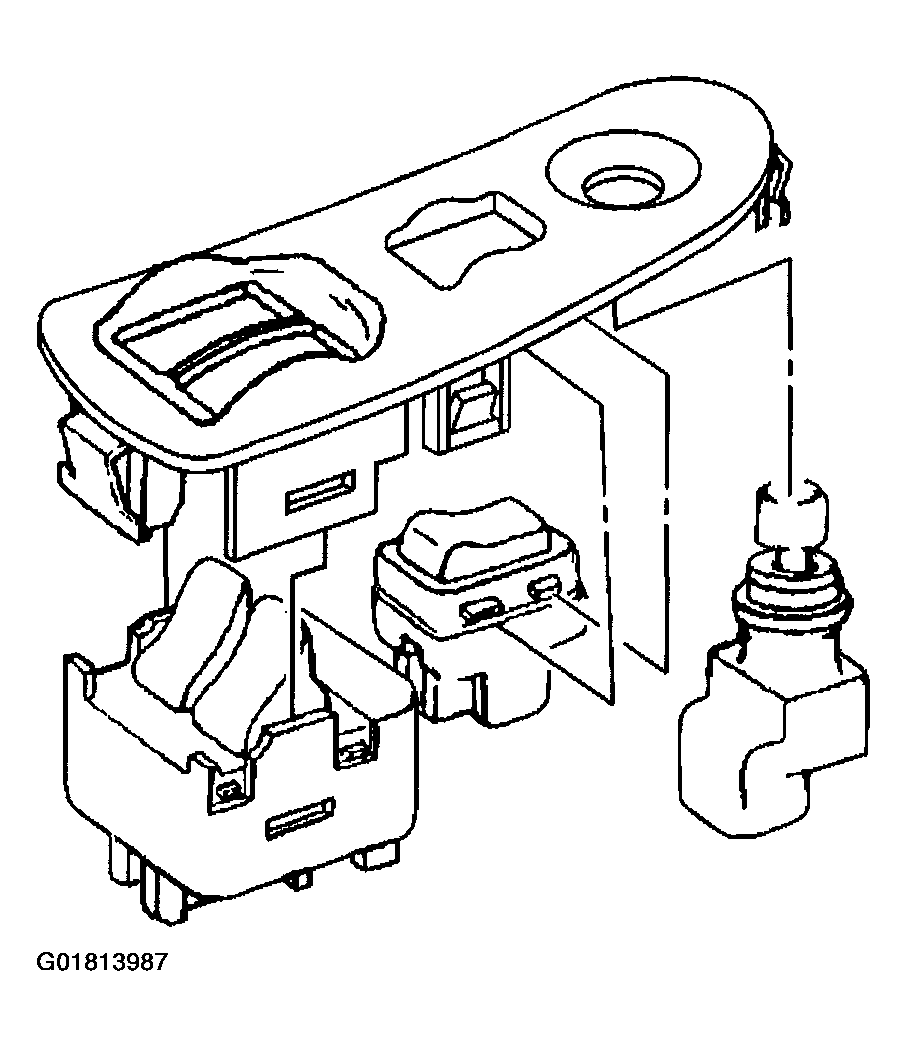

    Fig 2: Removing Power Window Switch (Left Front)
    G01813987Courtesy of GENERAL MOTORS CORP.
