Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
  2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  3. Disconnect the electrical connectors.
  4. Unsnap the power lock switch from the switch mounting plate.

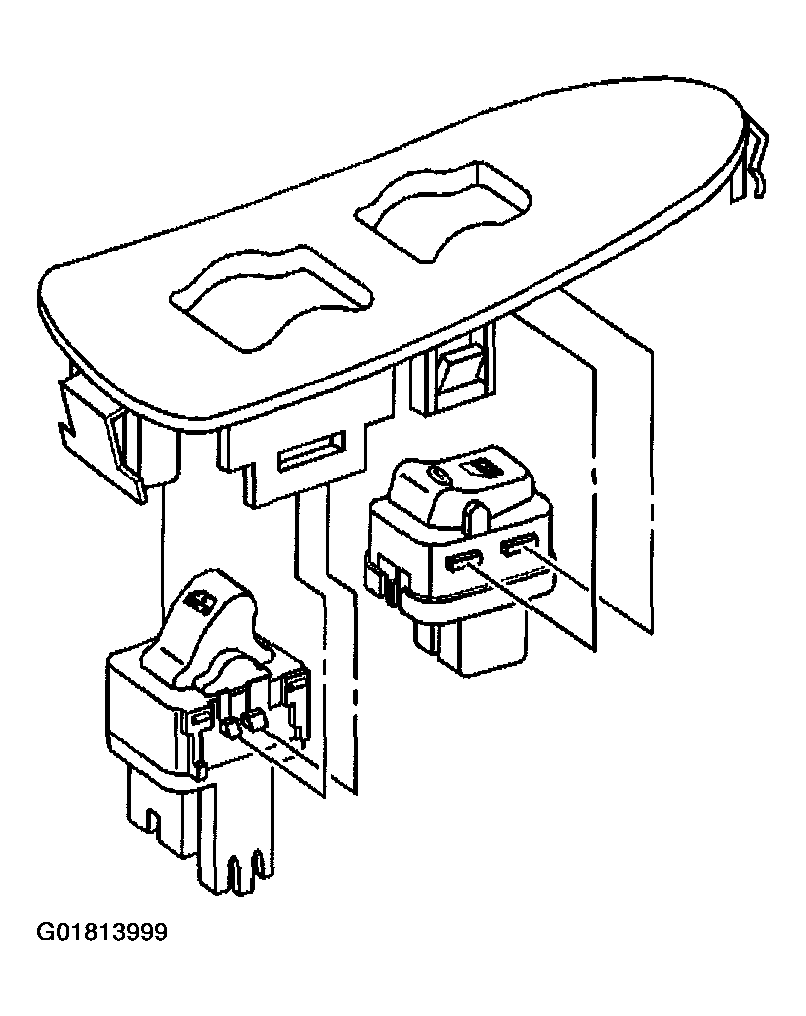

    Fig 1: Removing Power Window Switch (Front Right)
    G01813999Courtesy of GENERAL MOTORS CORP.
