Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside rearview mirror face. Refer to Mirror Face Replacement .
  2. Remove the outside rearview mirror. Refer to Mirror Replacement - Power (With Turn Signal Indicator)  or Mirror Replacement - Power (Without Turn Signal Indicator) .
  3. Remove the outside rearview mirror motor screws.
  4. Remove the outside rearview mirror motor from the mirror housing.

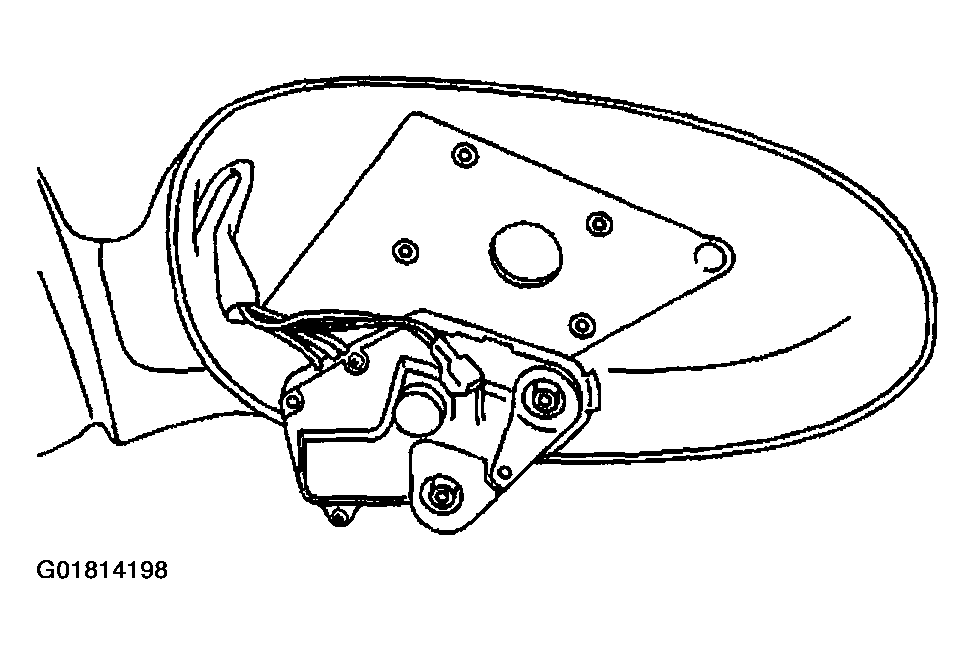

    Fig 1: Removing Outside Rearview Mirror Motor & Screws
    G01814198Courtesy of GENERAL MOTORS CORP.
